2.6.1

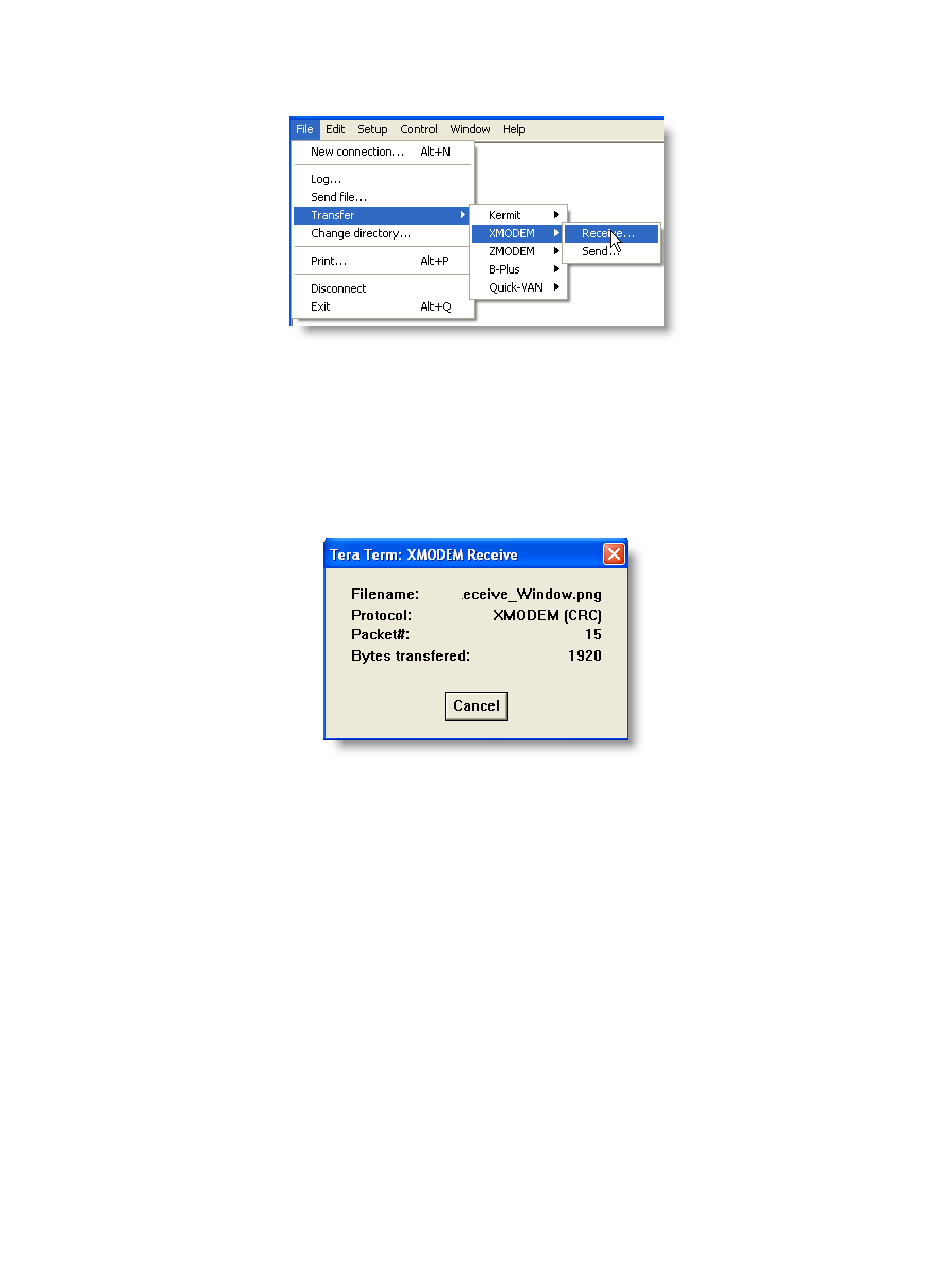

Tera Term Pro BMP File Transfer

To transfer a bitmap of the display using Tera Term Pro, use the same
steps as in Section 2.6. You should normally select File > Transfer
XMODEM > Receive.
1. A file Save window should appear next. Type in the name with a
bmp extension.
2. Make sure that CRC and Binary are selected and click Open.
3. The SaveAs window should disappear and a new download window
should appear.
4. Press the PRINT key and you should see values that indicate that
bytes are being transferred (up to about 9 kB) and disappear.
31
