1.4.6

Universal Test Plug Current Lead Set, 811AT

Assembled with our Universal Test Plug on one end and 1/4-inch spade

lug on the other; compatible with ABB/Westinghouse, Superior, Meter

Devices and States series test jacks. Materials and assembly are similar to

the 816AT Three-Phase Spade Lug, Current Lead Set.

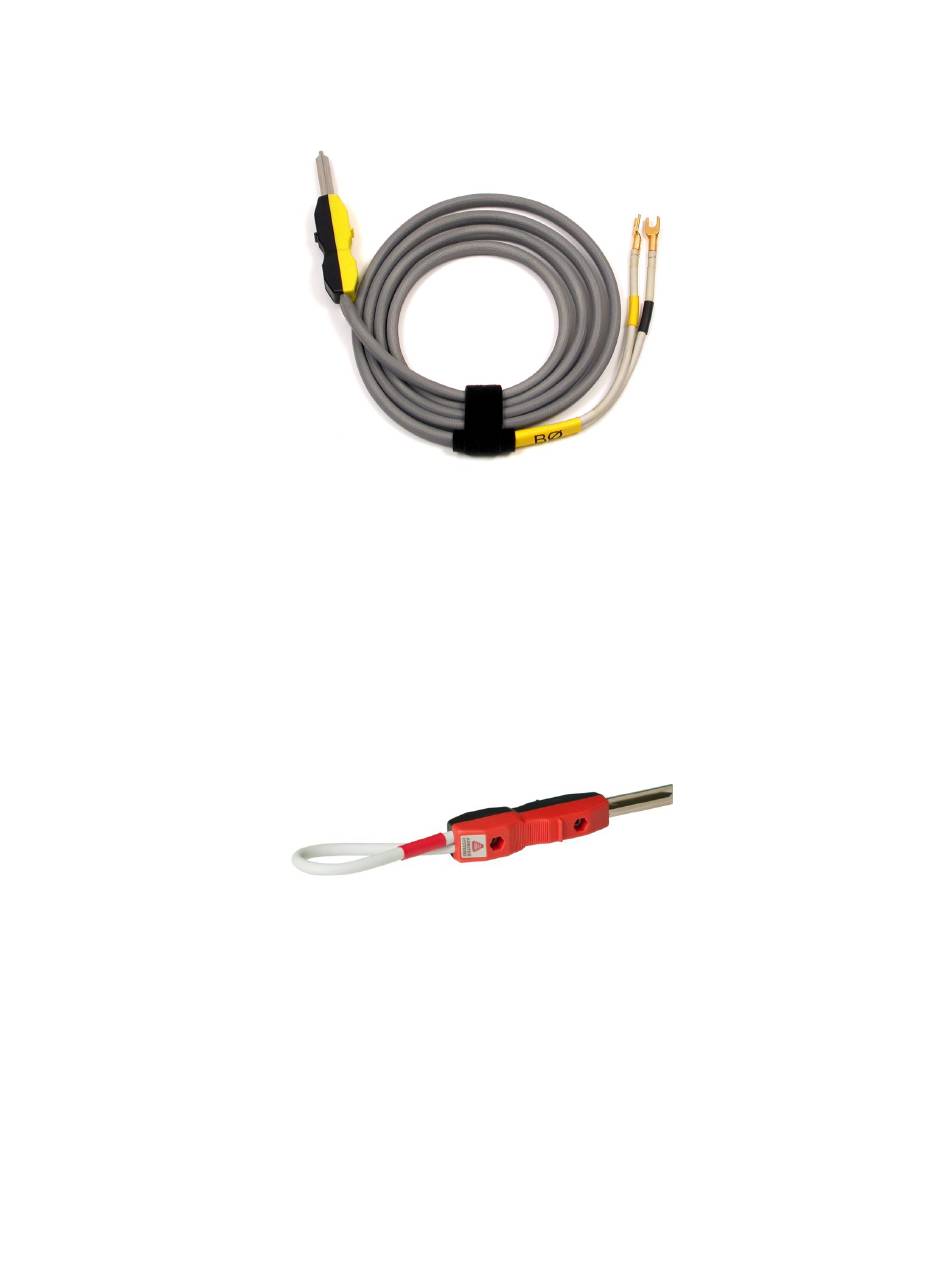

Figure 1.4: 811AT (B-Phase) Universal Test Plug Current Lead Set

1.4.7

Identical to the 811AT, the 811CT is constructed with silicone-insulated

lead wire, instead of Santoprene-insulated lead wire.

1.4.8

Designed to allow indirect current measurement using a clamp-on current

probe with the universal test plug adapter. Clamp the current probe over

a loop of wire at the end of the test plug. AS0079001, red; AS0079002,

yellow; AS0079003, blue; AS0079030, three phase – red, yellow, blue.
