7.6.1

User Triggers

1. Select "Users Triggers" in the left panel of the Configure Trigger
Parameters window.
2. Select an unused trigger (by number) by choosing the drop-down
arrow under the column named "Input Signal" and adjacent to the
desired trigger.
3. Begin choosing and filling in parameter values. Note that not all
parameter fields are required (e.g. Reference & Dependency). See
Section 7.2.5 for details on each parameter selection.
4. Indented from User Triggers are Schulz-Laios settings. See Sec-
tion 9.26 for more detail on Schulz-Laios filters.

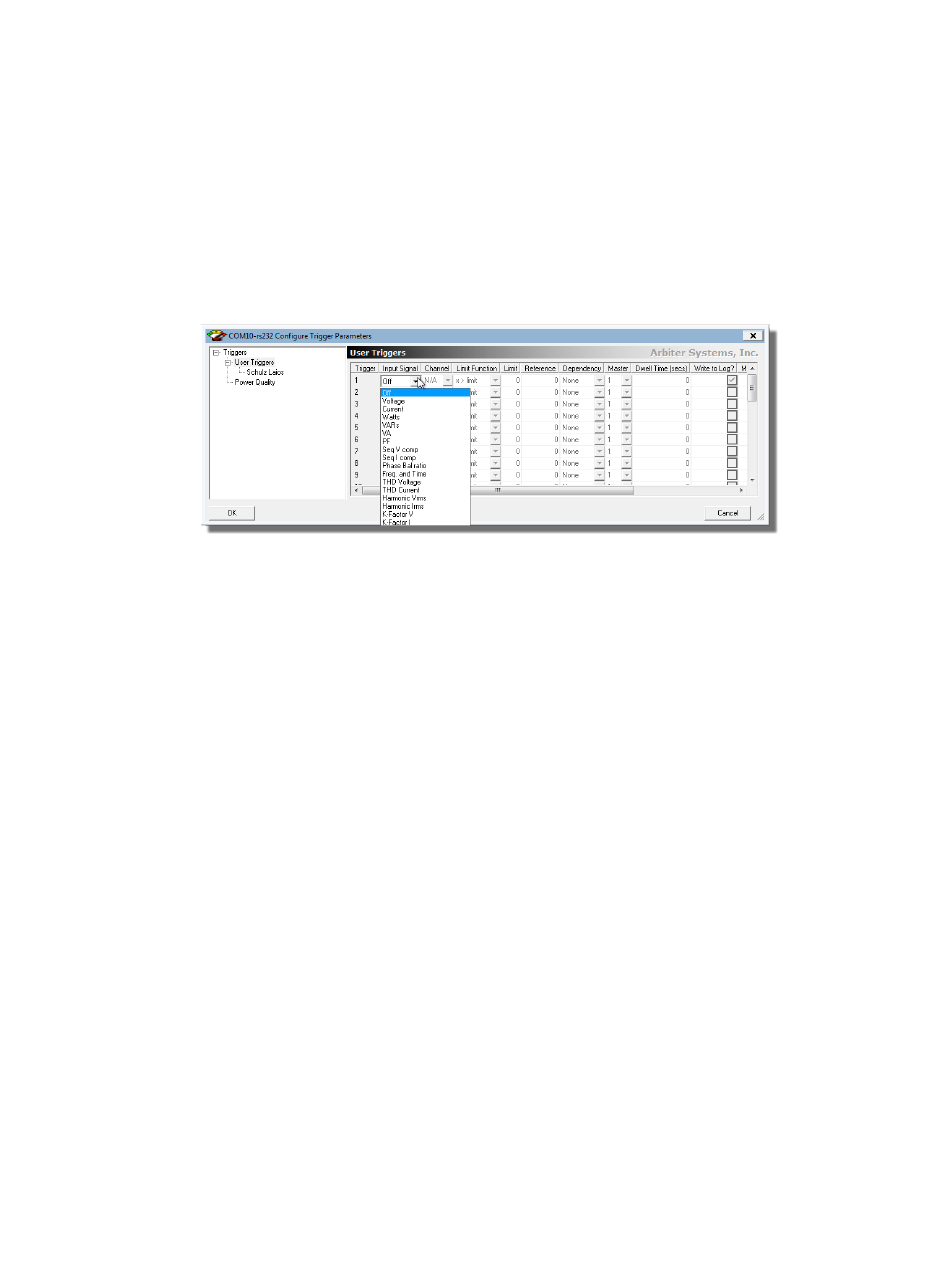

Figure 7.18: User Trigger Setup using PSCSV
