General Relay Setup Procedure

1. Set up the Trigger (either User or Power Quality ) on the 933A or
by using PSCSV software.
2. Set up the desired relay by specifying the trigger in step 1, as seen

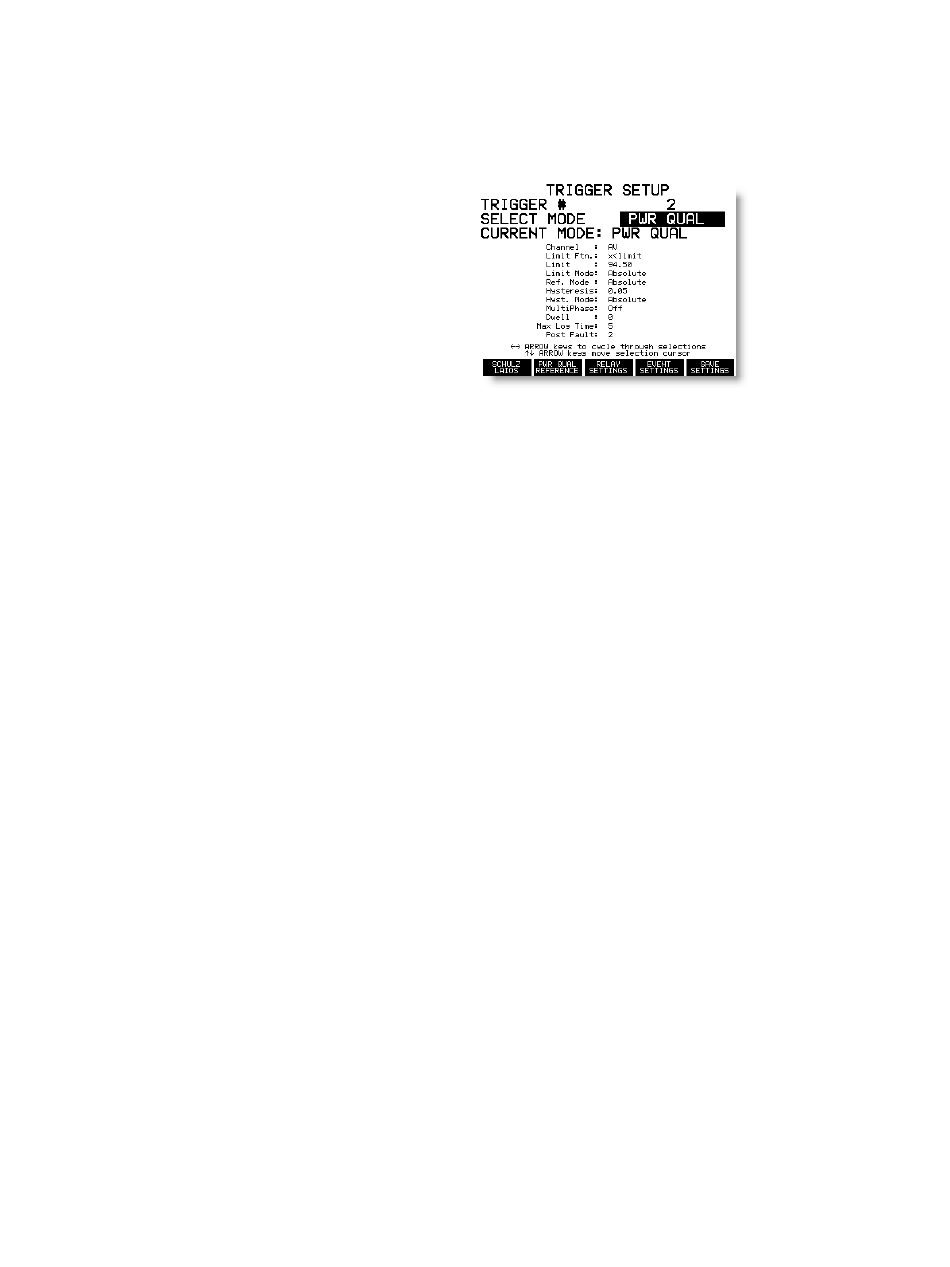

in the RELAY SETUP screen in Figure 7.16.
Figure 7.17: Relay-
Trigger Reference
7.6 Configuring Triggers with PSCSV
Use PSCSV for the 933 to configure both User and Power Quality Triggers.
Configure both user and power quality triggers from the same location:
Configure Trigger Parameters.
1. Open a connection between the Model 933A and your computer. For
RS-232 and USB connections see Section 6.2.4.
2. Open the window by clicking the Configure Trigger Parameters but-
ton, or by selecting Connection > Configure > Trigger Parameters.
3. Once the Configure Triggers window is open, in the left panel select
the type of trigger you want to use, either User or Power Quality.
4. There are 32 possible triggers you can set. For each one you intend
to use, selecting any item that best defines what you are measuring.
5. See Sections 7.2.5 (User Triggers) and 7.3.2 (Power Quality Triggers)
for definitions of the various parameters in the user triggers and
power quality triggers configuration panel.
