6.3.4

Harmonic Summary Data

Harmonic Summary Data includes RMS THD, RMS K, THD F, THD T
and K Factor for all of the configured voltages and currents. All harmonic
summary values are delivered to the open window.

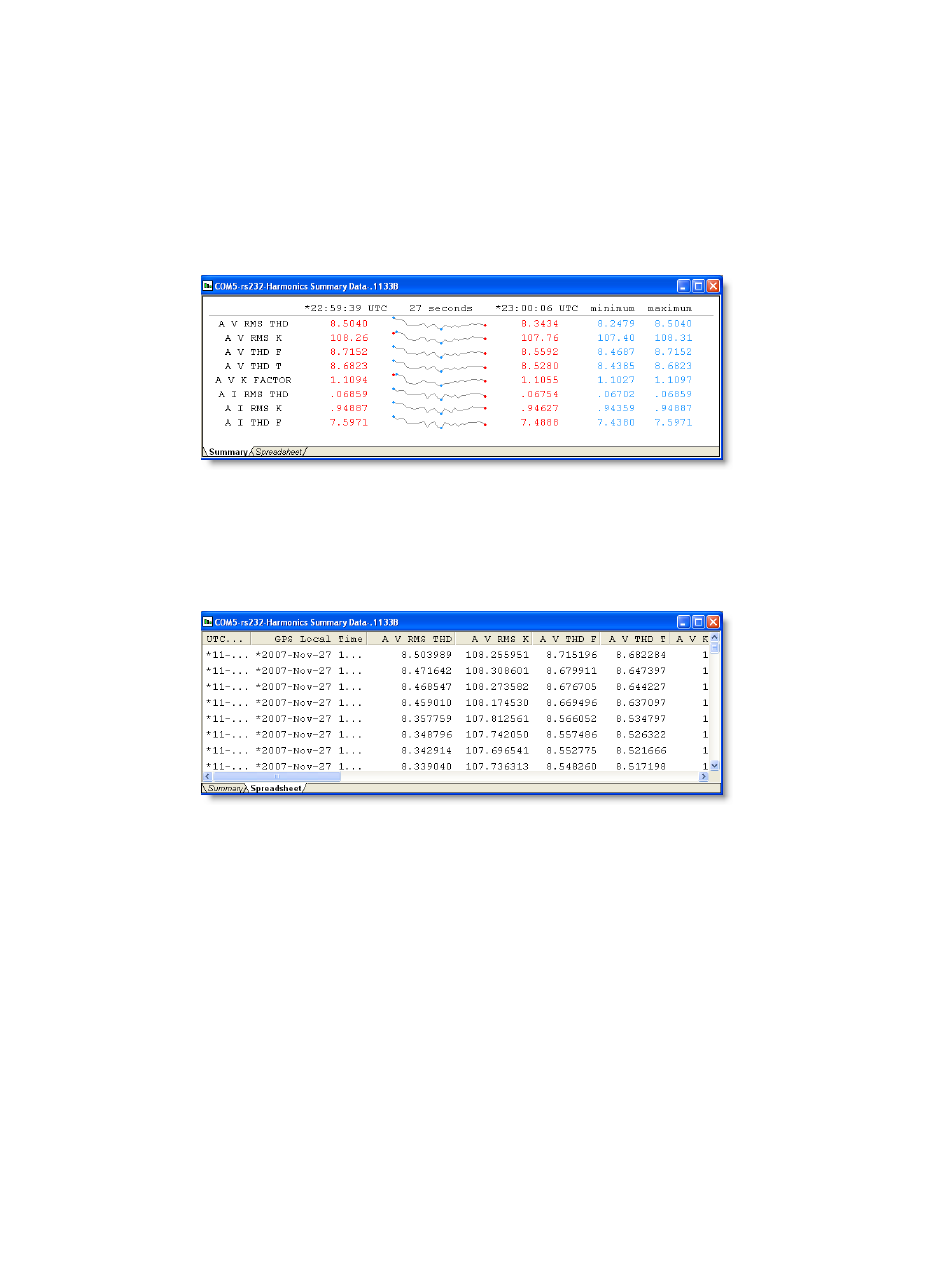

Summary Data Screen
Summary view presents a graph in real time over a one-minute interval
with the beginning and ending measurements and overall minimums and
maximums. Fields include the named parameters, using the Filter Data
tool.
Spreadsheet Data Screen
In spreadsheet format, tabular data includes times (UTC and Local), dates
and one-second, measured parameters as filtered using the Filter Data tool.
94
