3.2.3.1 Ground the router

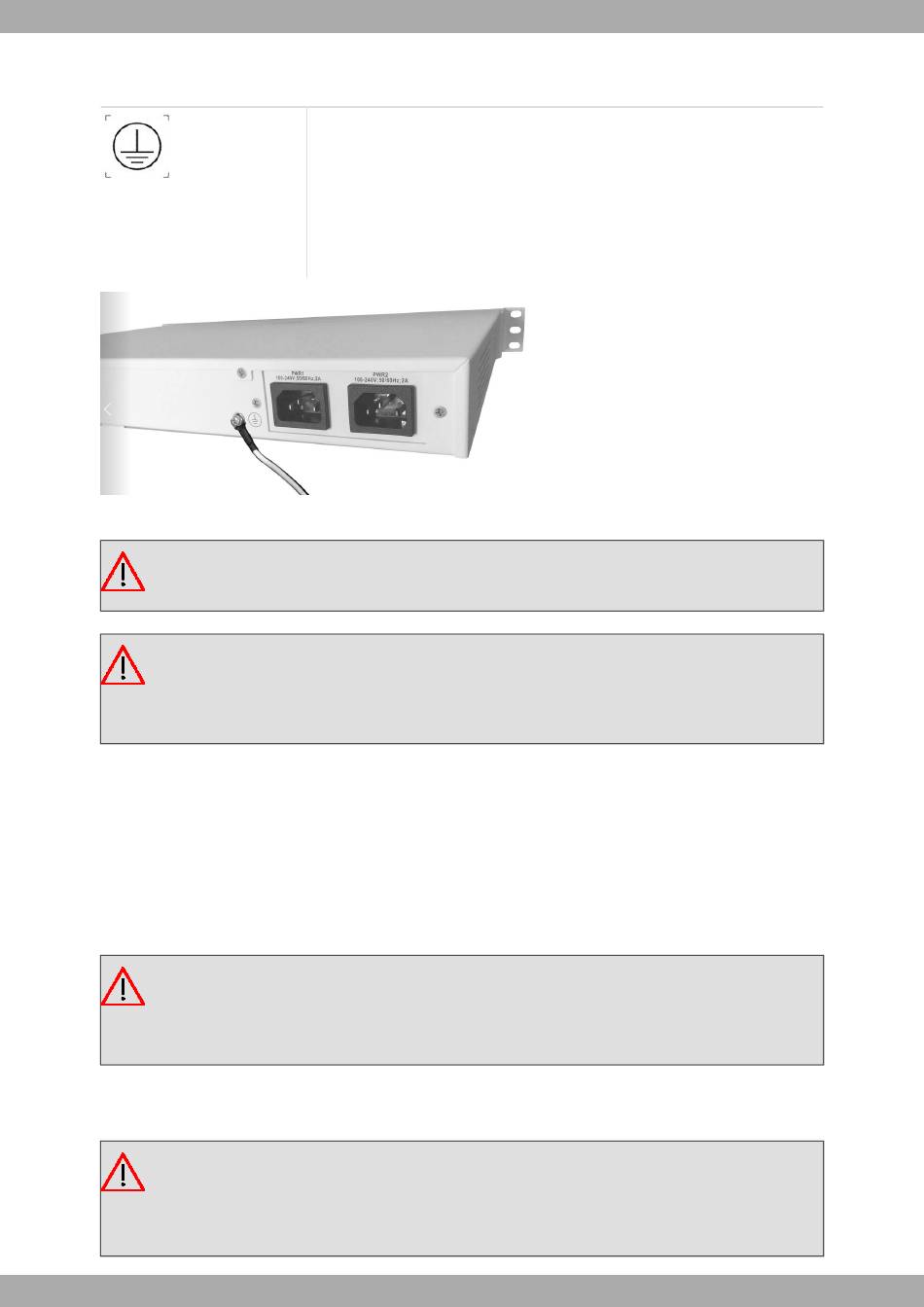

Ground connection
Fig. 10:
Warning
The earth connection must not be removed unless all supply connections have been disconnected.
Warning
The device must be installed in a restricted-access location. Its protective earthing terminal on the rear
side of the chassis must be permanently connected to earth to adequately ground the chassis and pro-
tect the operator from electrical hazards.

3.3 Power source

The Atlas-840 router is powered through one or two internal AC/DC sources, depending on the model. The Atlas-
840 has one or two power inputs and one or two power supplies that operate simultaneously. It can operate one, the
other, or both at once. If the Atlas-840 is powered by the two power supplies and one of them fails, the other acts as
a backup.
There is no on/off switch or fuse. The power supply information is printed on the rear side of the device.
Warning
Safety regulations require that the location where the equipment is installed must incorporate a discon-
nection device (thermal circuit breaker), that is duly approved and whose nominal current is equal to or
less than 10 A.
To avoid electric shocks, residual current circulation, and other unwanted effects that also affect communications, the
following is recommended:
Warning
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
We recommend connecting all data devices to the same power source regardless of whether the work-
Teldat Edge Router Atlas-840
Ensure the rack on which the Atlas-840 is to be mounted is properly grounded in
compliance with ETSI ETS 300 253. Verify that there is a good electrical connec-
tion to the grounding point on the rack (no paint or isolation surface treatment).
Attach an eye ring (not provided) to a #18 AWG minimum grounding wire (not
provided), and connect it to the grounding point on the rear panel of the Atlas-840
using a 3.5 mm screw and washer. Then connect the other end of the wire to the
rack ground.
3 Components and Power Supply
9
