3 Components and Power Supply

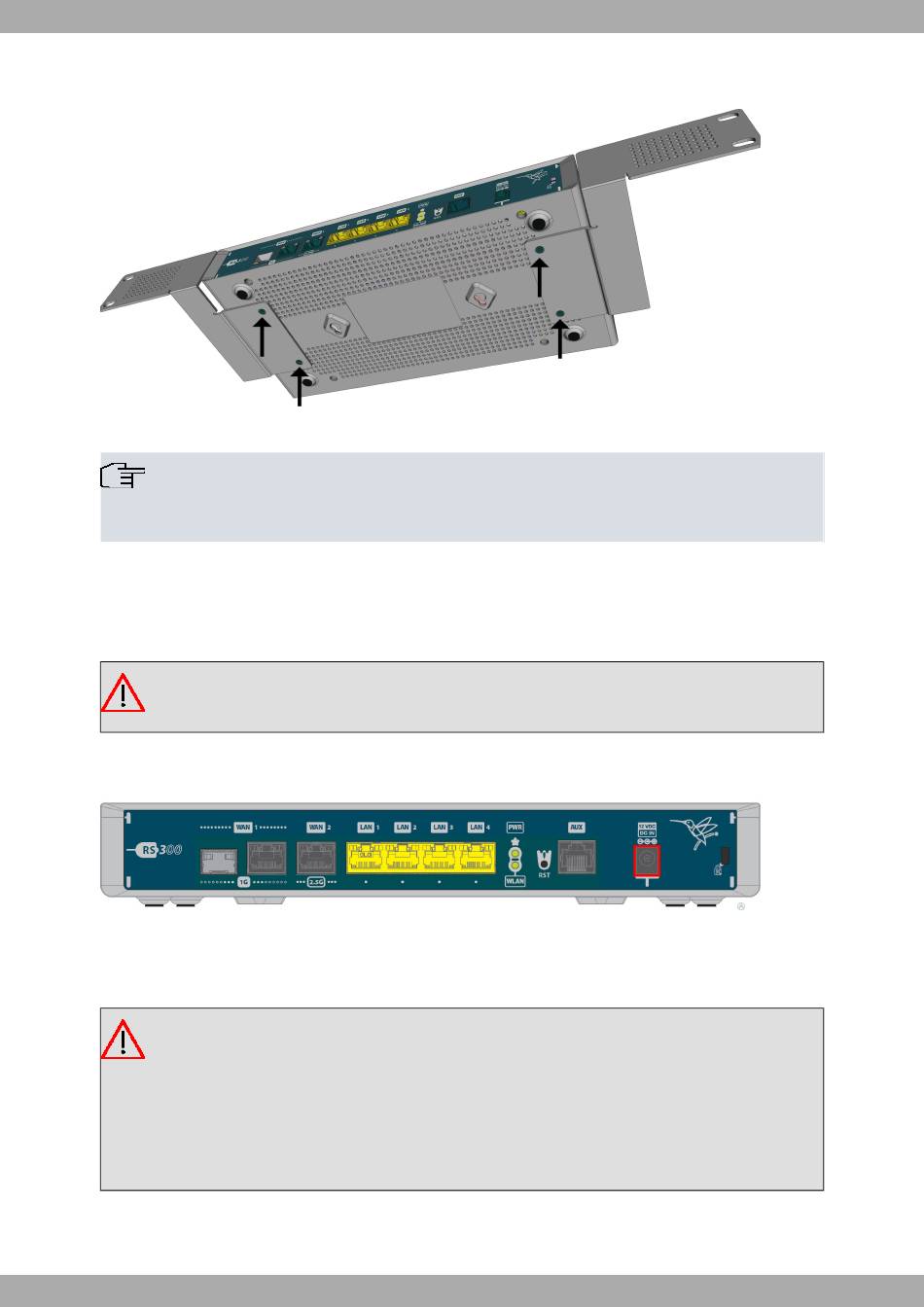

Both strips are attached to the device by means of 4 screws, as shown in the following figure:
Rack anchor bolts
Fig. 12:
Note
The device has been designed to allow brackets to be attached to the front or rear of the router
chassis.

3.4 Power source

The RS300 router is powered through an external AC/DC power adapter.
Warning
The equipment must be used with the power supply provided by the manufacturer.
To power the router, plug the power supply into the mains supply and the DC connector.
Fig. 13: DC Connector
To avoid electric shocks, residual current circulation, and other unwanted effects that also affect communications, the
following is recommended:
Warning
All interconnected communication devices should be plugged into THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
We recommend connecting all data devices to the same power source regardless of whether the work-
place has an uninterrupted power supply system (UPS), a regulated supply or is independent of other
power supplies (such as lighting, etc.). This will help to prevent malfunctions and premature aging of
the drivers and other components.
