Getting Started
The 20-COMM-C ControlNet adapter is an embedded communication
option for any one drive in the PowerFlex family. It can also be used with
other Allen-Bradley products implementing DPI™.
Topic
Components
Features
Compatible Products
Required Equipment
Components

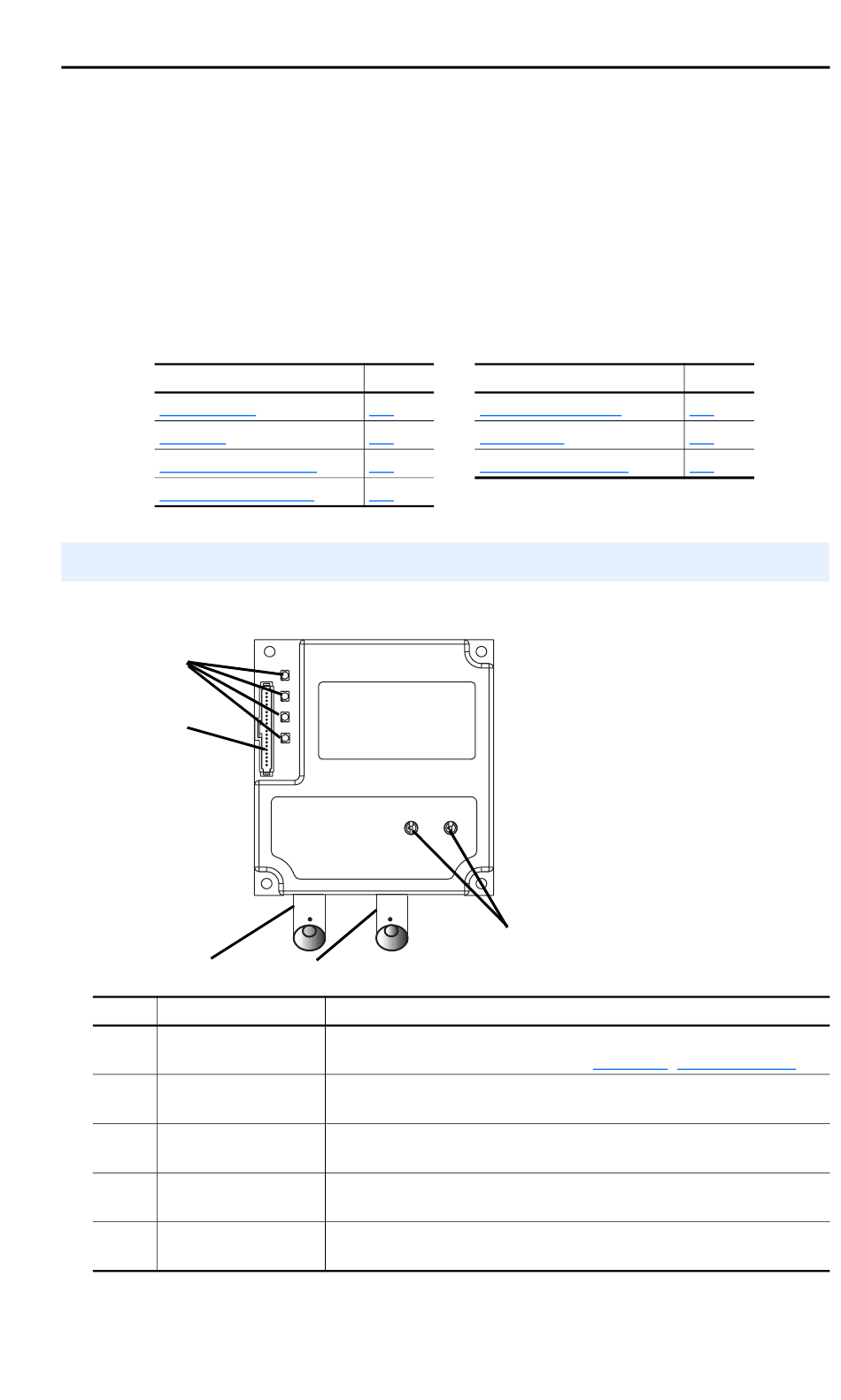

Figure 1.1 Components of the Adapter
–
—
˜
#
Part
–
Status Indicators
—
DPI Connector
˜
Channel A BNC
Receptacle
™
Channel B BNC
Receptacle
š
ControlNet Node
Address Switches
Page
1-1
1-2
1-2
1-3
™
Description
Four LEDs that indicate the status of the ControlNet channel(s),
DPI and the module itself. Refer to
A 20-pin, single-row shrouded male header. An internal interface
cable is connected to this connector and a connector on the drive.
Channel "A" BNC connection for the ControlNet cable.
Channel "B" BNC is an optional connection for the redundant
ControlNet cable.
Switches for setting the node address.
Topic
Safety Precautions
Quick Start
Modes of Operation
š
Chapter
1
Chapter
Page
1-4
1-5
1-6
7, Troubleshooting.
