RSNetWorx Configuration for PLC-5C Applications
3. When the network browse is complete, a graphical view of the
network is displayed. In this example
network consists of a PLC-5C/40C controller, two PowerFlex 70
drives and a PC using a 1784-PCC ControlNet adapter. The
symbol indicates the device shown on the network does not exist in
the configuration file, but it was found on the network. Double-click
on the PLC-5C/40C icon.

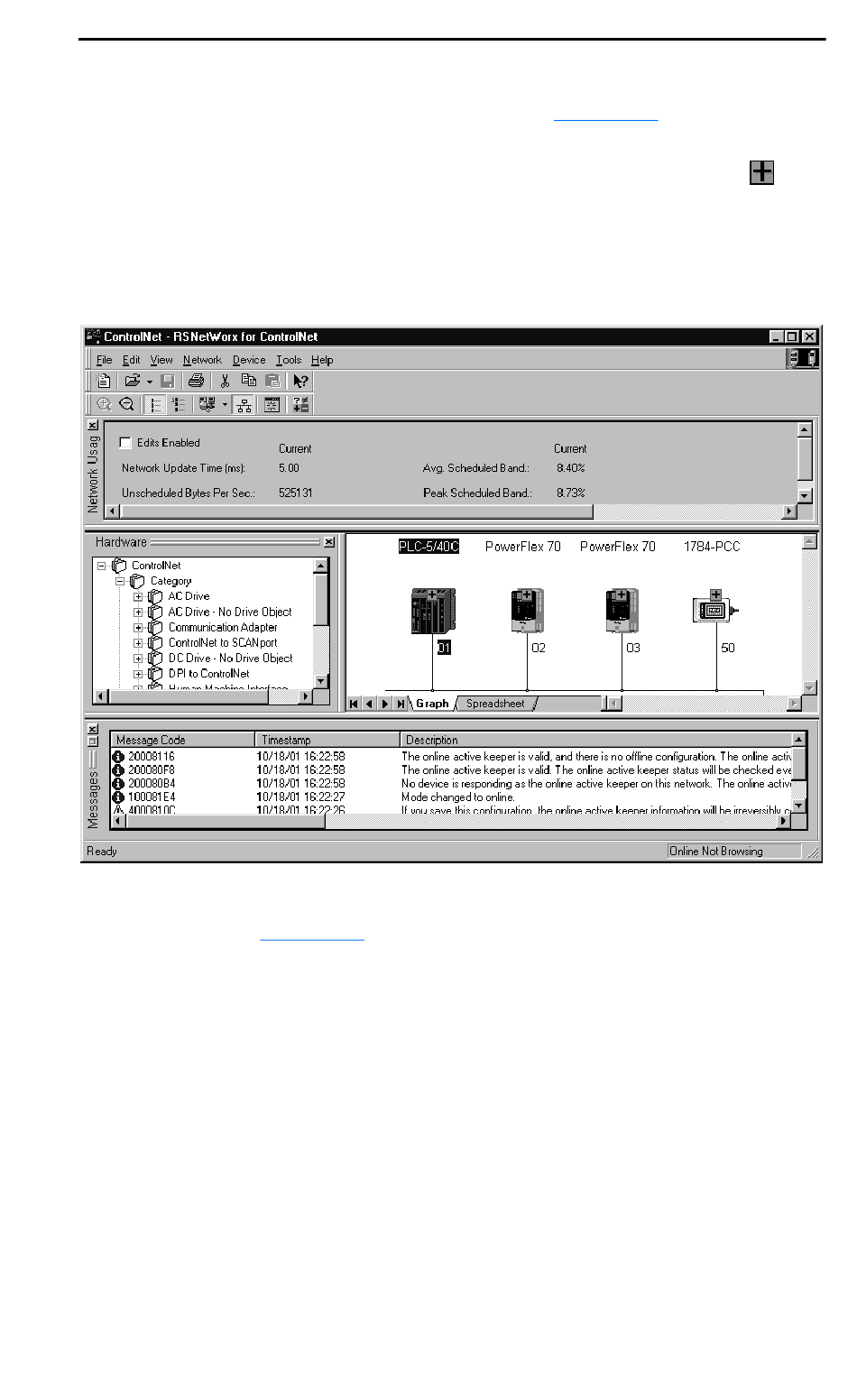

Figure 4.13 Sample ControlNet Configuration Screen
4. The ControlNet configuration box displays information about each
node (Figure 4.14). Click OK.
(Figure 4.13), the ControlNet
