Verifying Network Properties - Allen-Bradley PowerFlex 20-comm-c FRN 1. Series User Manual

RSNetWorx Configuration for PLC-5C Applications

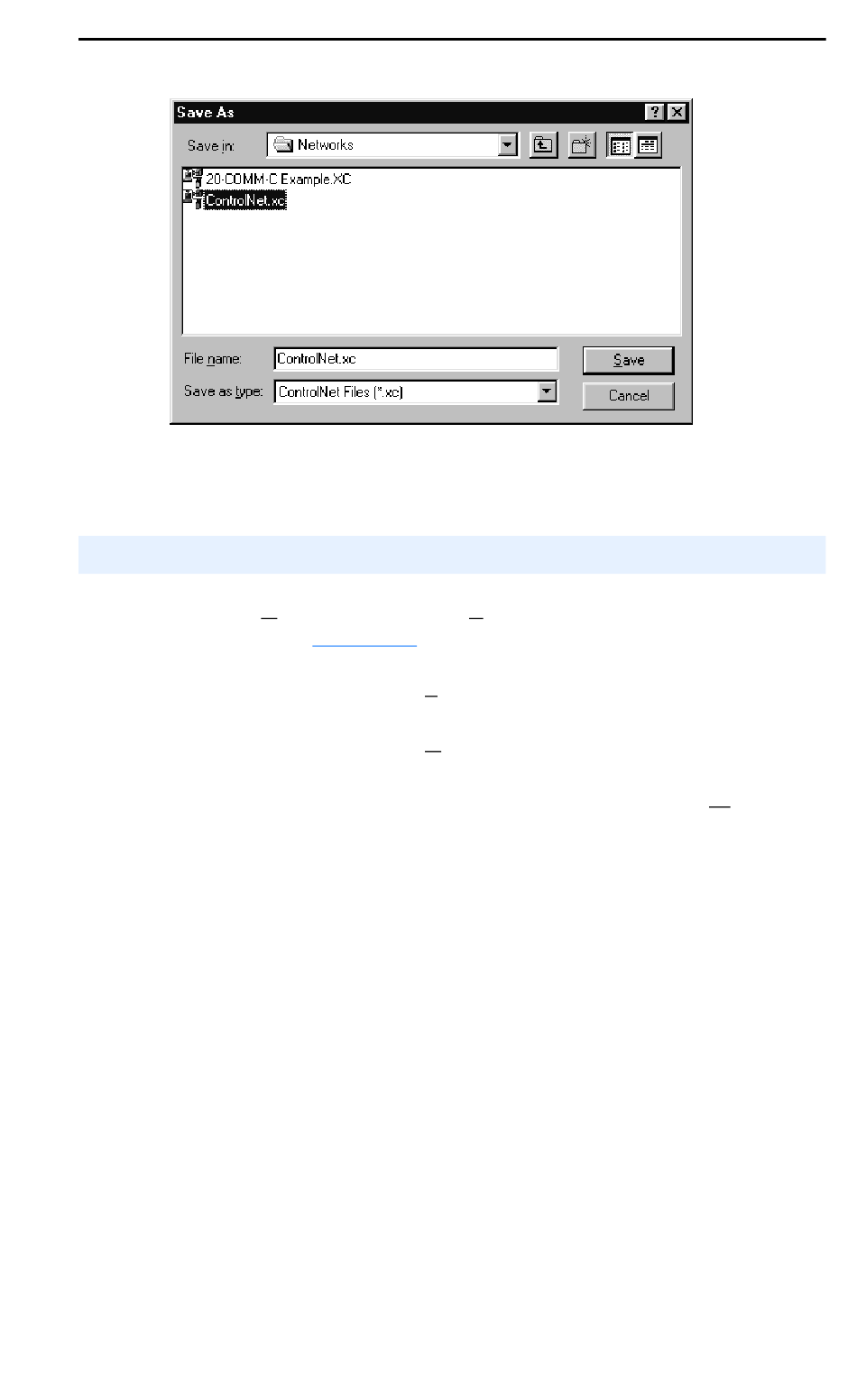

Figure 4.26 Save As File Box

Verifying Network Properties

1. In the Network menu, select Properties to display the ControlNet
dialog box (Figure
• The number in the Max Scheduled Address field is higher than or
equal to the highest node number that will perform I/O messaging.
• The number in the Max Unscheduled Address field is higher than
or equal to the highest node number on the network.
• The correct type of media redundancy is selected in the Media
Redundancy field.
4.27). Verify:
4-17
