Connecting the Adapter to the Network

ATTENTION: Risk of injury or death exists. The PowerFlex drive
may contain high voltages that can cause injury or death. Remove
!
power from the drive, and then verify power has been discharged before
installing or removing an adapter.
1. Remove power from the drive.
2. Use static control precautions.
3. Route the ControlNet cable through the bottom of the PowerFlex
drive. (See
4. Connect the ControlNet cable to the adapter.
A 1786-TPS (straight tap) is recommended.
See Figure 2.4

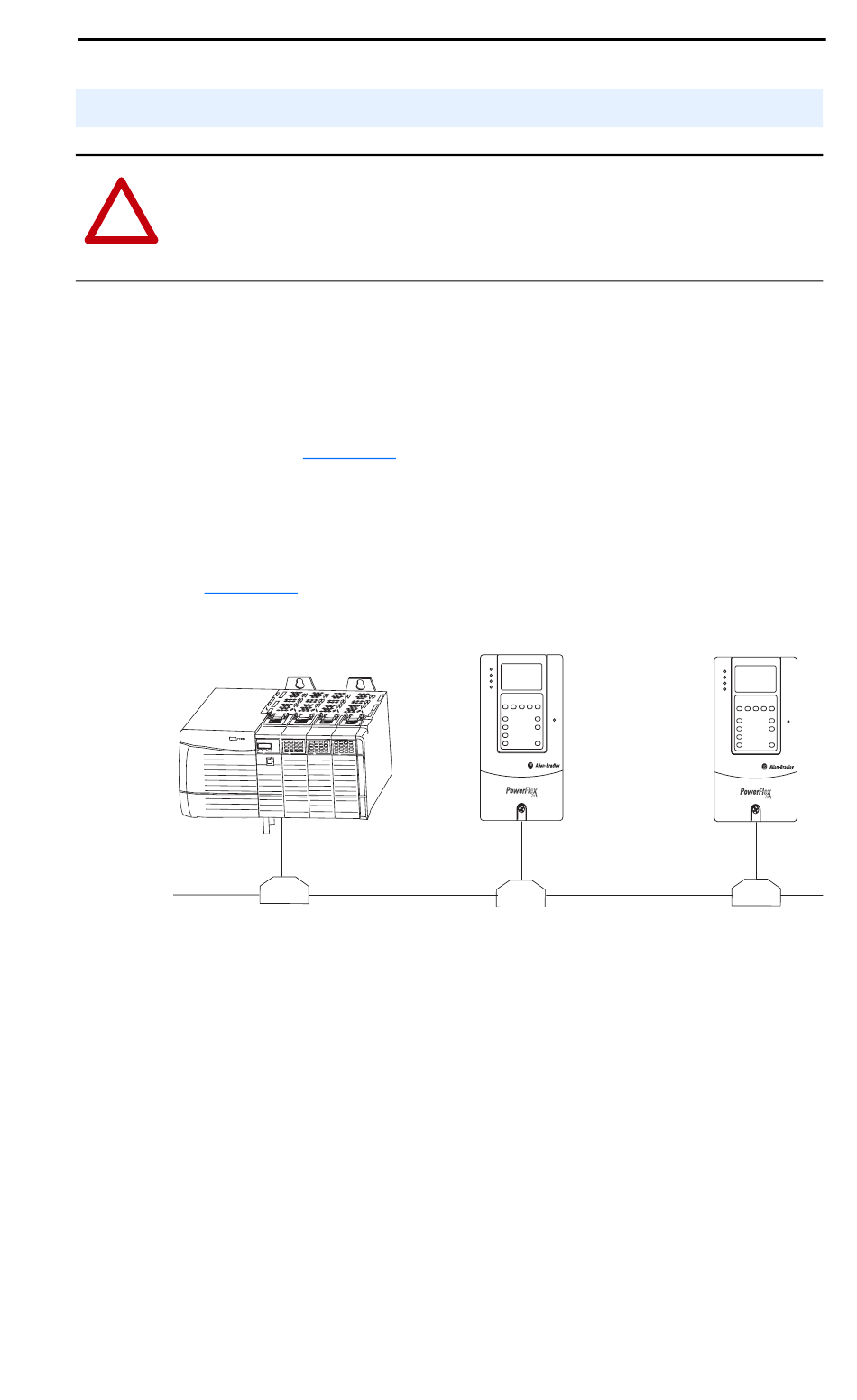

Figure 2.4 Example Network Wiring
Figure 2.3.)
for an explanation of wiring a ControlNet network.
Installing the Adapter 2-5
