6-2 ControlLogix Applications

Configuring a ControlLogix CNB Scanner

Configuring a ControlLogix CNB scanner, and the network, is mainly
done using RSLogix 5000 software (Figure 6.1). RSNetWorx is still
required, but only at the end of the configuration process. Start the
RSLogix 5000 software to begin the configuration process.

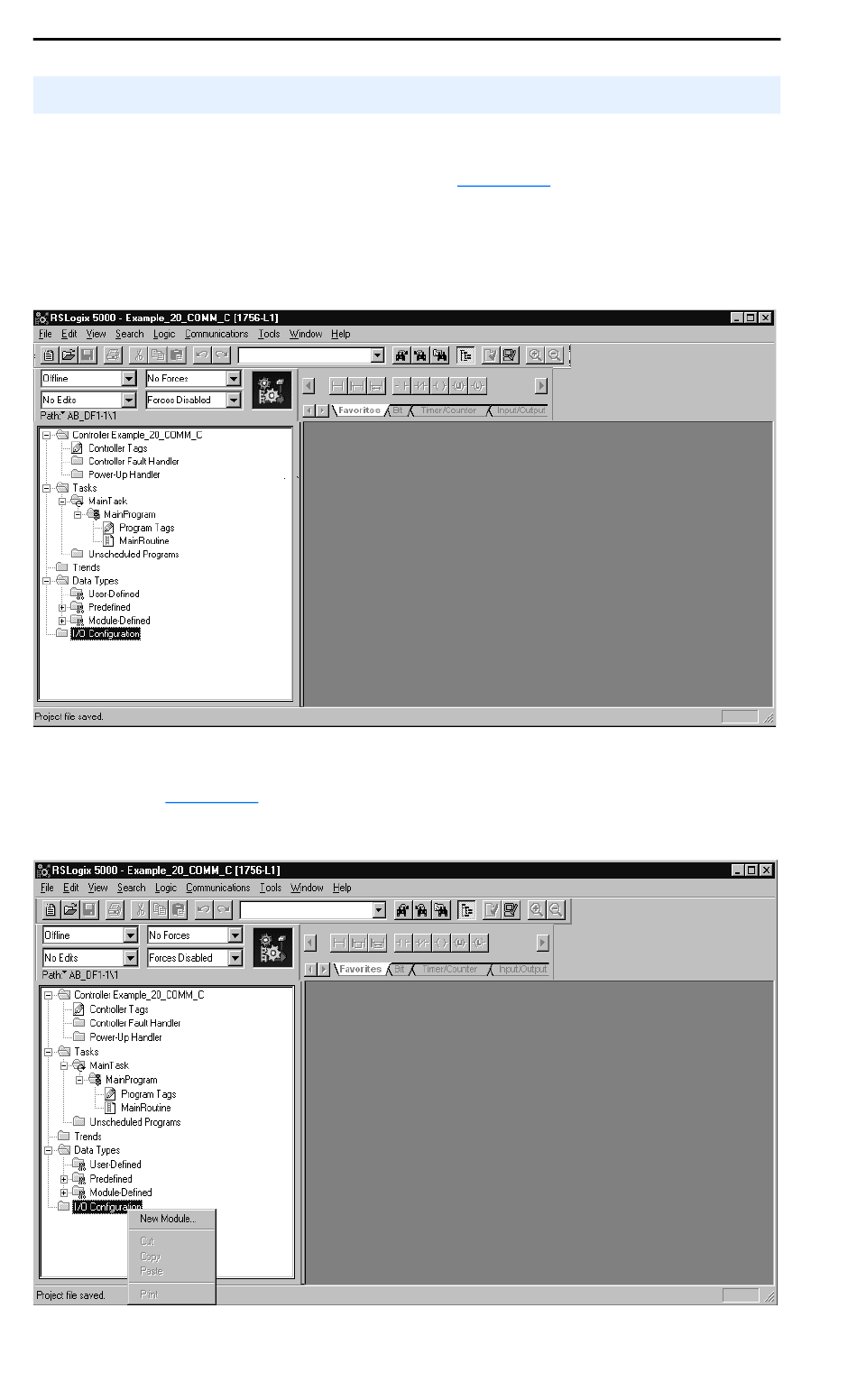

Figure 6.1 RSLogix 5000: I/O Configuration Selection
1. Right-click on the I/O Configuration folder and select New Module
(Figure 6.2).
Figure 6.2 RSLogix 5000: New Module Selection
