RSNetWorx Configuration for PLC-5C Applications
The various views can be displayed or closed by using the View menu.
In
Figure 4.10
the Network Usage, Hardware and Graphic views are
displayed while the Message and Favorites views are closed.
1. Click on the on-line icon

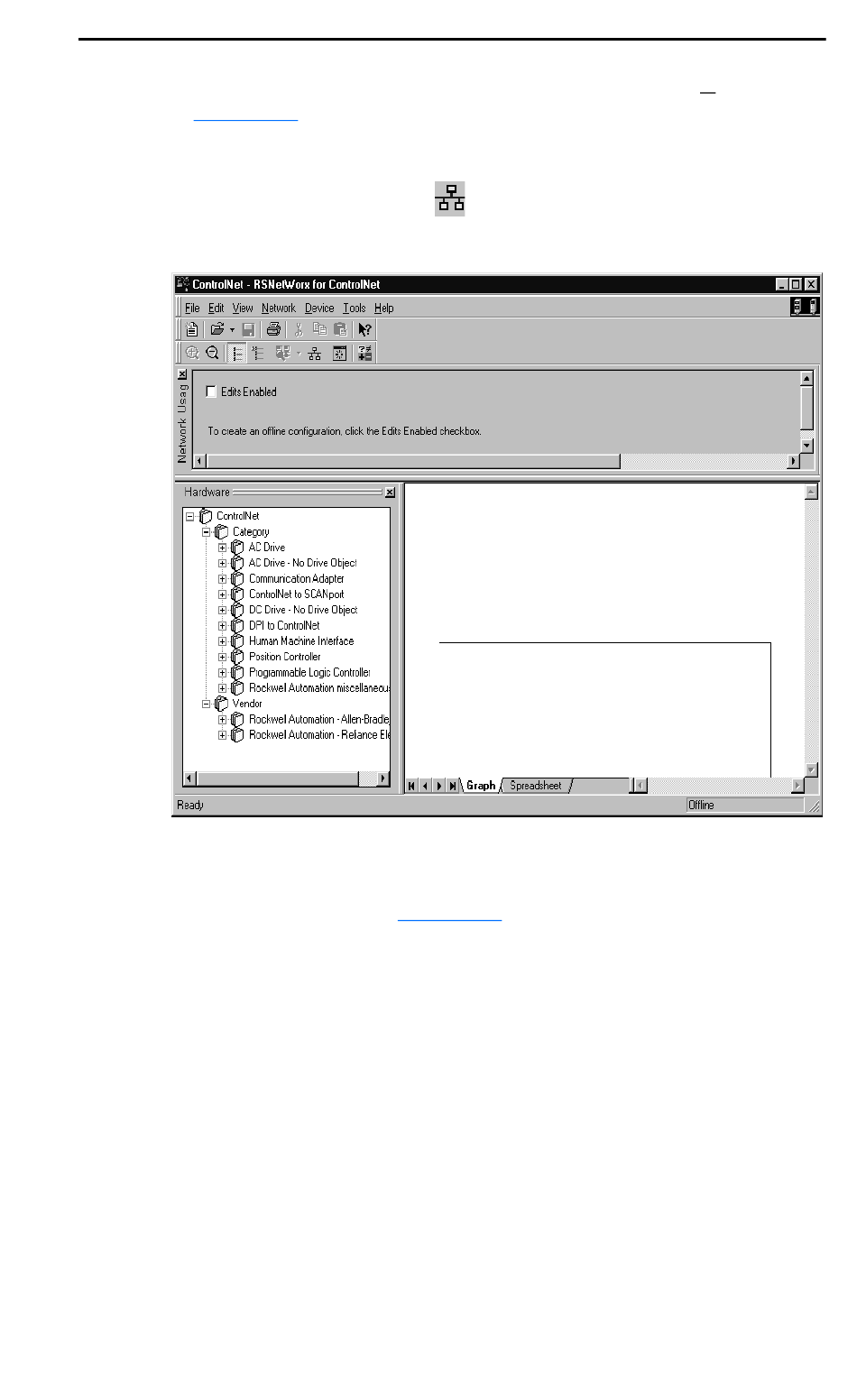

Figure 4.10 RSNetWorx for ControlNet Screen
2. Select the ControlNet network access method and click OK. In this
example, RSNetWorx will use the 1784-PCC to access the
ControlNet network
to browse the network.
(Figure
4.11).
4-7
