Using The Powerflex Him - Allen-Bradley PowerFlex 20-comm-c FRN 1. Series User Manual

3-2 Configuring the Adapter

Using the PowerFlex HIM

If your drive has either an LED or LCD HIM (Human Interface Module),
access parameters in the adapter as follows:
Using an LED HIM
Step
1. Press the ALT and then Sel
(Device) to display the Device
Screen.
2. Press the Up Arrow or Down
Arrow to scroll to the ControlNet
adapter. Letters represent files in
the drive, and numbers represent
ports. The adapter is usually
connected to port 5.
3. Press the Enter key to enter your
selection.
4. Edit the parameters using the
same techniques that you use to
edit drive parameters.
Using an LCD HIM
Step
1. In the main menu, press the Up
Arrow or Down Arrow to scroll to
Device Select.
2. Press Enter to enter your
selection.
3. Press the Up Arrow or Down
Arrow to scroll to the ControlNet
(20-COMM-C) adapter.
4. Press Enter to select the
ControlNet adapter. The main
menu for the adapter is
displayed.
5. Edit the parameters using the
same techniques that you use to
edit drive parameters.

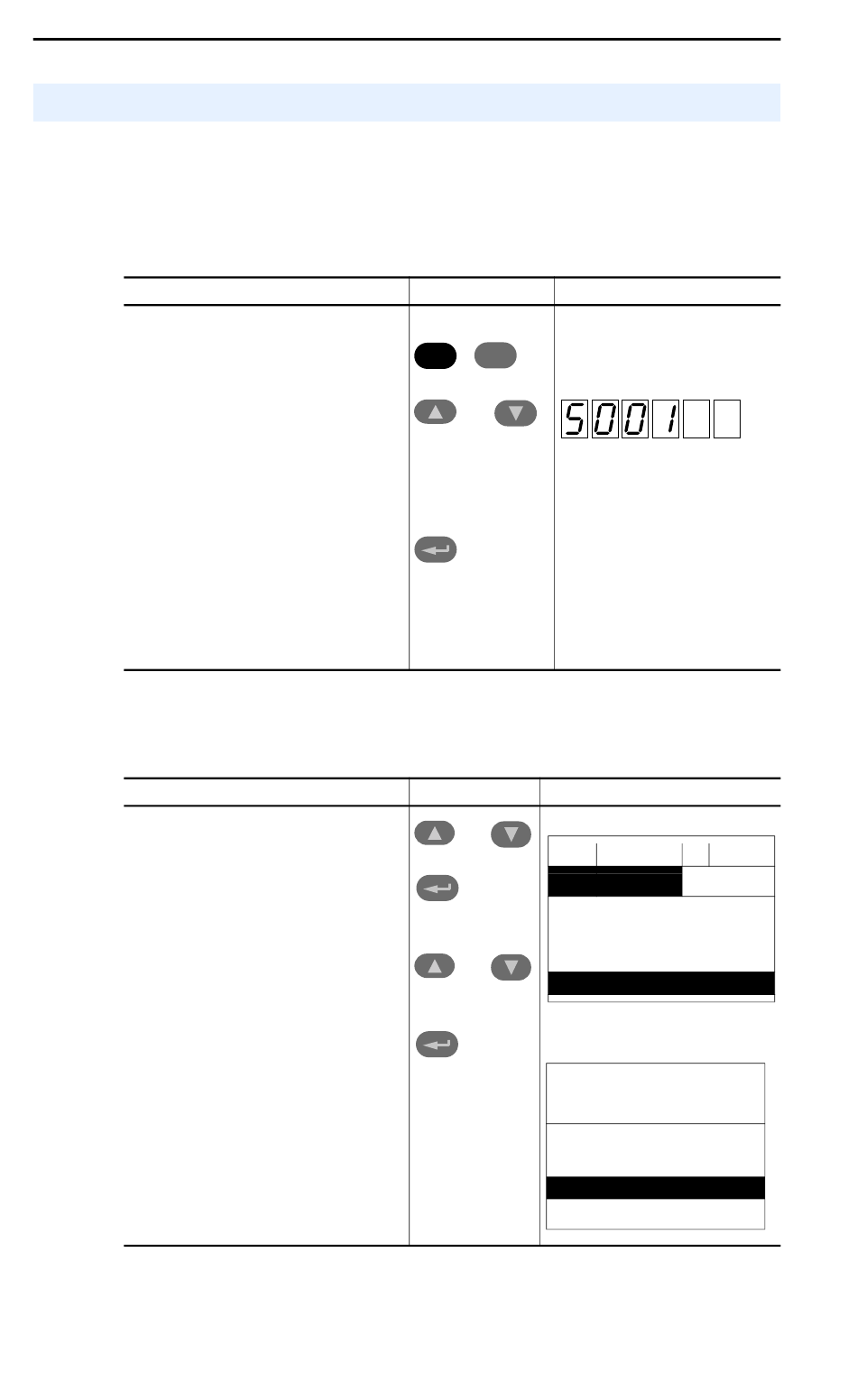

Key(s) Example Screens
Device
Sel
ALT
OR
Key(s) Example Screens
O R
F->
Main Menu:
Diagnostics
Parameter
O R
Device Select
Port 5 Device
20-COMM-C
Main Menu:
Diagnostics
Parameter
Device Select
Stopped Auto
0.00 Hz
