Connecting the Adapter to the Drive
1. Remove power from the drive.
2. Use static control precautions.
3. Connect the Internal Interface cable to the DPI port on the drive and
then to the DPI connector on the adapter.

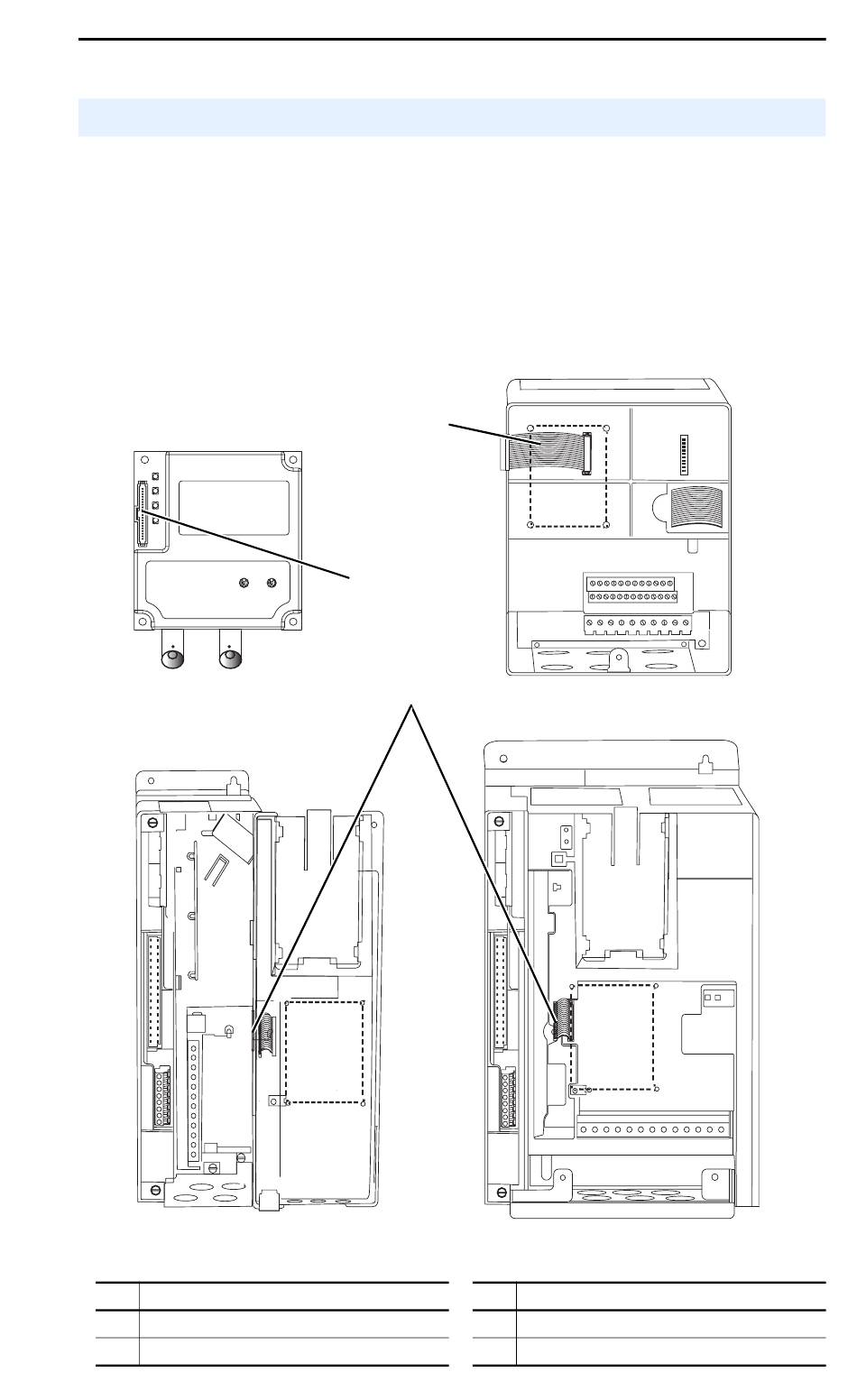

Figure 2.2 DPI Ports and Internal Interface Cables
ControlNet Adapter
PowerFlex 700 Drive
0 - 1 Frame
#
Description
–
15.24 cm (6 in.) Internal Interface cable
—
DPI Connector
–
—
˜
PowerFlex 70 Drive
PowerFlex 700 Drive
2 Frame & Larger
#
˜
Installing the Adapter
Description
2.54 cm (1 in.) Internal Interface cable
2-3
