1.2 Typical System Installation

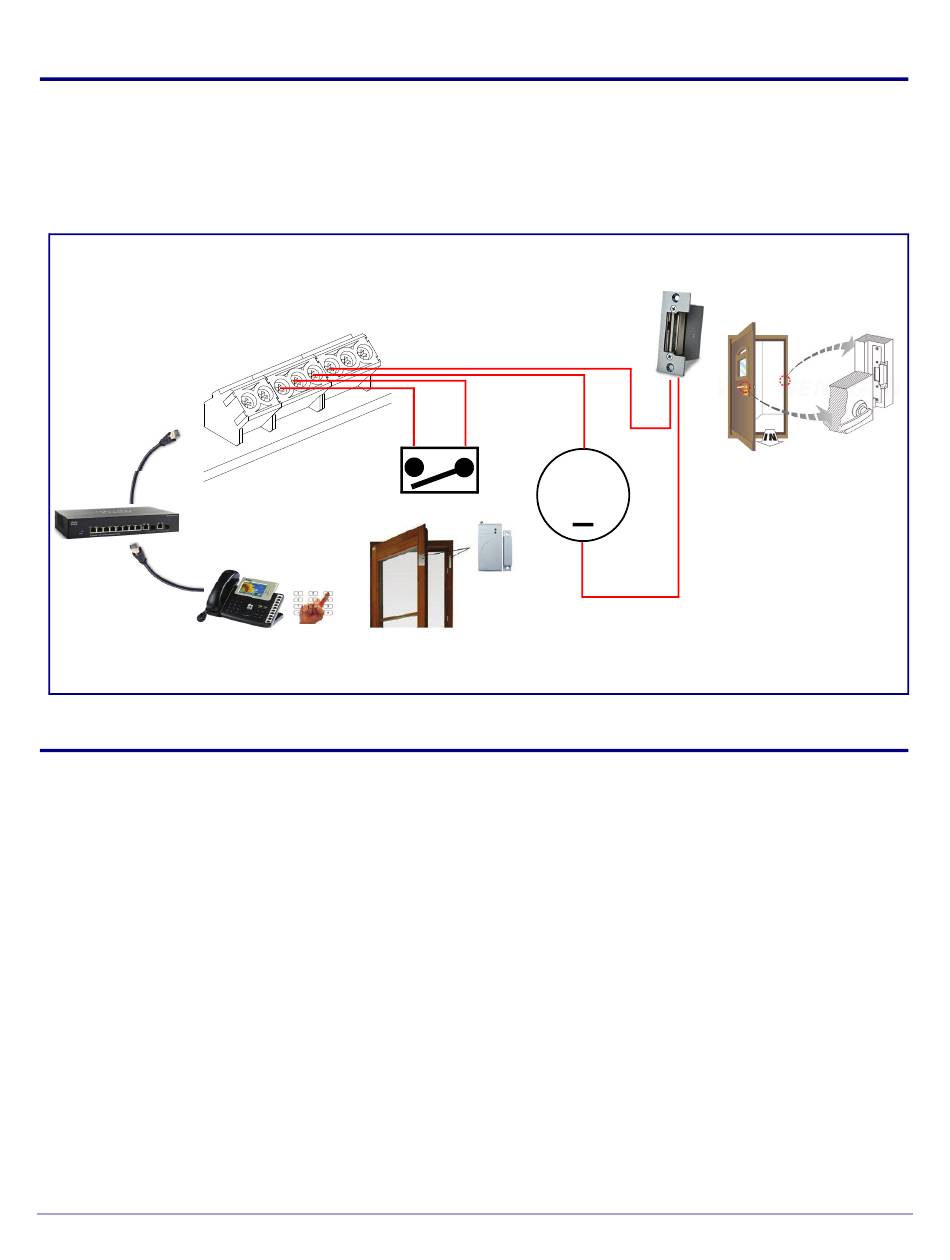

The following figures illustrate how the SIP Outdoor Intercom can be installed as part of a VoIP
phone system.
Trigger electric door strike with a predetermined key code from the IP phone
Terminal Block of the CyberData Device
PoE Switch
Enter key code to trigger the
dry contact in the device

1.3 Product Features

The SIP Outdoor Intercom has the following features:
•
•
•
•
•
•
•
•
•
•
•
Operations Guide
Figure 1-2. Typical Installation
2 1
3
4
5
6
7
8
6
Sense Input
Standard Electronic Door Sense
(not sold by CyberData)
TLS 1.2, Enhanced security for IP Endpoints in a local or cloud based environment
Enhanced acoustic echo canceler
Full-duplex voice operation
Supports SRST (Survivable Remote Site Telephony) in a Cisco environment
Streamlined case design
Network web management and firmware download
Network adjustable speaker volume
Concurrent SIP and multicast paging
Dry relay contact for auxiliary control
Door closure and tamper alert signal
Downloadable alert, ringtones and callout messages
3
4
5
+
DC Source
1 A @ 30 VDC
