2.4.13 Configure the Door Strike Relay

The Door Strike Relay (DSR) is a network device designed to control an electronic door strike. The
DSR is meant to be used as a replacement for (or an addition to) the on-board relay. In addition to
being a drop-in 12 Amp relay, the DSR can monitor and record when the door is open or closed.
The DSR can be configured to trigger in the following ways: on the entry of a DTMF code, manually
through the web interface, or by using a Windows application.
This section describes operations for running firmware version 4.8 or later of the Dual Door Strike
Relay. If you have an older version of the firmware, then please contact CyberData Technical
Support. The version number appears in the
(Figure
1. Click on the DSR menu button to open the DSR page
CyberData Outdoor Intercom
Operations Guide
2-35).

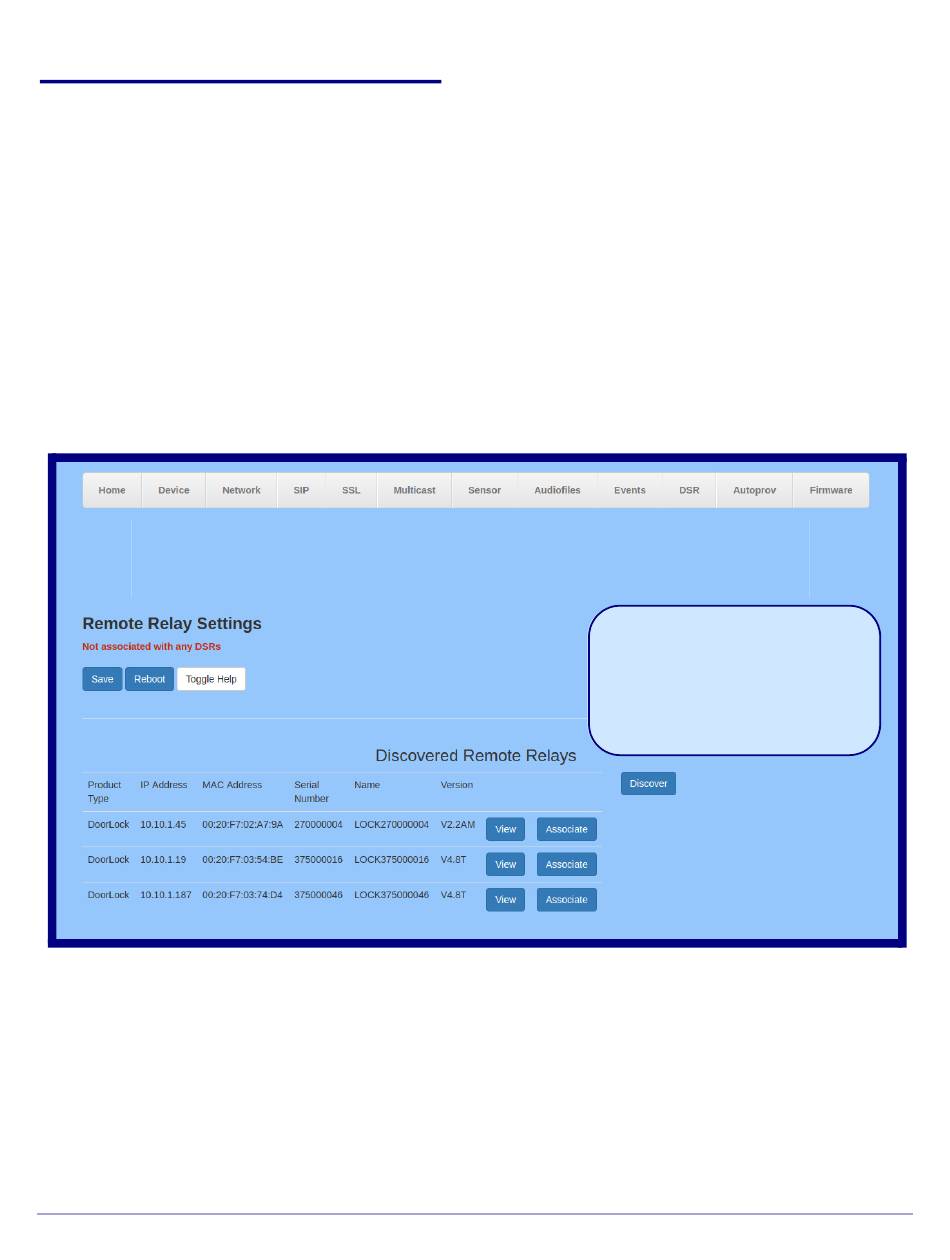

Figure 2-35. DSR Page (not associated with any DSRs)
931544D
Installing the SIP Outdoor Intercom
Discovered Remote Relays
(Figure 2-35).
This is the default page when the
device is not associated with any
.
DSRs Please see the Dual Door
Strike Relay Operations Guide for
more settings and options on the
DSR page when the device is
associated with a DSR.
