Mounting the Intercom 102
Additional Mounting Options
A.8.4 Ground Cable Installation for Goose Neck Mounting Option

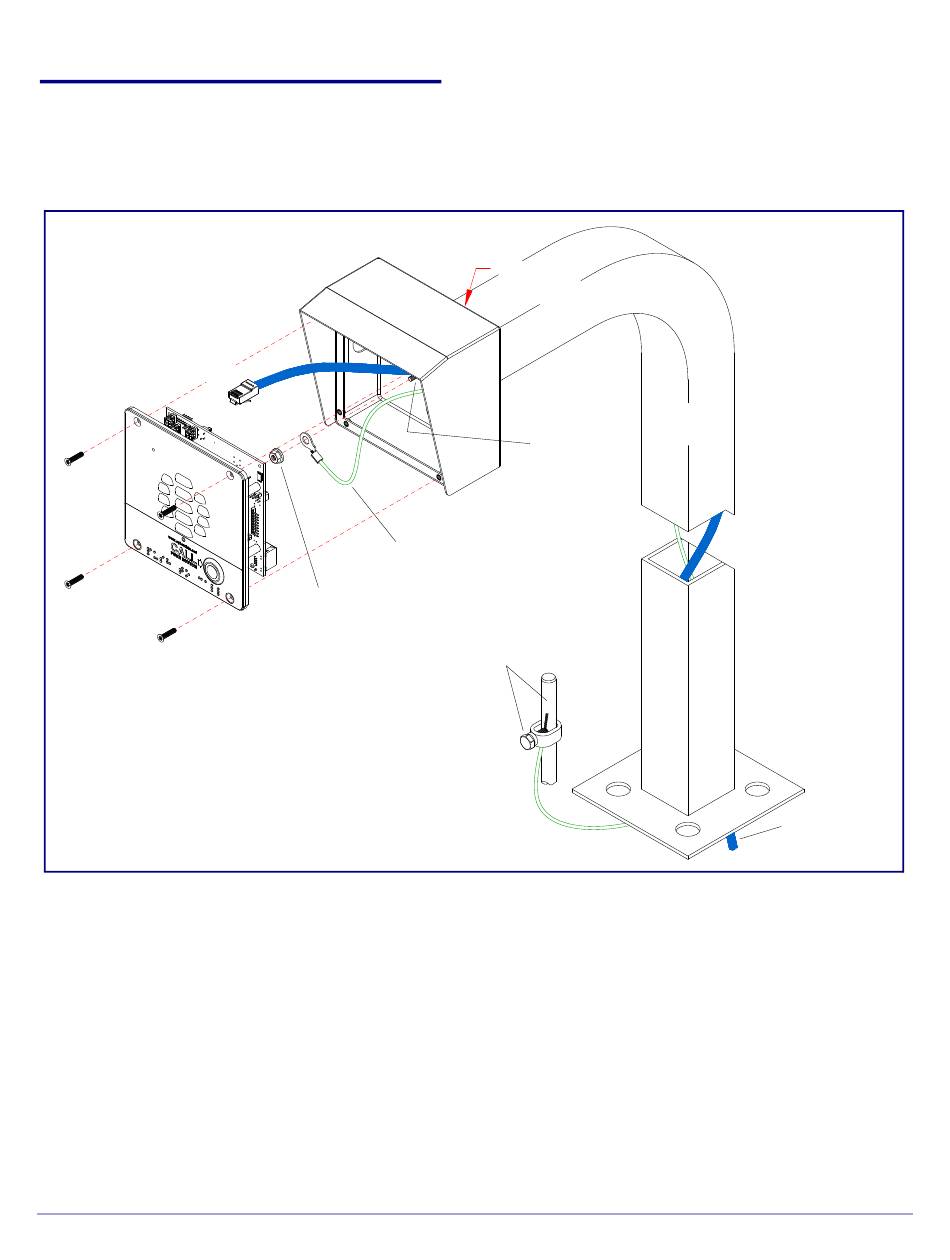

Figure A-14 illustrates the correct ground cable installation for the gooseneck mounting option.
Figure A-14. Ground Cable Installation for Goose Neck Mounting
Note: To mount the intercom, use methods
compliant with local electrical codes.
APPLY WEATHER
SEALANT TO
EXPOSED JOINTS
to Network
Connector
GOOSENECK
(NOT PROVIDED)
Ground Lug
GOOSENECK
[CUTAWAY VIEW
TO SHOW
Ground Cable
CABLES ROUTING]
(NOT PROVIDED)
Nut
(to Ground Lug)
Grounding Rod and Clamp
(NOT PROVIDED)
NETWORK & GROUND
CABLES IN
