2.3.5 Activity and Link LEDs

2.3.5.1 Verifying the Network Connectivity and Data Rate
When you plug in the Ethernet cable or power supply to the Intercom, the following occurs:
•
•
Operations Guide
The square, GREEN Link/Activity LED blinks when there is network activity (see
The square, AMBER 100 Mb Link LED above the Ethernet port indicates that the 
network 100 Mb connection has been established (see

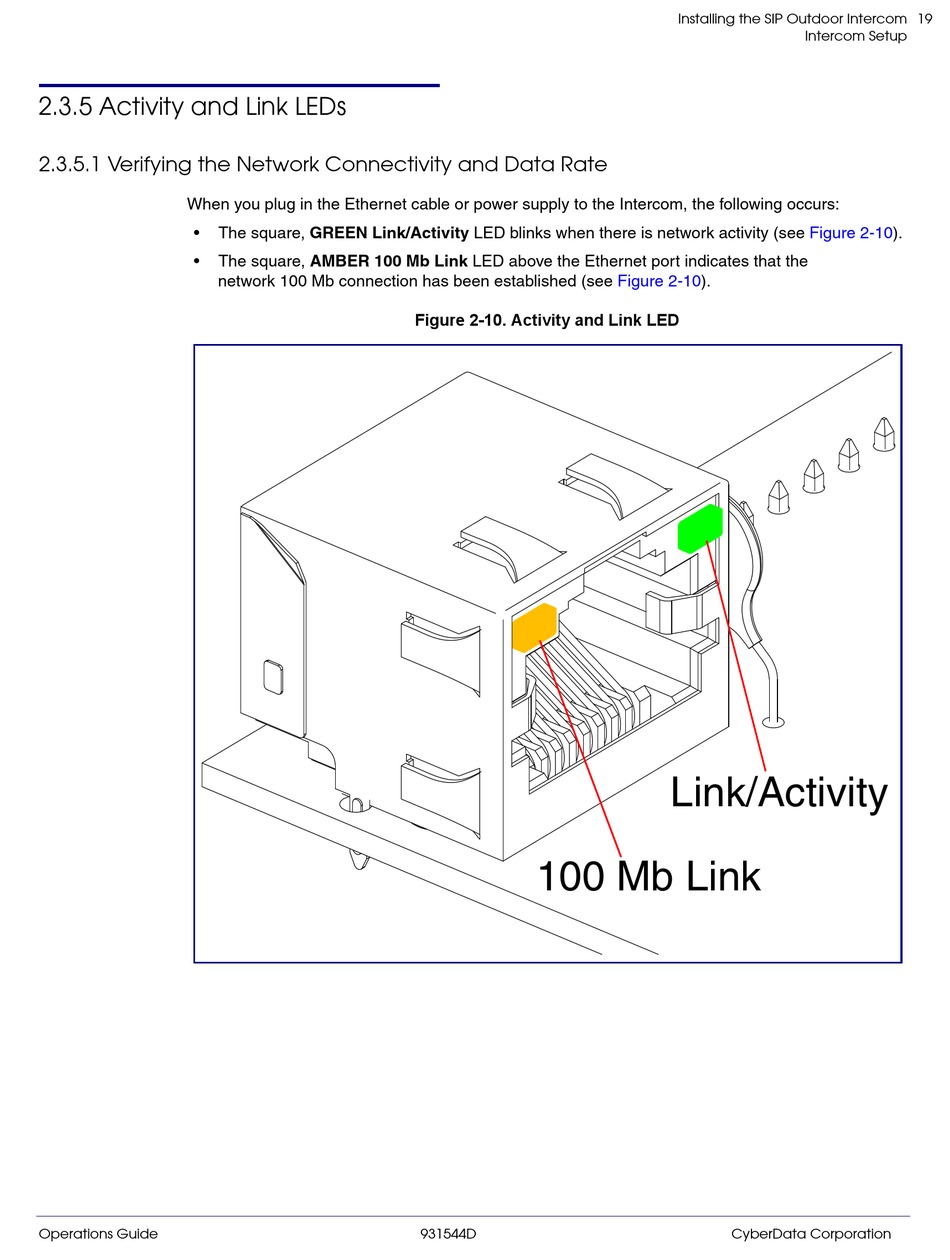

Figure 2-10. Activity and Link LED
100 Mb Link
931544D
Installing the SIP Outdoor Intercom
Figure 2-10).
Link/Activity
CyberData Corporation
19
Intercom Setup
Figure 2-10).
