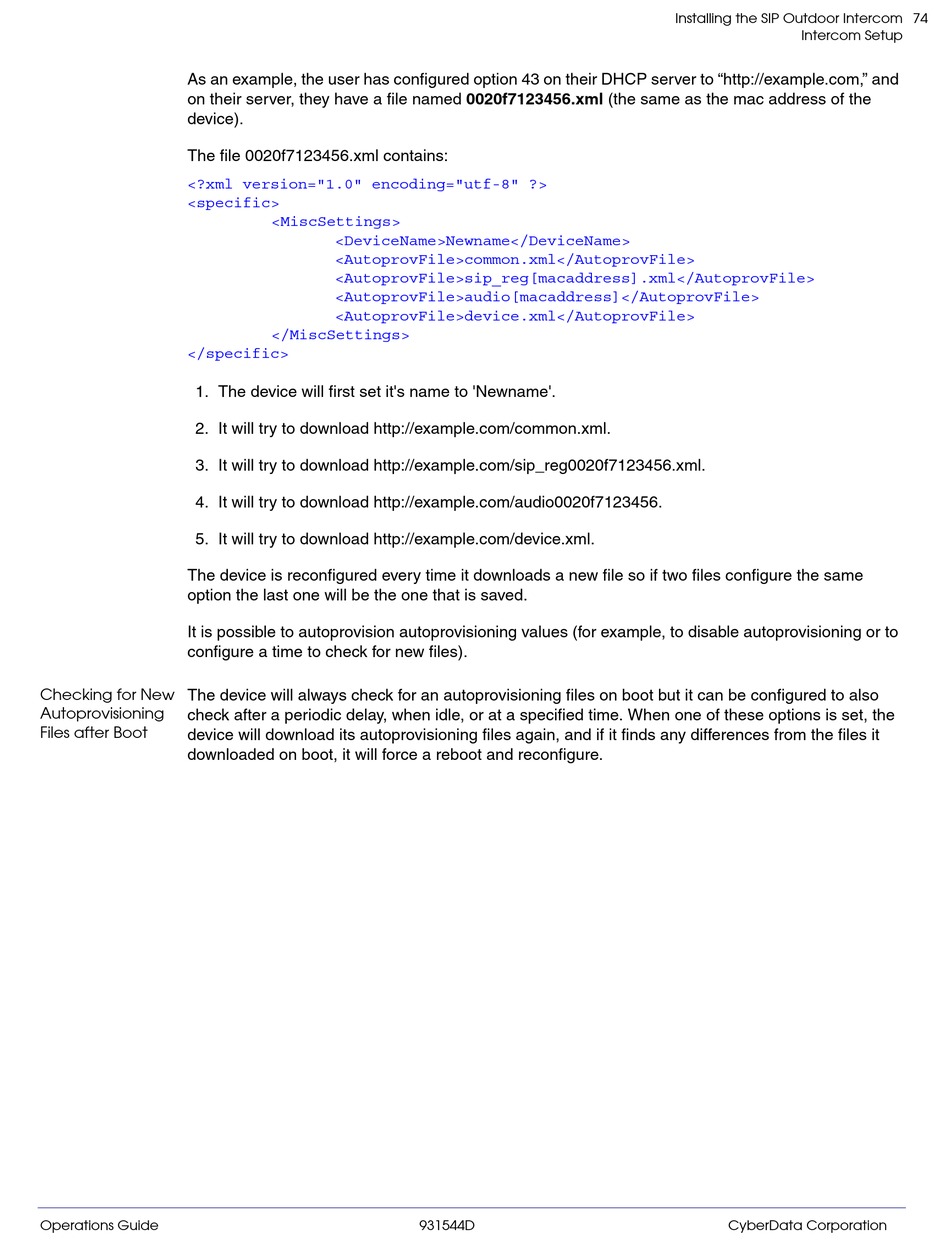

CyberData 011186 Operation Manual page 81

As an example, the user has configured option 43 on their DHCP server to "http://example.com," and
on their server, they have a file named 0020f7123456.xml (the same as the mac address of the
device).
The file 0020f7123456.xml contains:
<?xml version="1.0" encoding="utf-8" ?>
<specific>
</specific>
1. The device will first set it's name to 'Newname'.
2. It will try to download http://example.com/common.xml.
3. It will try to download http://example.com/sip_reg0020f7123456.xml.
4. It will try to download http://example.com/audio0020f7123456.
5. It will try to download http://example.com/device.xml.
The device is reconfigured every time it downloads a new file so if two files configure the same
option the last one will be the one that is saved.
It is possible to autoprovision autoprovisioning values (for example, to disable autoprovisioning or to
configure a time to check for new files).
Checking for New
The device will always check for an autoprovisioning files on boot but it can be configured to also
Autoprovisioning
check after a periodic delay, when idle, or at a specified time. When one of these options is set, the
Files after Boot
device will download its autoprovisioning files again, and if it finds any differences from the files it
downloaded on boot, it will force a reboot and reconfigure.
Operations Guide
<MiscSettings>
<DeviceName>Newname</DeviceName>
<AutoprovFile>common.xml</AutoprovFile>
<AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>
<AutoprovFile>audio[macaddress]</AutoprovFile>
<AutoprovFile>device.xml</AutoprovFile>
</MiscSettings>
931544D
Installing the SIP Outdoor Intercom
Intercom Setup
CyberData Corporation
74
