A.6 Service Loop Cable Routing
Figure A-8
Operations Guide
and
Figure A-9
illustrate a service loop cable routing option for the SIP Outdoor Intercom.

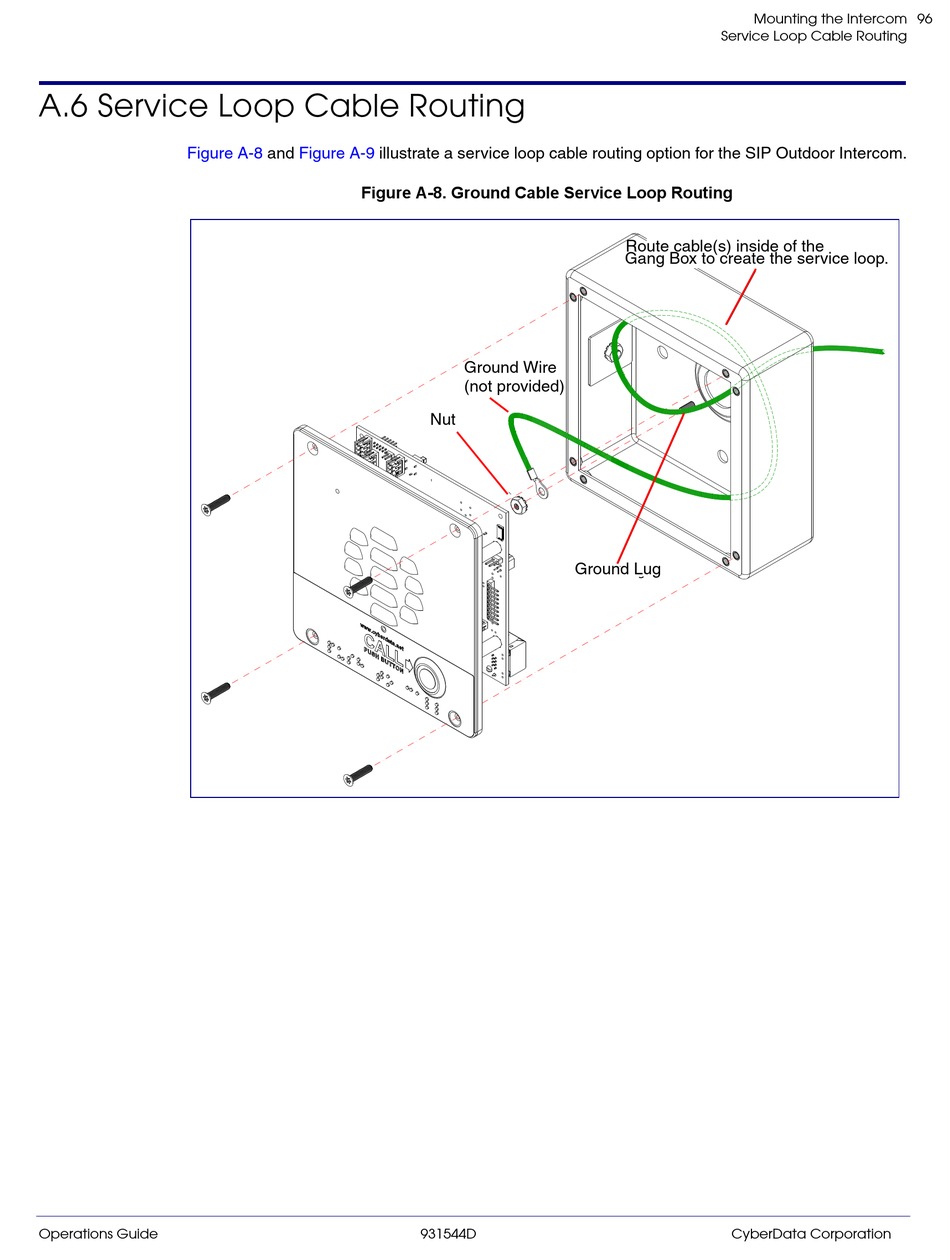

Figure A-8. Ground Cable Service Loop Routing
Nut
Nut
931544D
Route cable(s) inside of the
Gang Box to create the service loop.
Ground Wire
(not provided)
Ground Wire
(Not Provided)
Ground Lug
Ground Lug
Mounting the Intercom
Service Loop Cable Routing
Route Cable(s) inside Gang Box to
Creates Service Loop
CyberData Corporation
96
