A.8 Additional Mounting Options
A.8.1 Conduit Mounting Option (Not Provided)

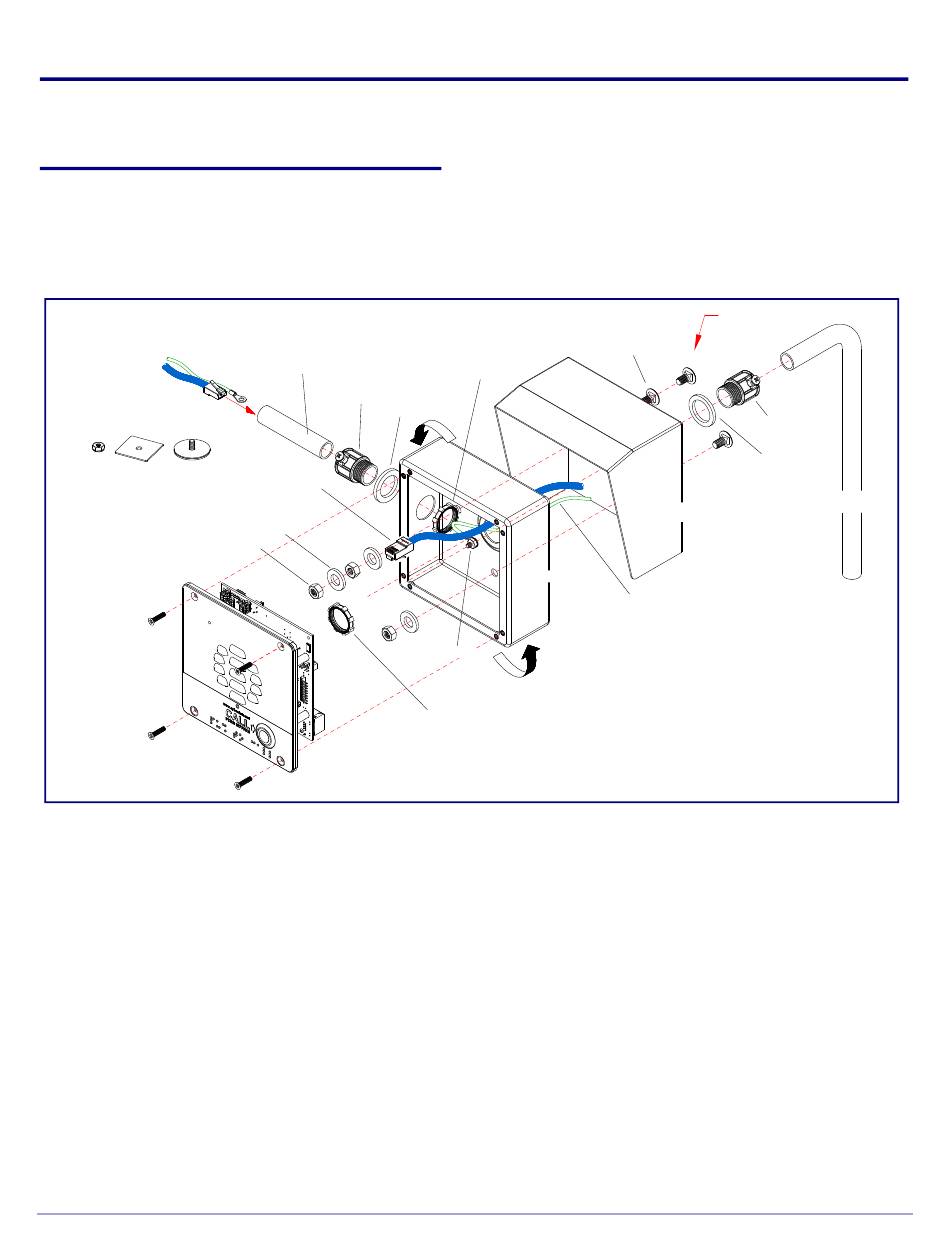

Figure A-11
Note: To mount the intercom, use methods
compliant with local electrical codes.
Optional
Network & Ground
Cables Side Entry
*Remove Hole Plug Assembly
before proceeding with installation
1/4" Washer (3x)
1/4" Nut (3x)
Security
Torx Screws
Operations Guide
illustrates a side and rear conduit mounting option for the SIP Outdoor Intercom.
Figure A-11. Optional Conduit Mounting
1/2" Conduit
(Not Provided)
1/2" Set Screw
Connector
Spacer
Network Cable
(Not Provided)
Ground Lug
1/2" Set Screw
Connector Nut
Faceplate &
PCB Assembly
931544D
1/4" Carriage Bolt (3x)
1/2" Set Screw
Connector Nut
2-Gang Box
Rotate 2-Gang Box
for Desire Conduit
Mounting Direction
Mounting the Intercom

Additional Mounting Options

APPLY WEATHER
SEALANT TO
EXPOSED JOINTS
1/2" Set Screw
Connector
(Not Provided)
Spacer
Weather Shroud
(Sold Separate)
Ground Cable
(Not Provided)
