1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick

Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide,

which is available in the Downloads tab at the following webpage:

http://www.cyberdata.net/voip/011186/

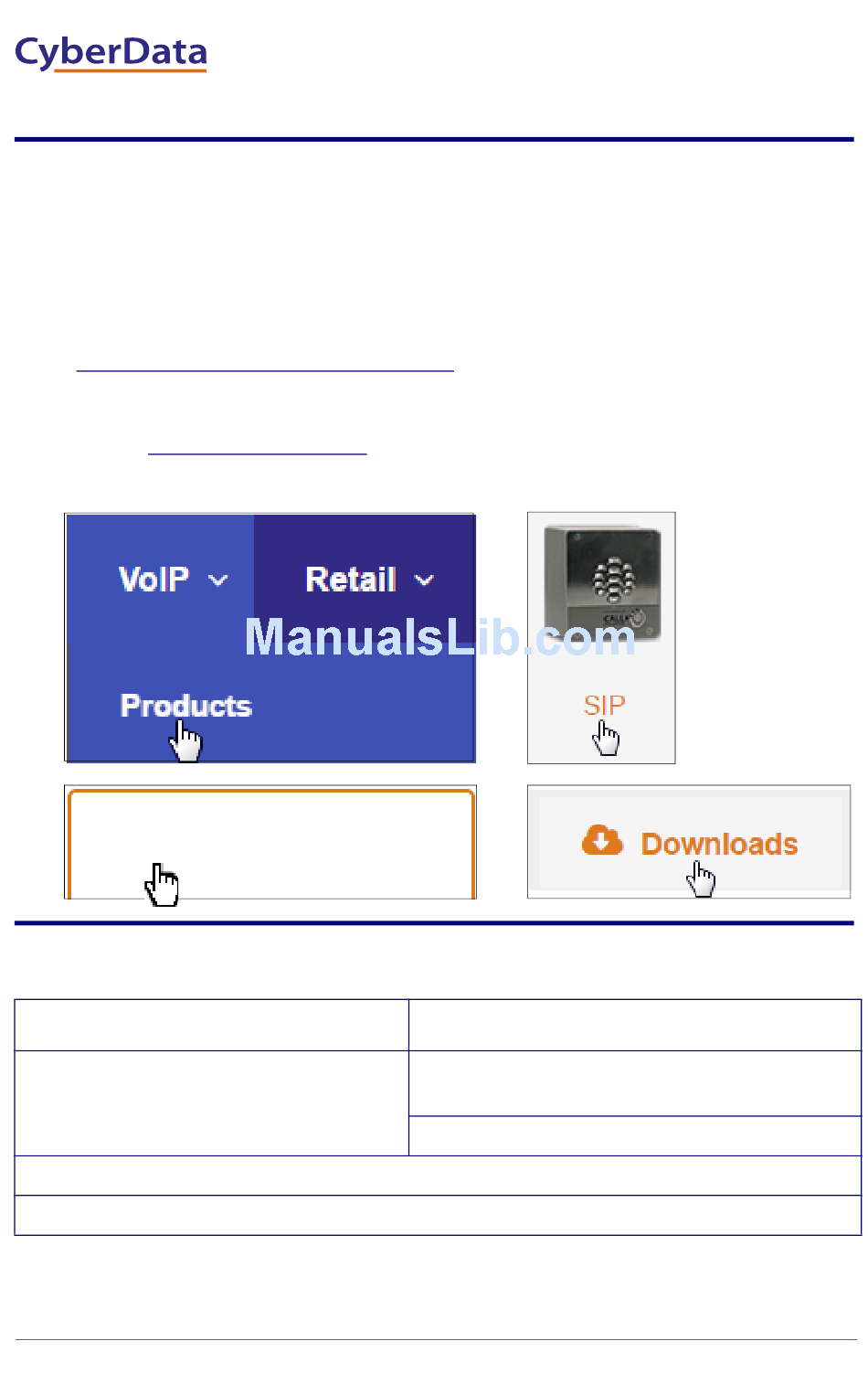

Note You can also navigate to the Downloads tab by going to

www.CyberData.net

the following figures:

SIP Outdoor Intercom

Part Number: 011186

PoE Switch

Set PoE power type to Class 0 = 15.4W

Quick Start Guide

VoIP Outdoor Intercom

Quick Start Guide

and following the steps that are indicated by

Make sure port is not in trunk mode

Set port to full duplex/ 100Mbps

PoE Injector

CAT6 cable recommended—

for longer distances

Be sure you are using a non-PoE switch or port

931294B

Table of Contents

Do you have a question about the 011186 and is the answer not in the manual?

Page 1 Note You can also navigate to the Downloads tab by going to www.CyberData.net and following the steps that are indicated by the following figures: SIP Outdoor Intercom Part Number: 011186 2.0 Select Power Source PoE Switch PoE Injector Set PoE power type to Class 0 = 15.4W CAT6 cable recommended—...
Page 2 3.0 Power Test 3.1. Plug in the CyberData device and monitor the LED activity above the ethernet port on the back of the Intercom. See the following figure: 100Mb Link LED Link/Activity LED 3.2. The GREEN 100Mb Link LED blinks off once during the boot up process when the device beings DHCP addressing and autoprovisioning attempts, and then comes on again and remains constant (solid GREEN).
Page 3 4.1. In a test environment, use a computer that is connected to the same switch as a single CyberData device. Note the subnet of the test computer. 4.2. Use the CyberData Discovery Utility program to locate the device on the network. You can download the Discovery Utility program from the following link: http://www.cyberdata.net/assets/common/discovery.zip...
Page 4 Note You can also access the Technical Support help desk by navigating through menus on the CyberData website (www.CyberData.net) as shown in the following figure: The Technical Support help desk provides the options of accessing documentation for your CyberData product, browsing the knowledge base, and submitting a troubleshooting ticket.
