A.8.3 Goose Neck Mounting Option (Not Provided)
Figure A-13
Note: To mount the intercom, use methods
compliant with local electrical codes.
Hole Plug
Assembly
Hole Plug
[Washer]
Assembly
[Nut]
Faceplate
Mounting Screws
Flat Head Phillips or
Security Torx
Faceplate
Assembly
Operations Guide

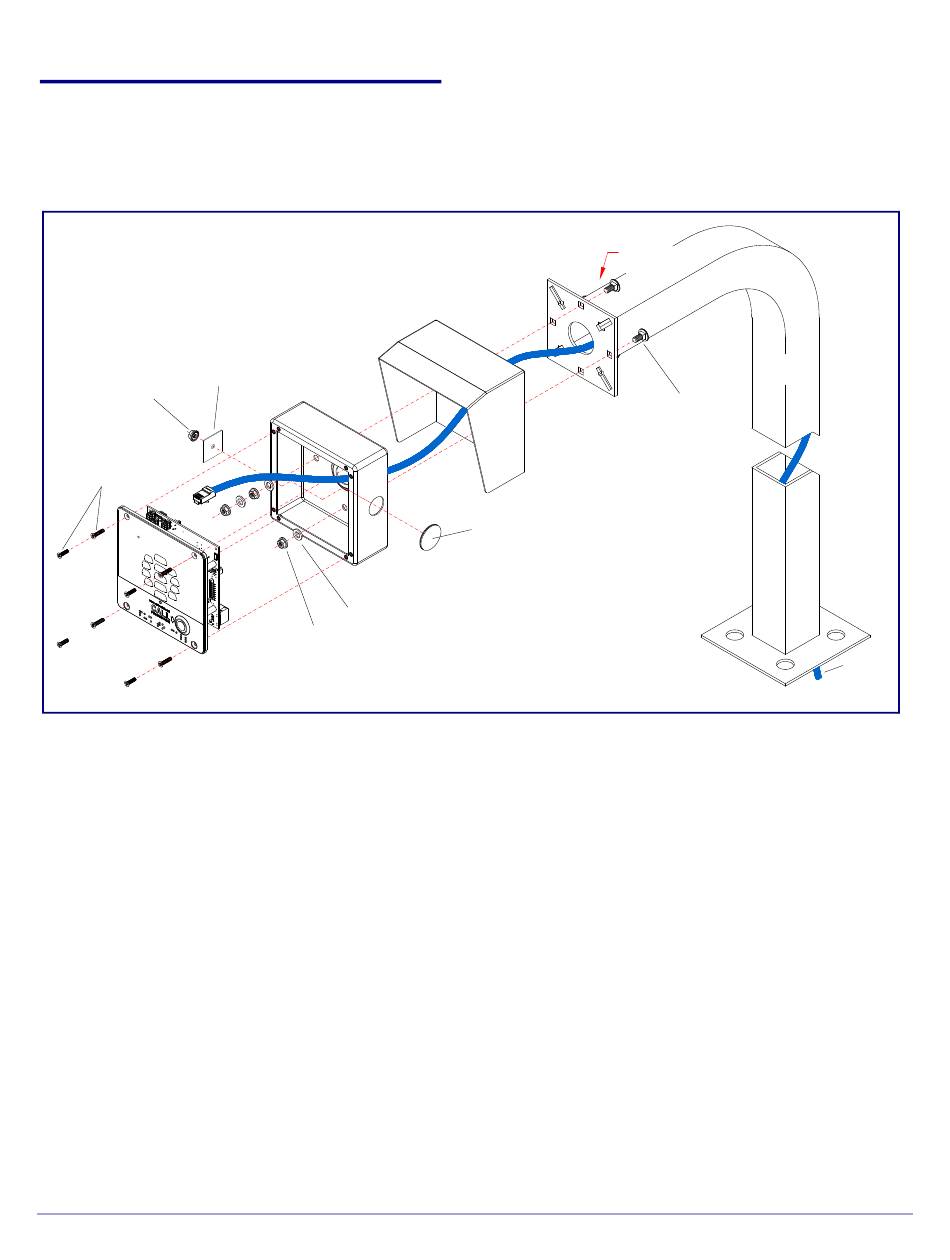

illustrates a gooseneck mounting option for the SIP Outdoor Intercom.
Figure A-13. Optional Goose Neck Mounting
2-Gang Box
(REMOVE HOLE PLUG ASSEMBLY
BEFORE FASTEN IT TO SHROUD
1/4" Washer (3x)
1/4" Nut (3x)
931544D
APPLY WEATHER
SEALANT TO
EXPOSED JOINTS
Weather Shroud
Part Number: 011188A
(SOLD SEPARATELY)
Hole Plug
Assembly
[Hole Plug]
FROM 2-GANG BOX
AND/OR GOOSENECK)
Mounting the Intercom
Additional Mounting Options
GOOSENECK
(NOT PROVIDED)
1/4" Round Head
Carriage Bolt (3x)
[CUTAWAY VIEW
CABLE ROUTING]
(NOT PROVIDED)
CyberData Corporation
101
GOOSENECK
TO SHOW
NETWORK
CABLE
