A.8 Additional Mounting Options
A.8.1 Conduit Mounting Option (Not Provided)
Figure A-13
Note: To mount the intercom, use methods
compliant with local electrical codes.
Optional
Network & Ground
Cables Side Entr
*Re ove Hole Plug Asse bl
before proceeding with installation
1/4" Washer (3x)
1/4" Nut (3x)
Securit
Torx Screws
Operations Guide
illustrates a side and rear conduit mounting option for the VoIP Outdoor Intercom.

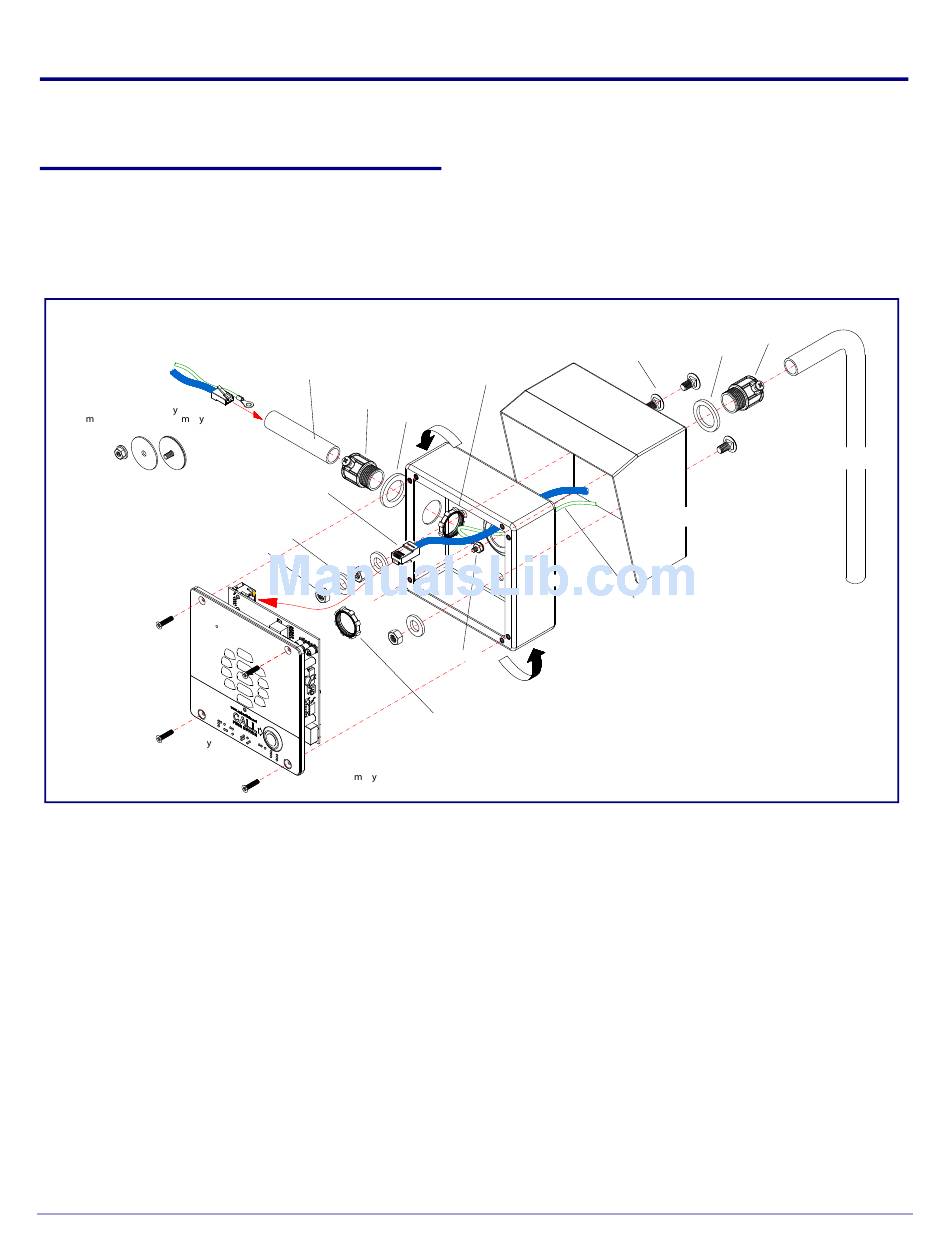

Figure A-13. Optional Conduit Mounting
1/2" Conduit
(Not Provided)
1/2" Set Screw
Connector
Spacer
Network Cable
(Not Provided)
Ground Lug
Faceplate &
PCB Asse bl
1/4" Carriage Bolt (3x)
1/2" Set Screw
Connector Nut
2-Gang Box
Rotate 2-Gang Box
for Desire Conduit
Mounting Direction
1/2" Set Screw
Connector Nut
930796L
Mounting the Intercom

Additional Mounting Options

1/2" Set Screw
Connector
(Not Provided)
Spacer
Weather Shroud
(Sold Separate)
Ground Cable
(Not Provided)
CyberData Corporation
97
1/2" Conduit
(Not Provided)
