A.7 Additional Mounting Options
A.7.1 Rear Conduit Mounting Option (Not Provided)
Figure A-10
Note: To mount the intercom, use methods
compliant with local electrical codes.
For 1/2" Conduit Mounting
with Optional Weather Shroud
Re ove Hole Plug Asse bl
Network Cable &
Ground Wire
(Not Provided)
Faceplate Mounting
Screw (6x)
Operations Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
illustrates a rear conduit mounting option for the VoIP Outdoor Intercom with Keypad.

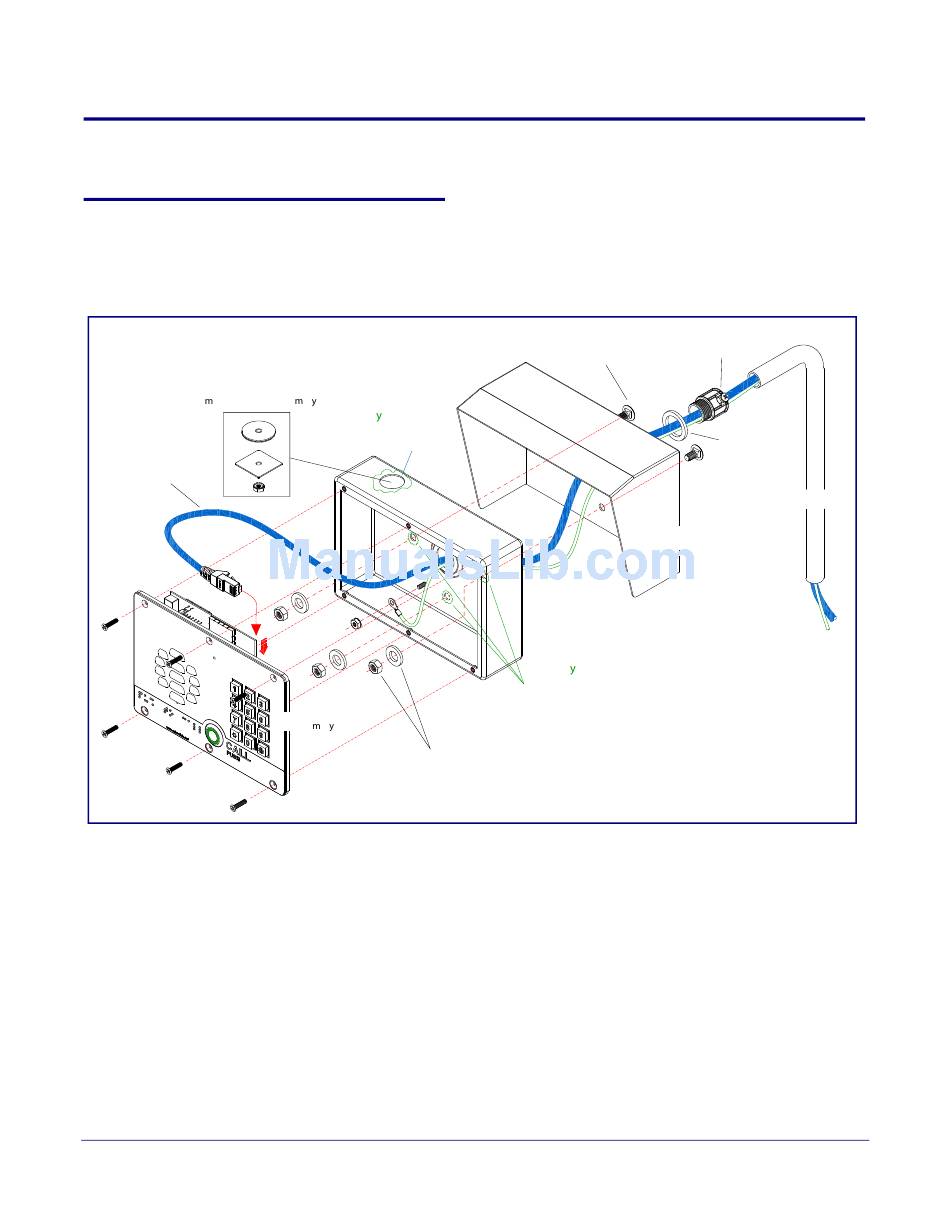

Figure A-10. Optional Rear Conduit Mounting
Appl RTV
Silicone Sealant
Around Conduit Hole
J1
Faceplate &
PCB Asse bl
(121017A)
1/4" Washer & Nut (3x)
930923B
1/2" Set Screw
(121017A)
(Not Provided)
1/4" Carriage Bolt (3x)
011215A
Weather Shroud
(Sold Separate)
Appl RTV
Silicone Sealant
Around Mounting Holes

Additional Mounting Options

Connector
Spacer
(One Provided)
1/2" Conduit
(Not Provided)
