A.7 Additional Mounting Options
A.7.1 Rear Conduit Mounting Option (Not Provided)
Figure A-8
Intercom with Keypad.
Note: To mount the intercom, use methods
compliant with local electrical codes.
For 1/2" Conduit Mounting
with Optional Shroud
Remove Hole Plug
Assembly prior
for Shroud Installation
Network Cable &
Ground Cable
are Not Provided
Faceplate Mounting
Screw (6x)
Operations Guide
illustrates a rear conduit mounting option for the SIP-enabled h.264 Video Outdoor

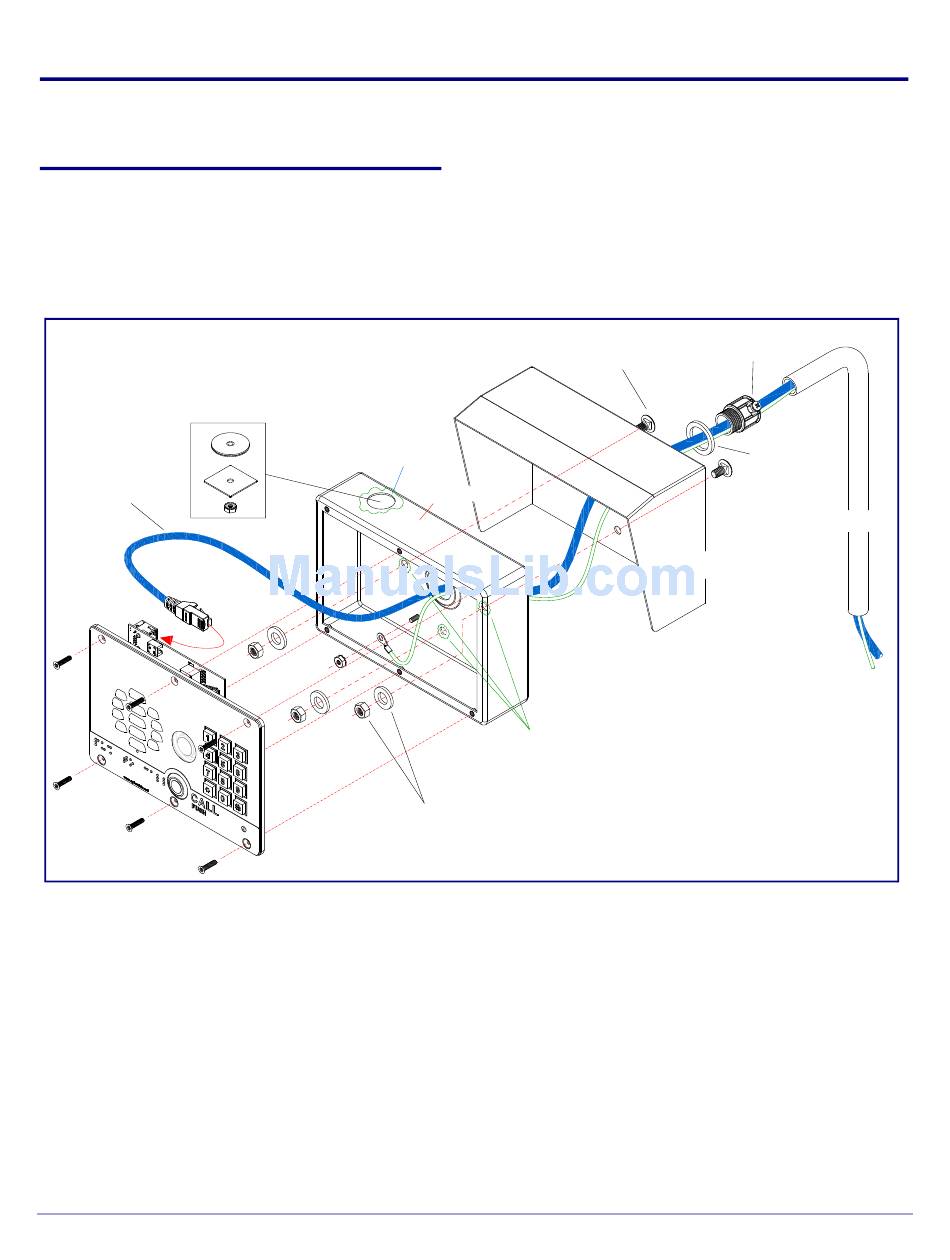

Figure A-8. Optional Rear Conduit Mounting
Apply RTV
Silicone Sealant
Around Conduit Hole
Custom
Enclosure
Faceplate &
PCB Assembly
1/4" Washer & Nut (3x)
931338B
1/4" Carriage Bolt (3x)
Weather Shroud
(Sold Separate)
*
1/2" Conduit, Network Cable,
1/2" Set Screw Connector, Ground Wire &
RTV Sealant are Not Provided
Apply RTV
Silicone Sealant
Around Mounting Holes

Additional Mounting Options

1/2" Set Screw
Connector & Conduit
are Not Provided
Spacer
(One Provided)
1/2" Conduit
CyberData Corporation
96
