A.5 Service Loop Cable Routing

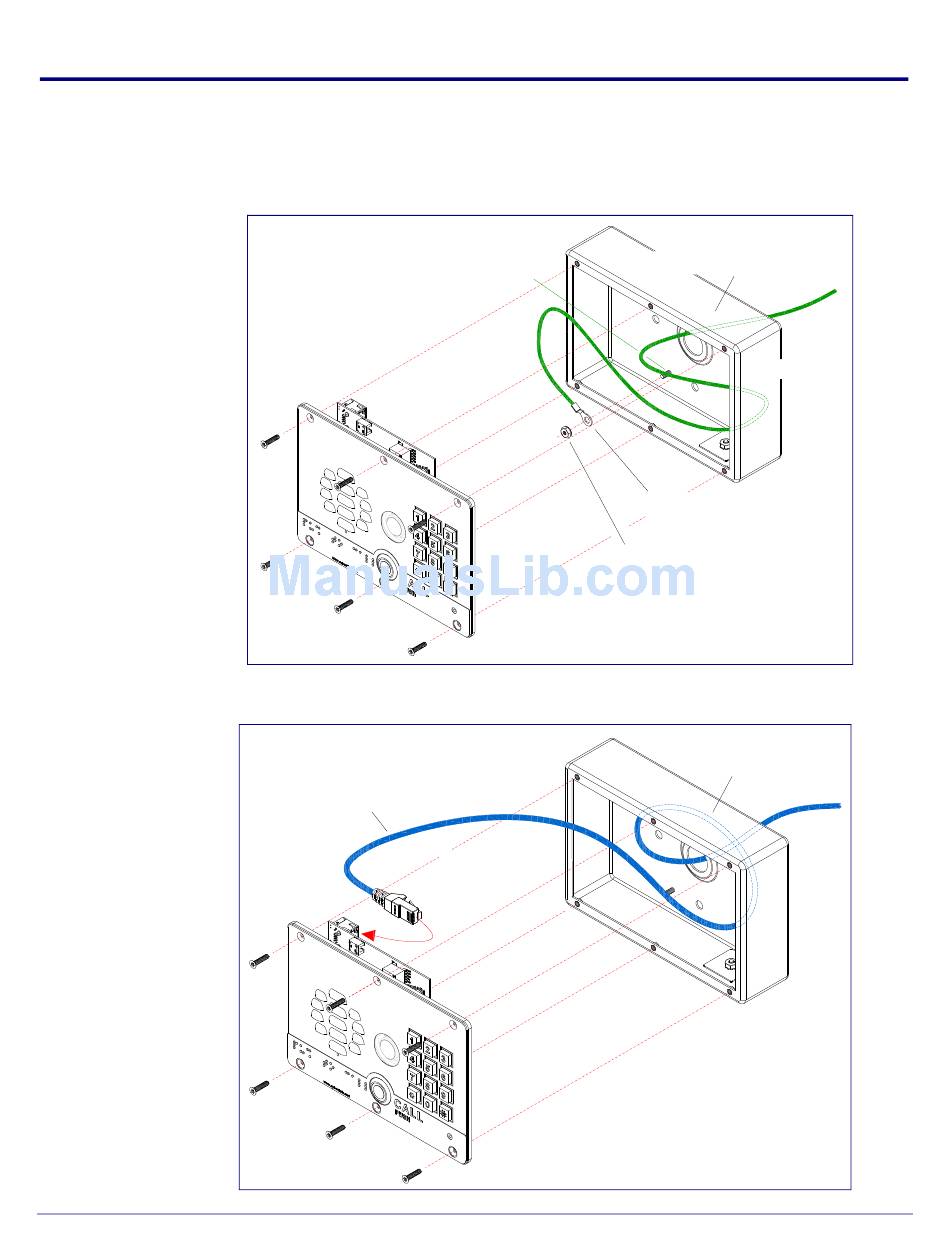

Figure A-5
Operations Guide
and Figure A-6 illustrate how to route the cables to the Intercom to create a service loop.
Figure A-5. Ground Cable Service Loop Routing
Faceplate &
PCB Assembly
Faceplate Mounting
Screw (6x)
Figure A-6. Network Cable Service Loop Routing
Network Cable
is Not Provided
Faceplate Mounting
Screw (6x)
931338B
Ground Lug
Nut to Ground Lug
Inside the Custom Enclosure
Faceplate &
PCB Assembly

Service Loop Cable Routing

Route Cable inside
the Custom Enclosure to
Creates Service Loop
Custom
Enclosure
Ground Cable
is Not Provided
Route Cable inside
the Custom Enclosure to
Creates Service Loop
Custom
Enclosure
