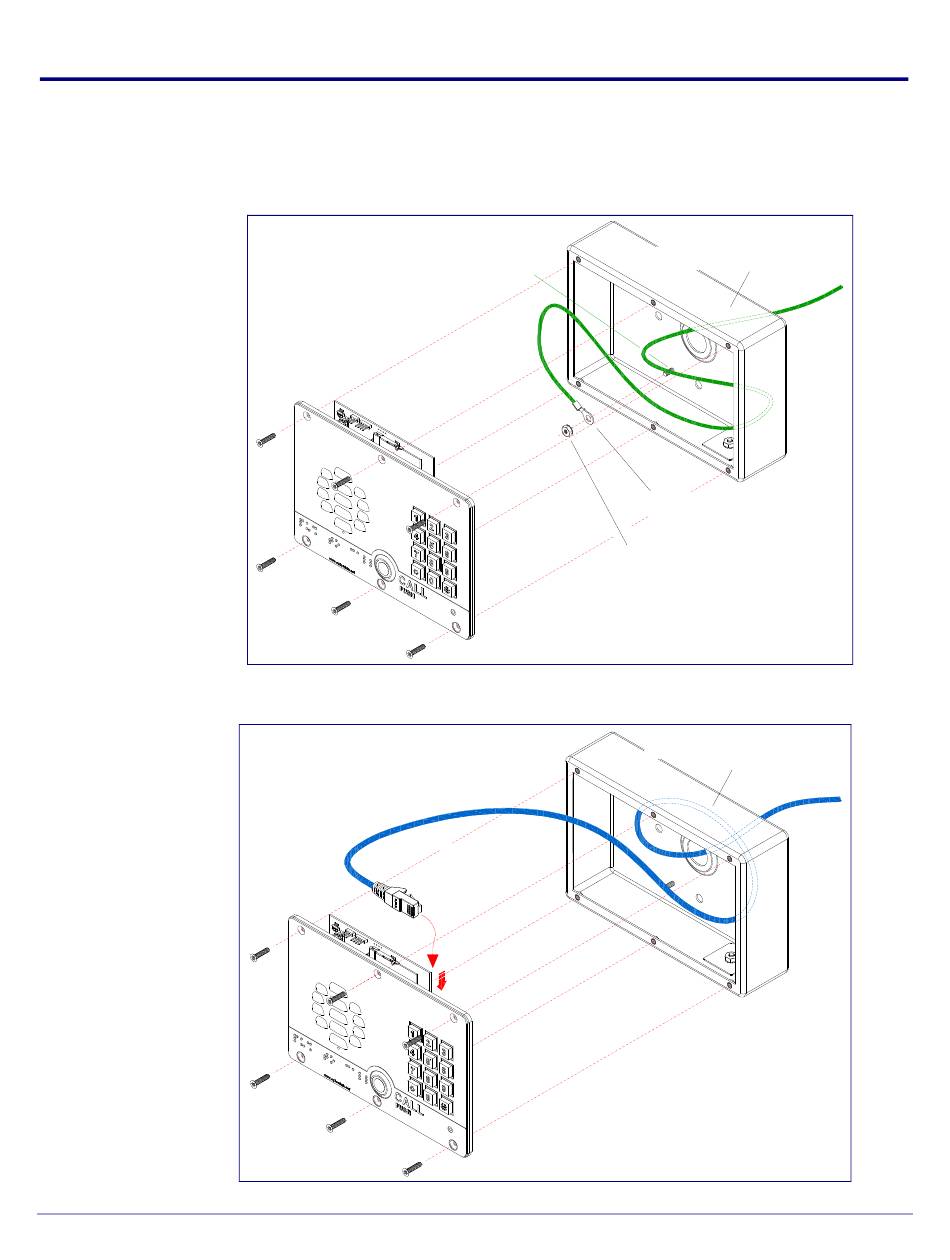

A.5 Service Loop Cable Routing
Figure A-6
Operations Guide
and
Figure A-7
illustrate how to route the cables to the Intercom to create a service loop.
Figure A-6. Ground Cable Service Loop Routing
Faceplate Mounting
Screw (6x)
Figure A-7. Network Cable Service Loop Routing
Network Cable
(Not Provided)
Faceplate Mounting
Screw (6x)
931562B
Ground Lug
Faceplate &
#8 Nut
PCB Assembly
(to Ground Lug)
Inside Gang Box
J1
Faceplate &
PCB Assembly
Service Loop Cable Routing
Route Cable(s) inside Gang Box to
Creates Service Loop
Ground Cable
(Not Provided)
Route Cable(s) inside Gang Box to
Creates Service Loop
CyberData Corporation
107
