Ecotron - Incubation Shaker
Setup and Function

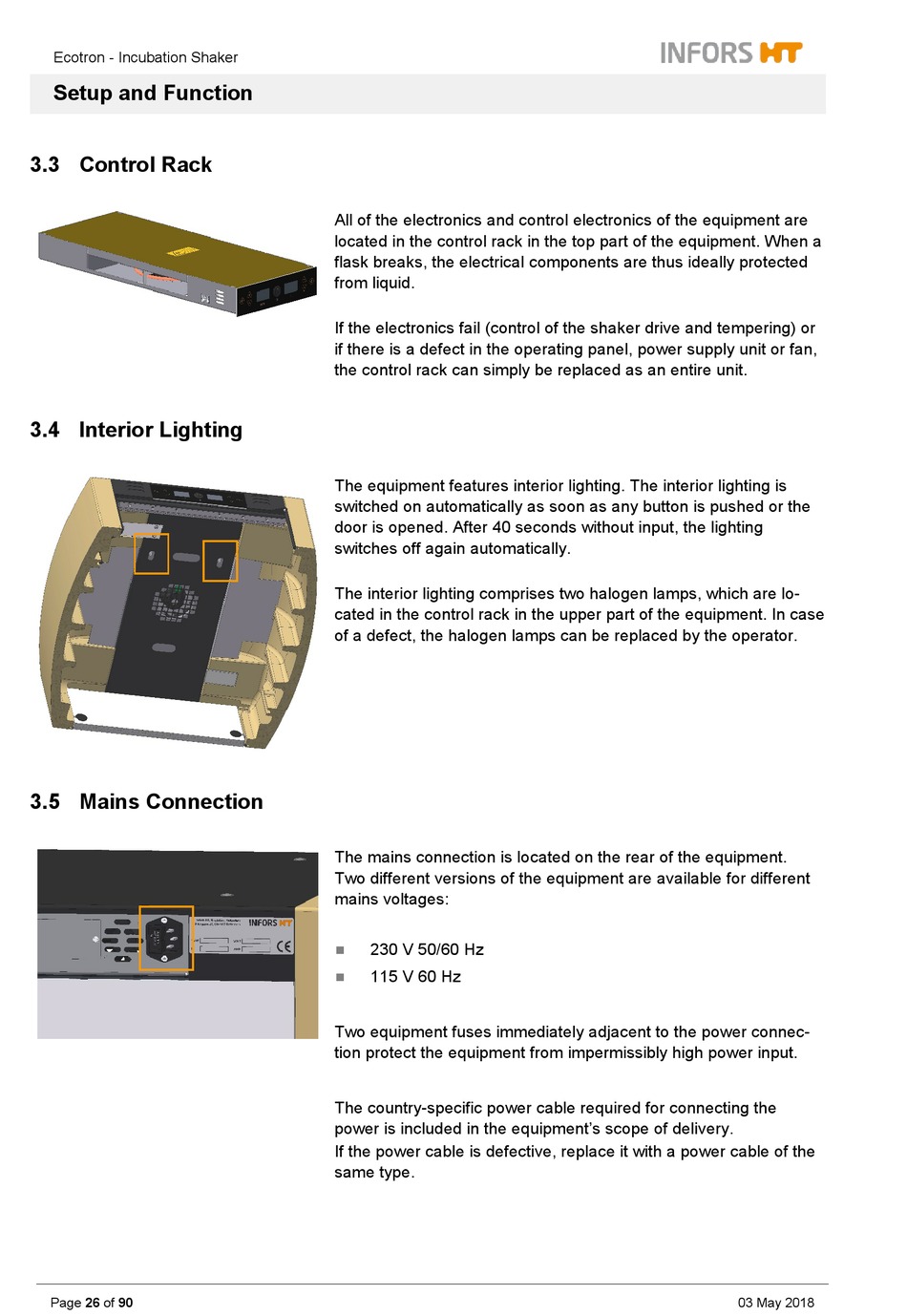

3.3 Control Rack

3.4 Interior Lighting

3.5 Mains Connection

Page 26 of 90
All of the electronics and control electronics of the equipment are
located in the control rack in the top part of the equipment. When a
flask breaks, the electrical components are thus ideally protected
from liquid.
If the electronics fail (control of the shaker drive and tempering) or
if there is a defect in the operating panel, power supply unit or fan,
the control rack can simply be replaced as an entire unit.
The equipment features interior lighting. The interior lighting is
switched on automatically as soon as any button is pushed or the
door is opened. After 40 seconds without input, the lighting
switches off again automatically.
The interior lighting comprises two halogen lamps, which are lo-
cated in the control rack in the upper part of the equipment. In case
of a defect, the halogen lamps can be replaced by the operator.
The mains connection is located on the rear of the equipment.
Two different versions of the equipment are available for different
mains voltages:
230 V 50/60 Hz

115 V 60 Hz

Two equipment fuses immediately adjacent to the power connec-
tion protect the equipment from impermissibly high power input.
The country-specific power cable required for connecting the
power is included in the equipment's scope of delivery.
If the power cable is defective, replace it with a power cable of the
same type.
03 May 2018
