7.2.2 Fitting the Holders

2
Procedure
03 May 2018
ATTENTION
The threaded holes of the table can be damaged if the fastening
screws are not screwed straight into the thread:
– Place the screws vertically on the drill holes.
– Ensure they can be tightened easily.
ATTENTION
All holders are supplied with pre-fitted screws. If a test tube
holder or a box for microtiter plates is placed on the «Sticky
Stuff» adhesive matting, there is a risk that the adhesive matting
is damaged by protruding screws.
– Remove the screws before you place test tube holders or
boxes for microtiter plates on the «Sticky Stuff» adhesive
matting.

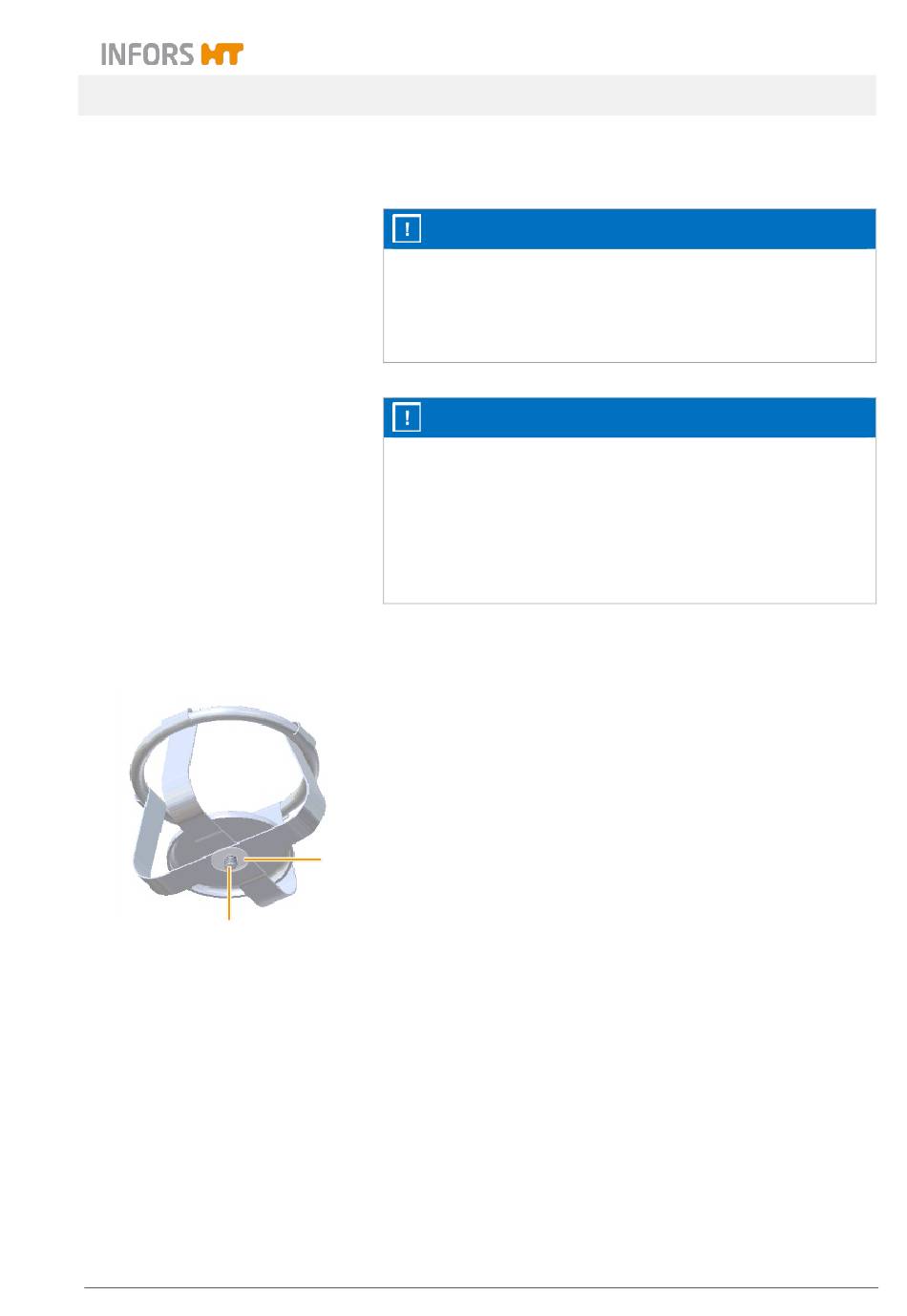

Fitting a holder
Clamps, test tubes and boxes for microtiter plates are fixed to the
table using screws. The equipment is delivered with pre-fitted
screws (2). The screws are each secured with one flat gasket at
the bottom (1) so that they cannot fall out. Only use the screws
provided or screws of the same size for assembly.
1
To fit a holder, proceed as follows:
1. Loosen flat gaskets.
2. Position the holder on the table.
3. Centre a screw on the threaded hole in the table and screw it
in loosely. It must still be possible to turn the holder.
4.
Align the holder so that all screws are vertical above the re-
spective threaded hole in the table.
5. Insert screws loosely. Ensure that the screws are screwed in
straight and do not tilt.
6. Evenly tighten all screws cross-wise.
