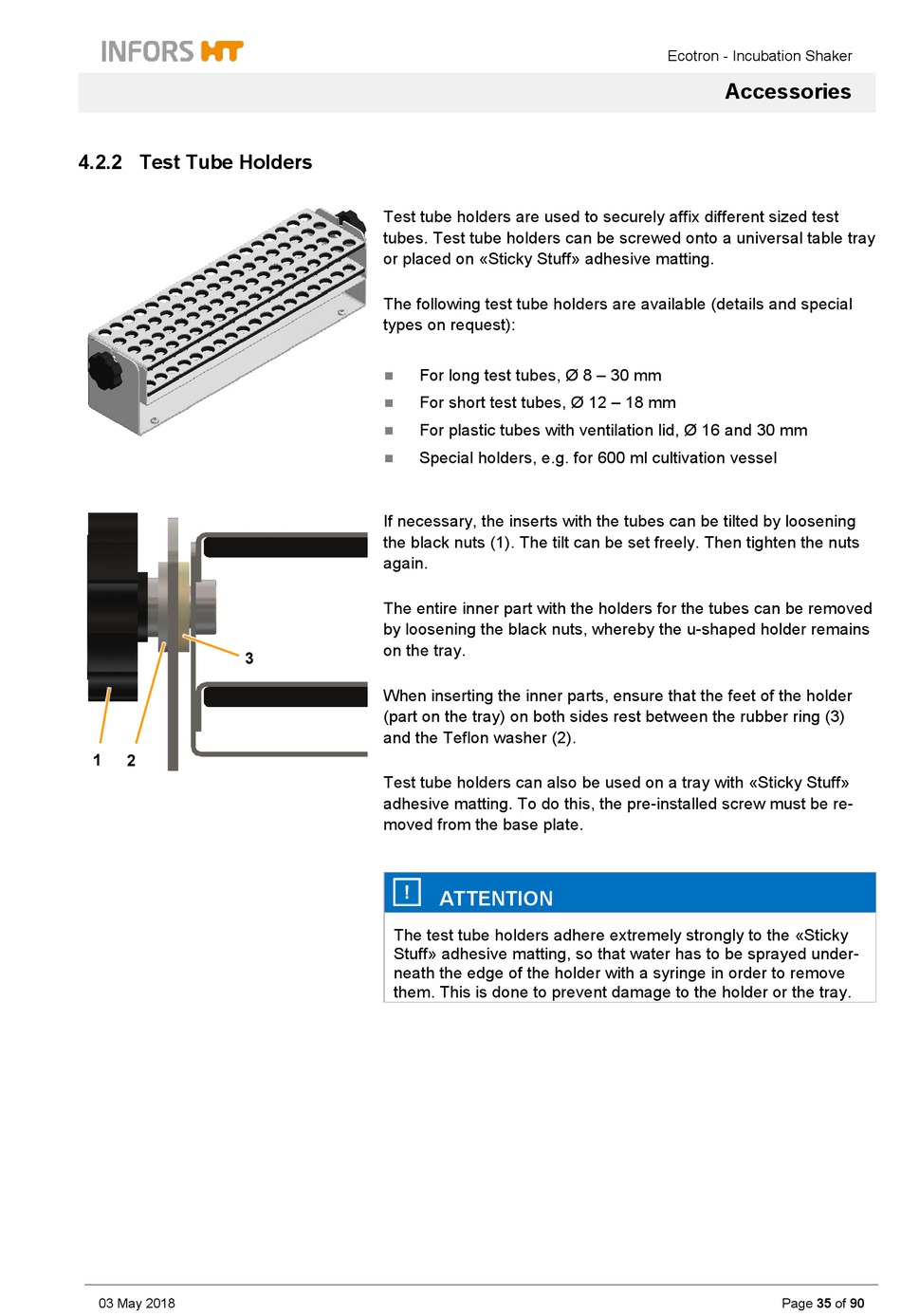

4.2.2 Test Tube Holders

3
1 2
03 May 2018
Test tube holders are used to securely affix different sized test
tubes. Test tube holders can be screwed onto a universal table tray
or placed on «Sticky Stuff» adhesive matting.
The following test tube holders are available (details and special
types on request):
For long test tubes, Ø 8 – 30 mm

For short test tubes, Ø 12 – 18 mm

For plastic tubes with ventilation lid, Ø 16 and 30 mm

Special holders, e.g. for 600 ml cultivation vessel

If necessary, the inserts with the tubes can be tilted by loosening
the black nuts (1). The tilt can be set freely. Then tighten the nuts
again.
The entire inner part with the holders for the tubes can be removed
by loosening the black nuts, whereby the u-shaped holder remains
on the tray.
When inserting the inner parts, ensure that the feet of the holder
(part on the tray) on both sides rest between the rubber ring (3)
and the Teflon washer (2).
Test tube holders can also be used on a tray with «Sticky Stuff»
adhesive matting. To do this, the pre-installed screw must be re-
moved from the base plate.
ATTENTION
The test tube holders adhere extremely strongly to the «Sticky
Stuff» adhesive matting, so that water has to be sprayed under-
neath the edge of the holder with a syringe in order to remove
them. This is done to prevent damage to the holder or the tray.
