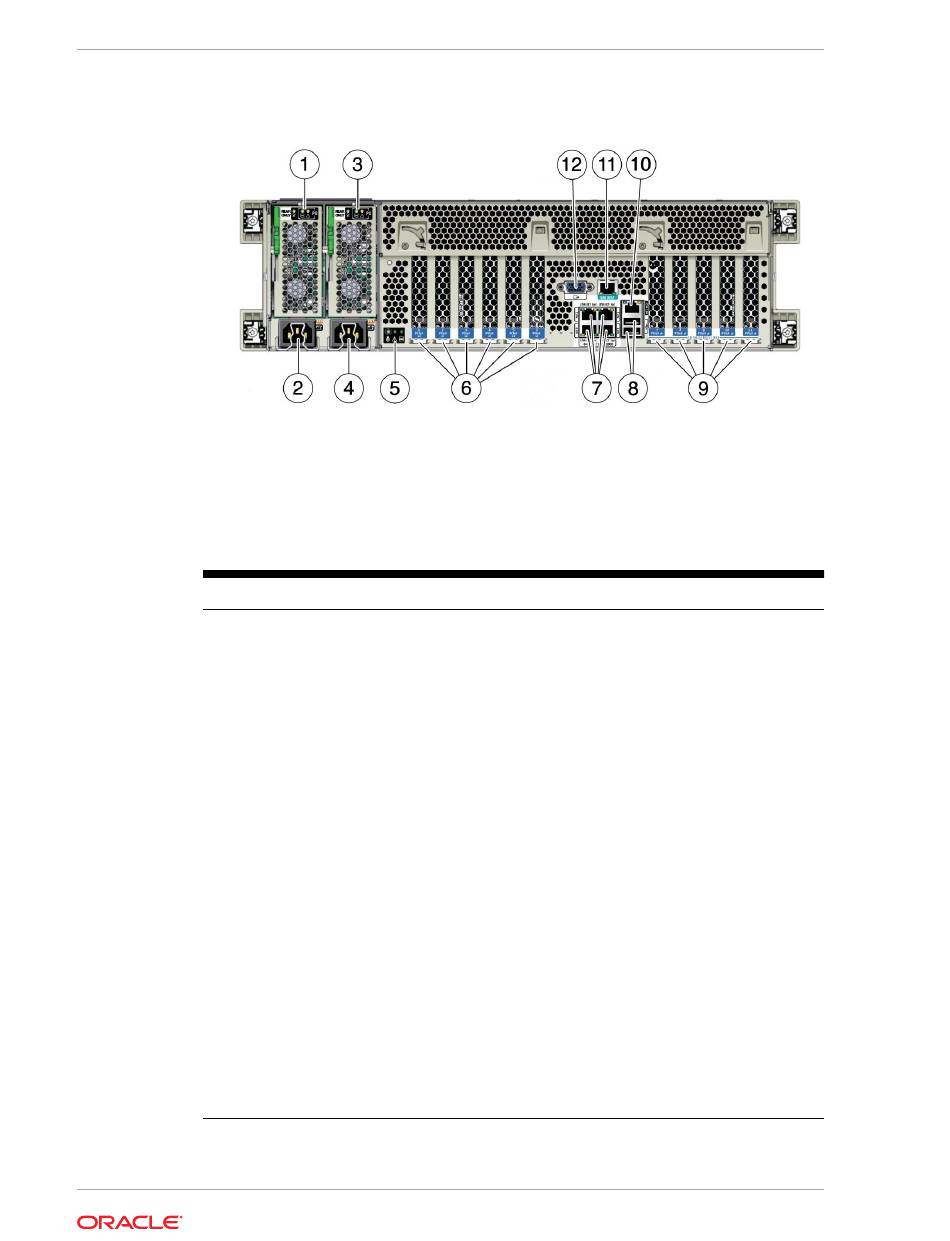

Figure 1-4 Oracle Exalytics In-Memory Machine X6-4, X5-4, and X4-4 Back
Panel
Table 1-3 describes the back panel buttons and LED indicators on the Oracle Exalytics
In-Memory Machine X6-4, X5-4, and X4-4 Back Panel.
Table 1-4 Figure Legend for Oracle Exalytics In-Memory Machine X6-4, X5-4,
and X4-4 Back Panel
Number
1
2
3
4
5
6
7
8
9
10
11
12
Oracle Exalytics In-Memory Machine Description
Description
Power supply unit 0 status indicator LEDs:
Service Action Required: amber
DC OK: green
AC OK: green or amber
Power supply unit 0 AC inlet
Power supply unit 1 status indicator LEDs:
Service Action Required: amber
DC OK: green
AC OK: green or amber
Power supply unit 1 AC inlet
System status LEDs:
Power/OK: green
Attention: amber
Locate: white
PCIe card slots 1–6
Network (NET) 10/100/1000 ports: NET0–NET3
USB 2.0 connectors (2)
PCIe card slots 7–11
Service processor (SP) network management (NET MGT) port
Serial management (SER MGT)/RJ-45 serial port
DB-15 video connector
