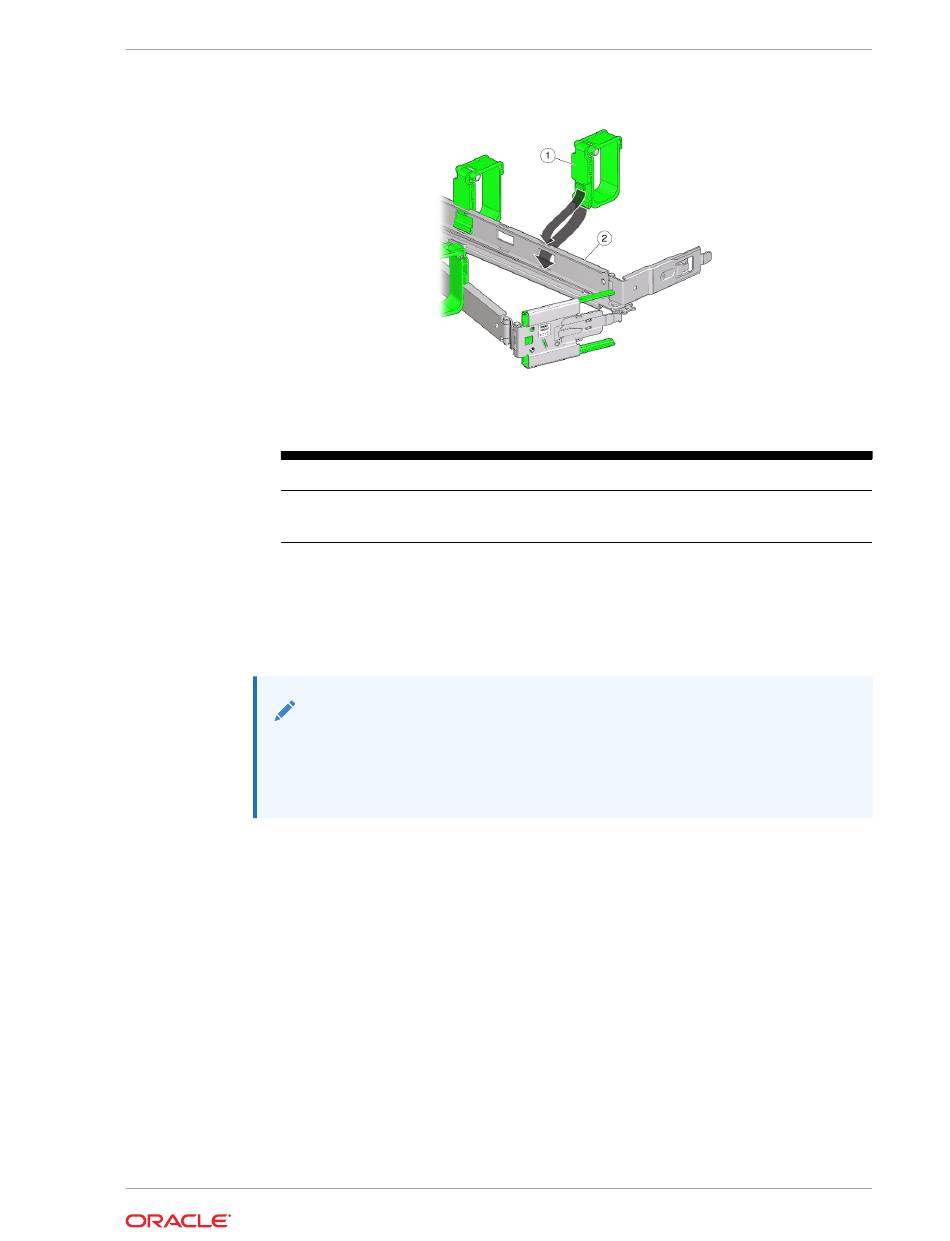

Figure 3-12
Table 3-6
Number
1
2

3.9 Verifying the Operation of the Slide Rails and CMA

Use the following procedure to ensure that the slide-rails and CMA are operating
correctly.
Note:
Two persons are recommended for this procedure: one to move the Oracle
Exalytics In-Memory Machine in and out of the rack, and one to observe the
cables and CMA.
Slowly pull the Oracle Exalytics In-Memory Machine out of the rack until the slide-
1.
rails reach their stops.
Inspect the attached cables for any binding or kinks.
2.
Verify that the CMA extends fully from the slide-rails.
3.
Push the Oracle Exalytics In-Memory Machine back into the rack, as described in
4.
the following sub-steps.
When the Oracle Exalytics In-Memory Machine is fully extended, you must release
two sets of slide-rail stops to return the Oracle Exalytics In-Memory Machine to the
rack:
•

Installing CMA Cable Straps

Figure Legend
Description
CMA cable strap
CMA arm
The first set of stops are levers, located on the inside of each slide-rail, just
behind the back panel of the Oracle Exalytics In-Memory Machine. Push in
both green levers simultaneously and slide the Oracle Exalytics In-Memory
Machine toward the rack. The Oracle Exalytics In-Memory Machine will slide in
Verifying the Operation of the Slide Rails and CMA
Chapter 3
