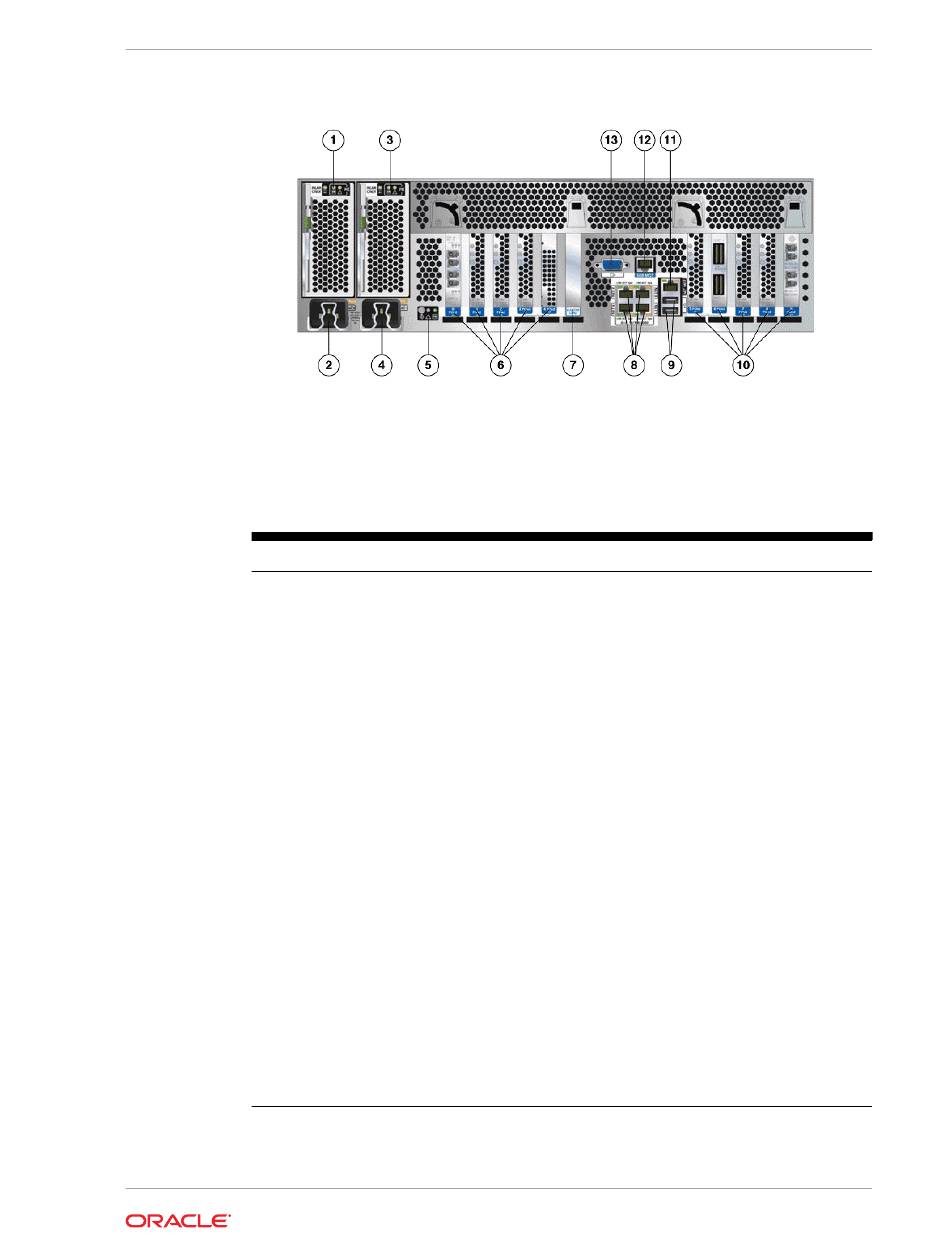

Figure 1-3

Oracle Exalytics In-Memory Machine X3-4 Back Panel

Table 1-3 describes the back panel buttons and LED indicators.
Table 1-3 Figure Legend
Number Description
1 Power supply unit 0 status indicator LEDs:
Service Action Required: amber
DC OK: green
AC OK: green or amber
2 Power supply unit 0 AC inlet
3 Power supply unit 1 status indicator LEDs:
Service Action Required: amber
DC OK: green
AC OK: green or amber
4 Power supply unit 1 AC inlet
5 System status LEDs:
Power/OK: green
Attention: amber
Locate: white
6 PCIe card slots 0–4
7 Cluster card slot
8 Network (NET) 10/100/1000 ports: NET0–NET3
9 USB 2.0 connectors (2)
10 PCIe card slots 5–9
11 Service processor (SP) network management (NET MGT) port
12 Serial management (SER MGT)/RJ-45 serial port
13 DB-15 video connector
