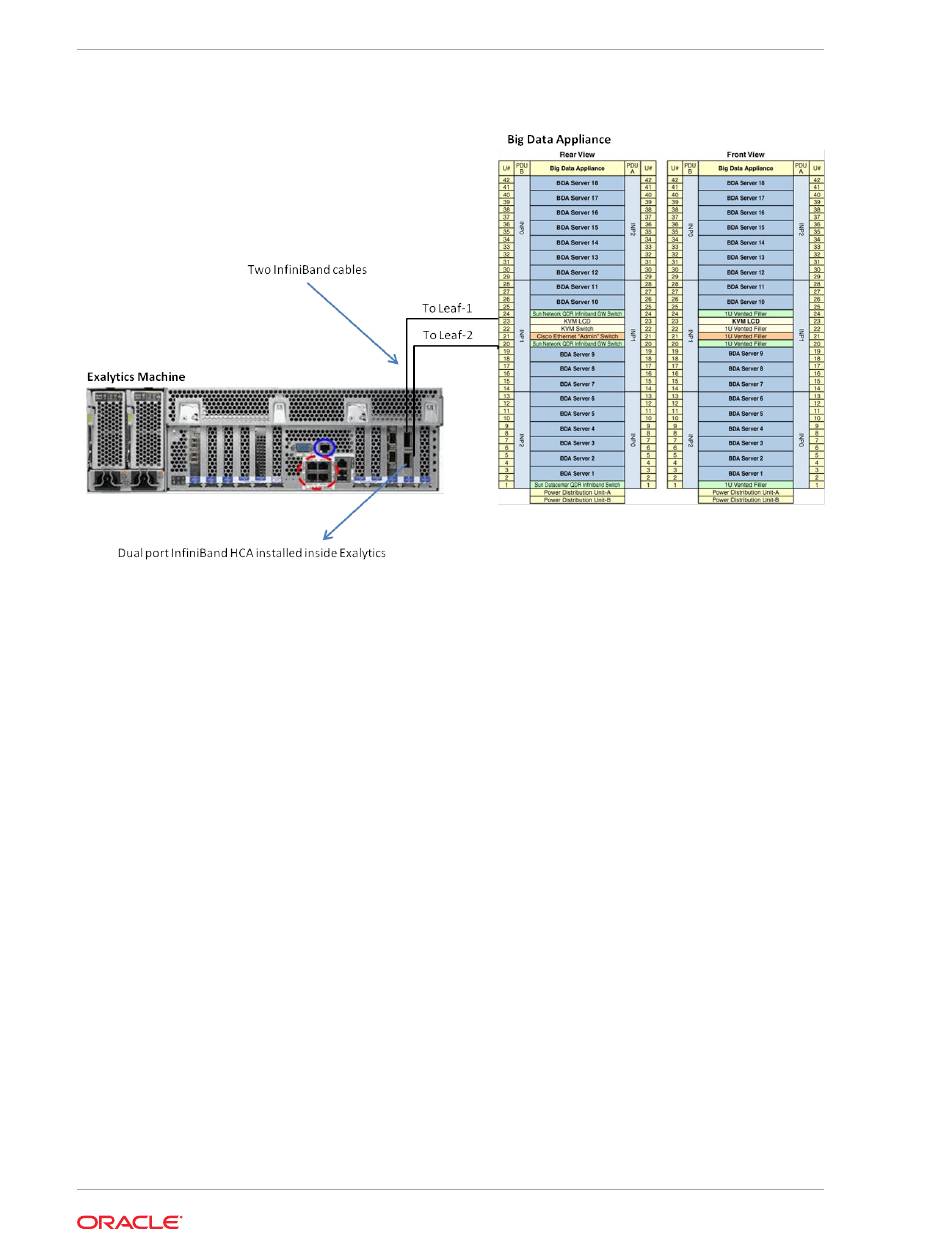

Figure 8-1

Physical Connection

8.4 InfiniBand Connection Validation (Layer-2)

Once the cables are connected and you can see green LEDs on the ports, you must
validate the InfiniBand connection.
Log in to the Oracle Big Data Appliance compute node or Exalytics machine.
1.
From the Linux root shell, run the
2.
connected (Exalytics/Oracle Big Data Appliance) machine is visible.
On the Exalytics machine, run the
3.
an active Subnet Manager is present, then the ports should be Active.
[root@exalytics ~]# ibstat
CA 'mlx4_0'
CA type: MT26428
Number of ports: 2
Firmware version: 2.7.8130
Hardware version: b0
Node GUID: 0x0021280001efe984
System image GUID: 0x0021280001efe987
Port 1:
State: Active
Physical state: LinkUp
Rate: 40
Base lid: 209
LMC: 0
SM lid: 187
Capability mask: 0x02510868
Port GUID: 0x0021280001efe985
InfiniBand Connection Validation (Layer-2)
command to verify if the newly
ibhosts
command to see the local ports' status. If
ibstat
