Position a slide-rail assembly in your rack, so that the slide-rail assembly front
2.
bracket is on the outside of the front rack post and the slide-rail assembly rear
bracket is on the inside of the rear rack post, as shown in
Align the slide-rail assembly mounting pins with the front and rear rack post
3.
mounting holes. Then lock the assembly into place by pushing the assembly
toward the rear of the rack until the mounting pins engage the rack, as shown in
Figure 3-4.
You will hear an audible click when the mounting pins engage the rack.
Note:
The slide assembly mounting pins accommodate either 9.5 mm square
mounting holes or M6 round mounting holes. No other mounting hole
sizes are supported.

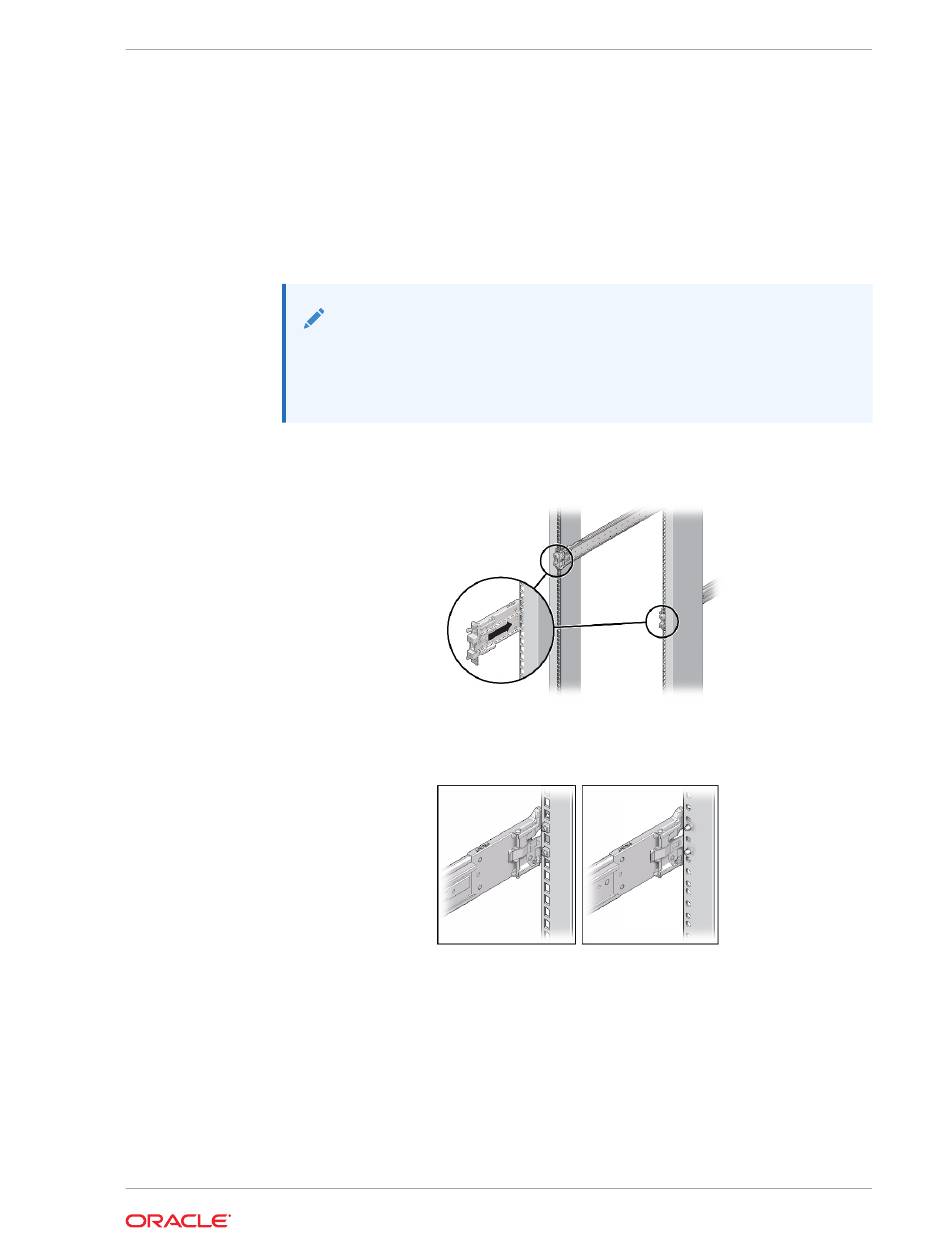

Figure 3-3

Installing Slide-Rail Assemblies Onto the Rack

Figure 3-4

Slide-Rail Mounting Pins

(Optional) If you choose to attach the slide-rail assembly with mounting screws
4.
and cage nuts, insert the M6 mounting screws through both front and rear slide-rail
brackets and rack posts, then secure them with the caged nuts. See
Attaching the Slide-Rail Assemblies to the Rack
Figure 3-3.
Figure
Chapter 3
3-5.
3-5
