5 How to programme the frequency converter
5.1.8 Main Menu Mode
Both the GLCP and NLCP provide access to the main menu mode. Select
the Main Menu mode by pressing the [Main Menu] key. Illustration 6.2
shows the resulting read-out, which appears on the display of the GLCP.
Lines 2 through 5 on the display show a list of parameter groups which
can be chosen by toggling the up and down buttons.
5 Each parameter has a name and number which remain the same regardless of the programming mode. In the Main Menu mode, the parameters are
divided into groups. The first digit of the parameter number (from the left) indicates the parameter group number.
All parameters can be changed in the Main Menu. The configuration of the unit (par. 1-00
for programming. For example, selecting Closed Loop enables additional parameters related to closed loop operation. Option cards added to the unit
enable additional parameters associated with the option device.
5.1.9 Parameter Selection
In the Main Menu mode, the parameters are divided into groups. Select
a parameter group by means of the navigation keys.
The following parameter groups are accessible:
After selecting a parameter group, choose a parameter by means of the
navigation keys.
The middle section on the GLCP display shows the parameter number and
name as well as the selected parameter value.
98
VLT AQUA High Power Operation Instructions

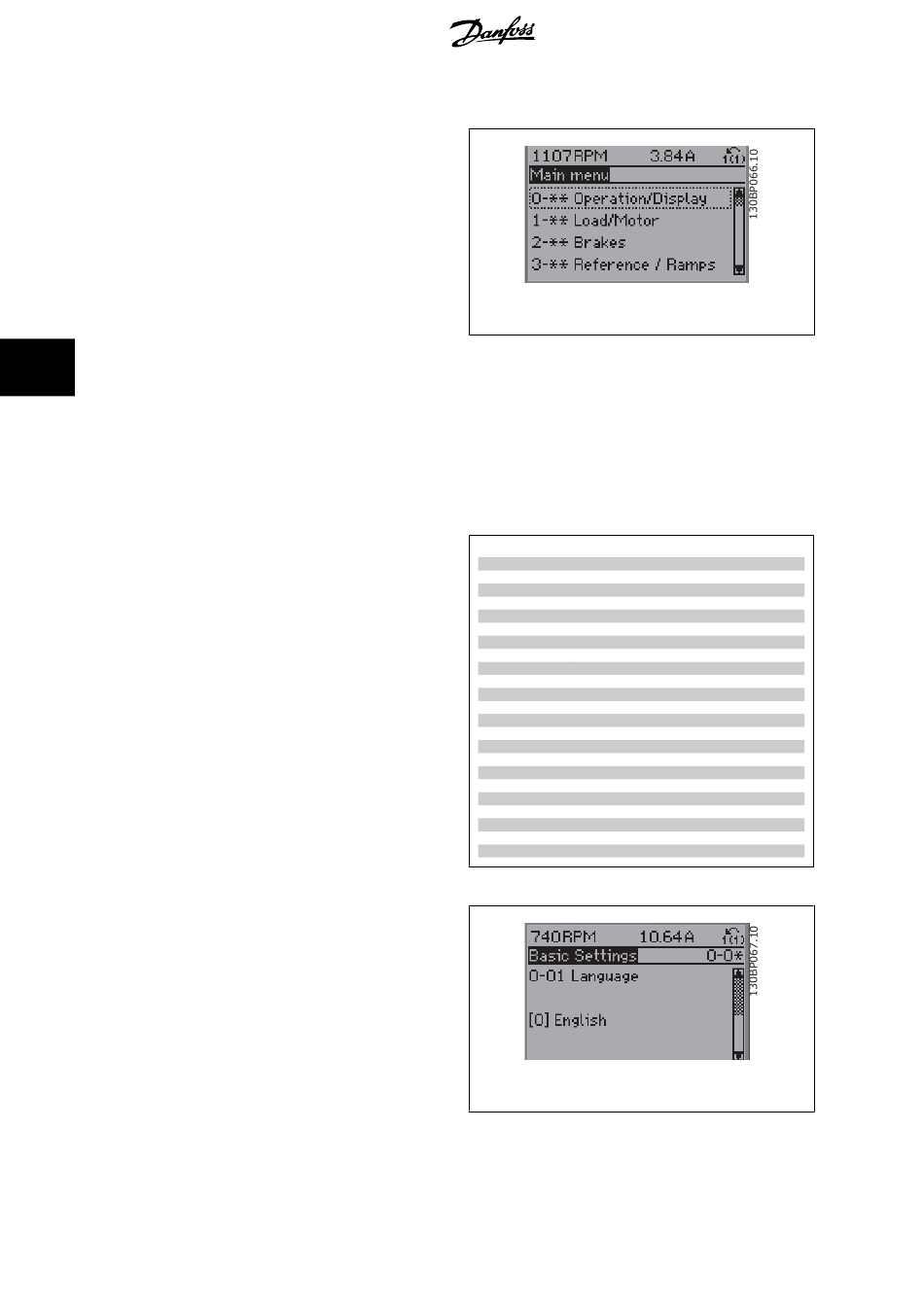

Illustration 5.9: Display example.
Configuration Mode
Group no.
0
1
2
3
4
5
6
8
9
10
11
13
14
15
16
18
20
21
22
23
24
25
26
Table 5.3: Parameter groups.
Illustration 5.10: Display example.
®
MG.20.P3.02 - VLT is a registered Danfoss trademark
) will determine other parameters available
Parameter group:
Operation/Display
Load/Motor
Brakes
References/Ramps
Limits/Warnings
Digital In/Out
Analog In/Out
Comm. and Options
Profibus
CAN Fieldbus
LonWorks
Smart Logic
Special Functions
Drive Information
Data Readouts
Data Readouts 2
Drive Closed Loop
Ext. Closed Loop
Application Functions
Time-based Functions
Fire Mode
Cascade Controller
Analog I/O Option MCB 109
