3 How to Install
3.3.4 Terminal Locations - frame size E
Terminal locations - E1
Take the following position of the terminals into consideration when designing the cable access.
3

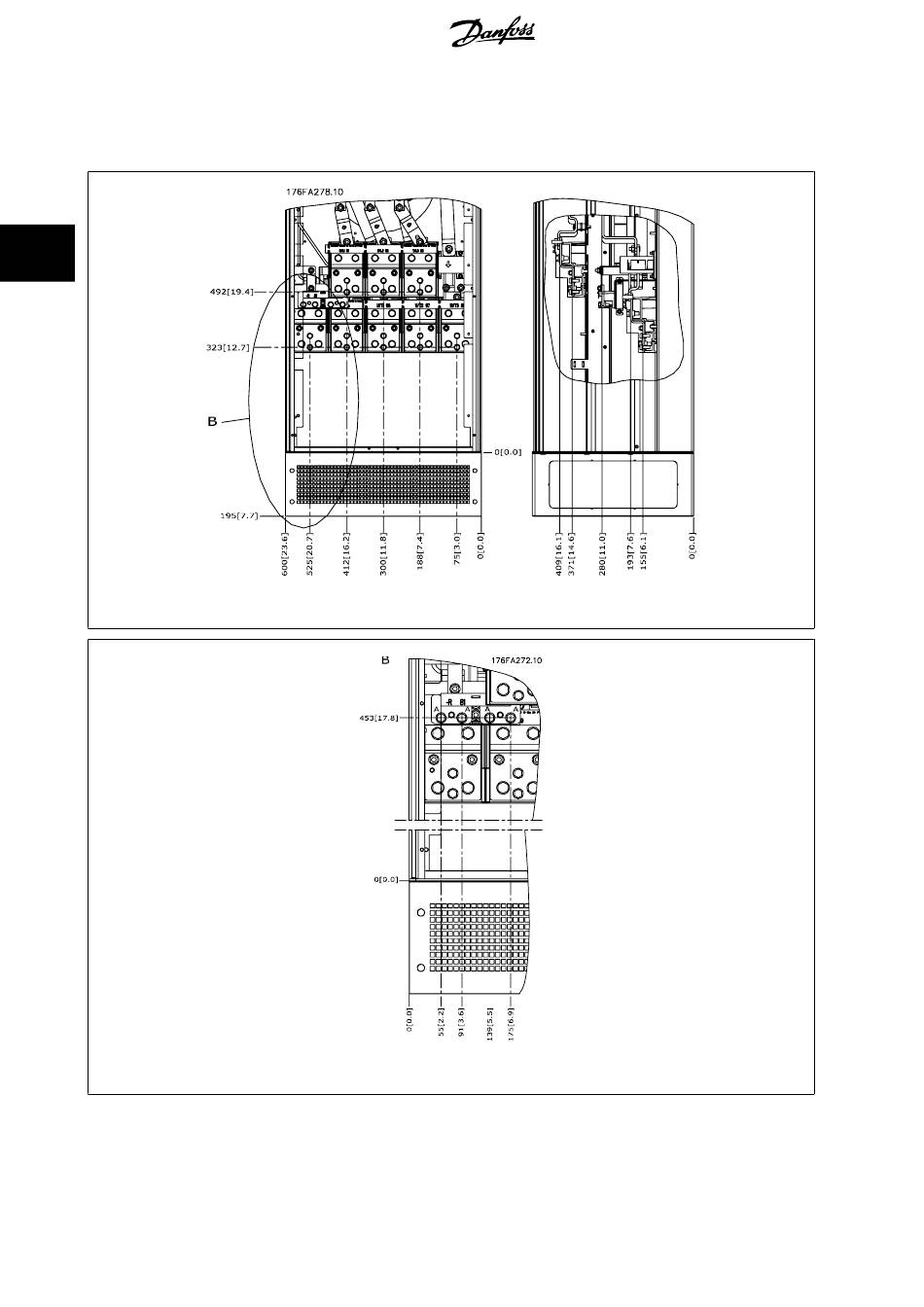

Illustration 3.12: IP21 (NEMA Type 1) and IP54 (NEMA Type 12) enclosure power connection positions
Illustration 3.13: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection positions (detail B)
28
VLT AQUA High Power Operation Instructions
®
MG.20.P3.02 - VLT
is a registered Danfoss trademark
