3 How to Install

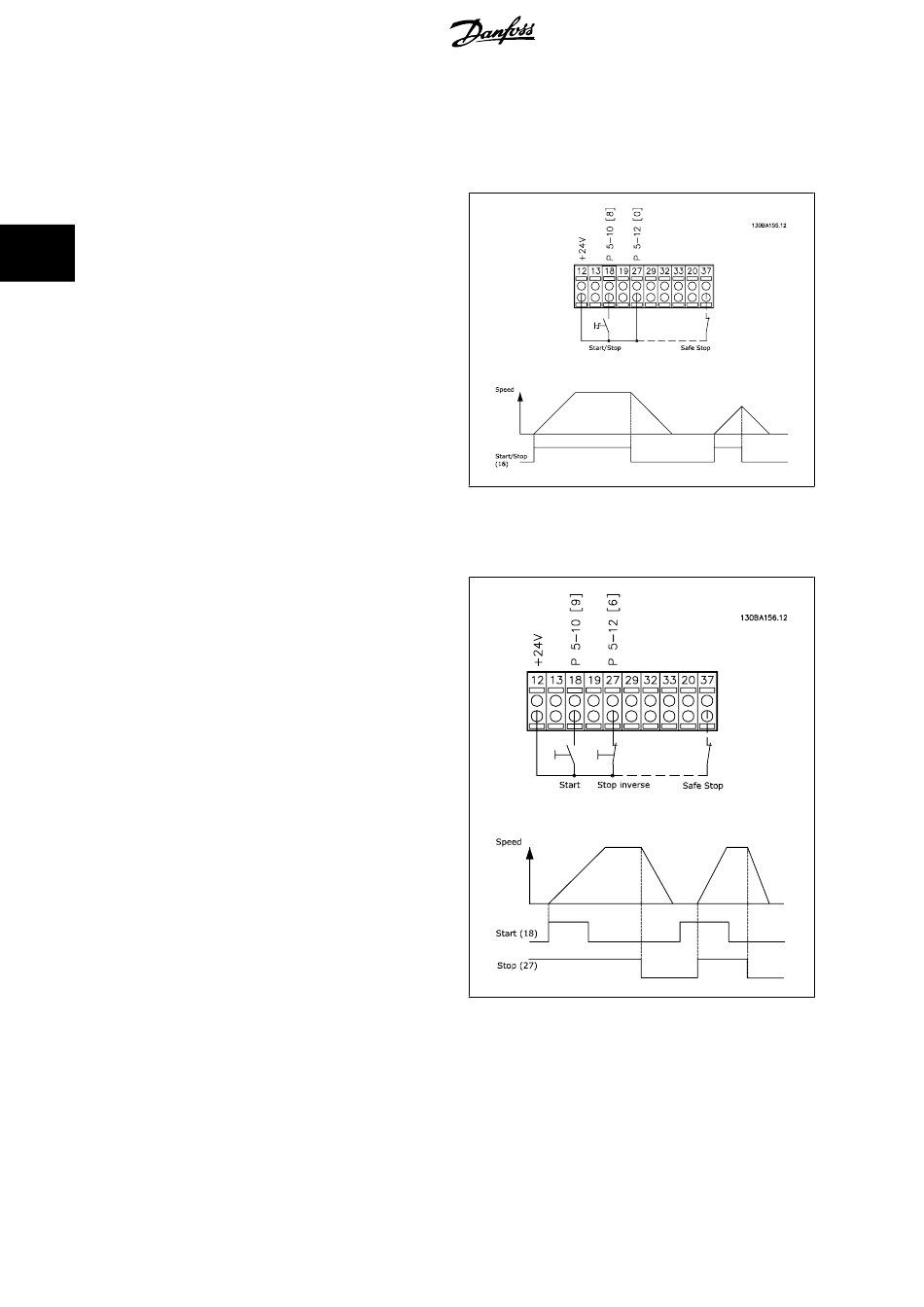

3.7 Connection Examples

3.7.1 Start/Stop

Terminal 18 = par. 5-10 Terminal 18 Digital Input
Terminal 27 = par. 5-12 Terminal 27 Digital Input
coast inverse
fault )
3
Terminal 37 = Safe stop

3.7.2 Pulse Start/Stop

Terminal 18 = par. 5-10 Terminal 18 Digital Input
Terminal 27= par. 5-12 Terminal 27 Digital Input
Terminal 37 = Safe stop
72
[8] Start
[0] No operation (De-
[9] Latched start
[6] Stop inverse
®
