3 How to Install
3.3.5 Terminal Locations - frame size F
NB!
The F frames have four different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the right and rectifier cabinet
on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an F1 with an additional options
cabinet. The F4 is an F2 with an additional options cabinet.
3

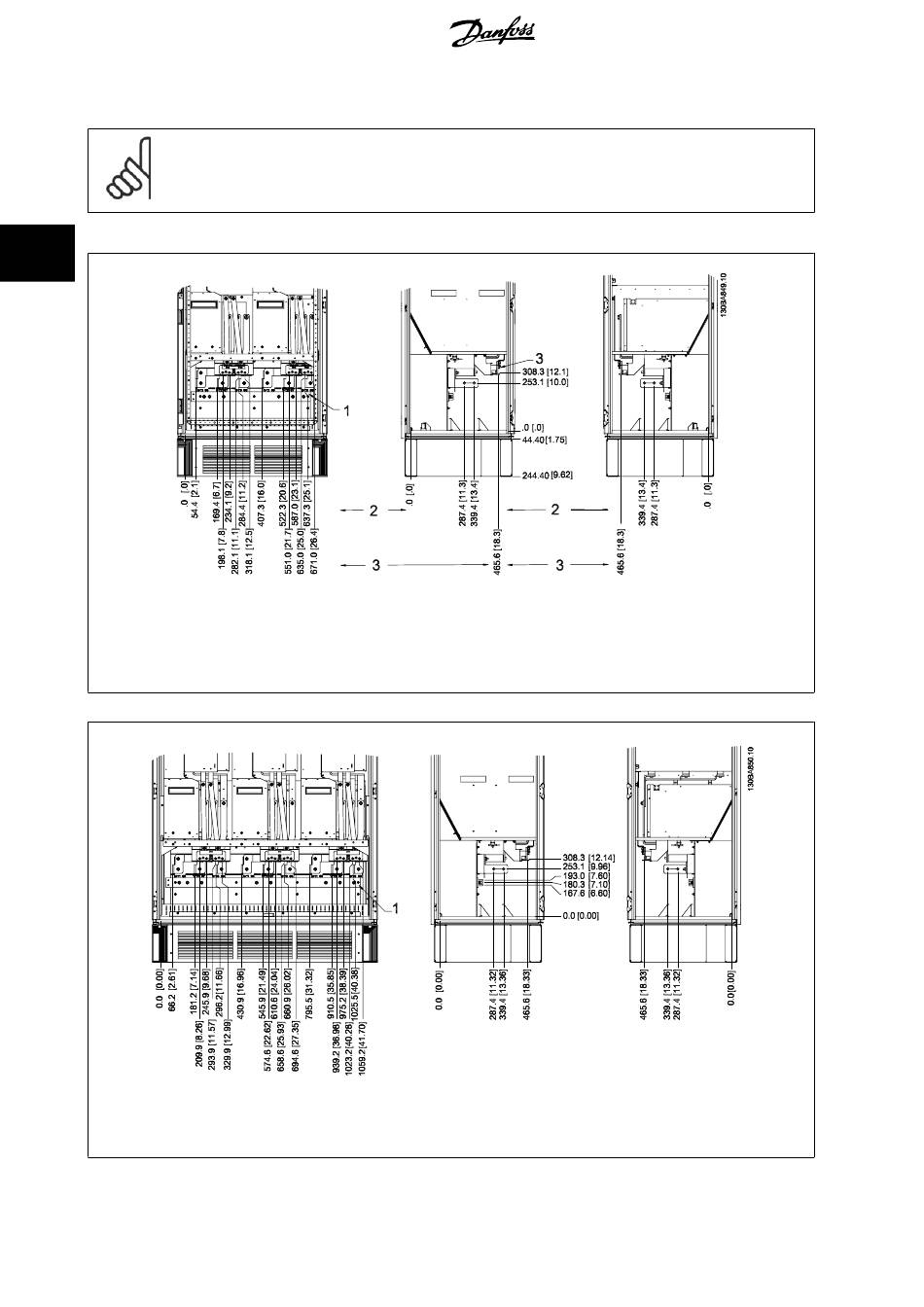

Terminal locations - frame size F1 and F3
Illustration 3.19: Terminal locations - Inverter Cabinet - F1 and F3 (front, left and right side view)
1) Earth ground bar
2) Motor terminals
3) Brake terminals
Terminal locations - frame size F2 and F4
Illustration 3.20: Terminal locations - Inverter Cabinet - F2 and F4 (front, left and right side view)
1) Earth ground bar
32
VLT AQUA High Power Operation Instructions
®
MG.20.P3.02 - VLT
