VLT AQUA High Power Operation Instructions

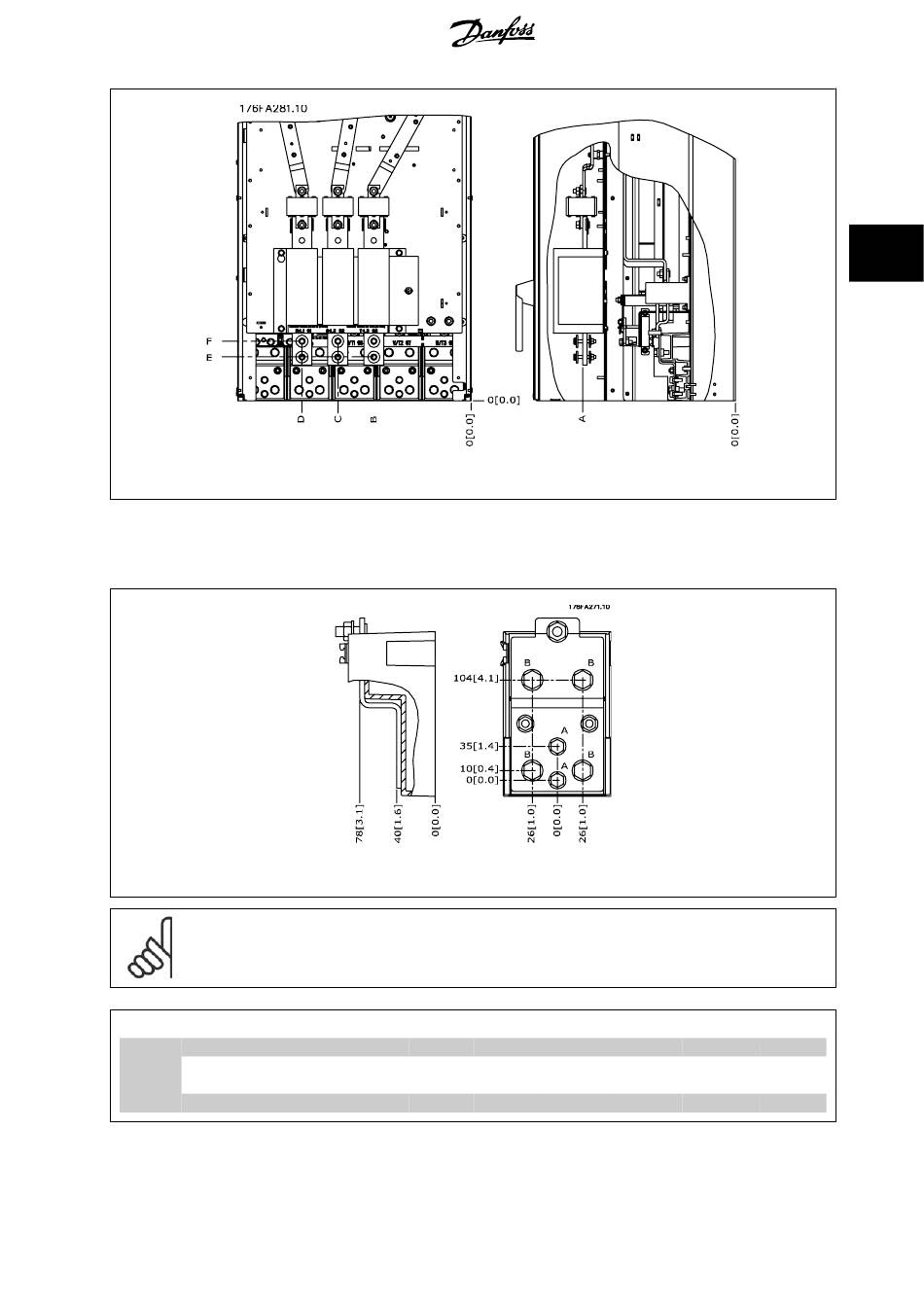

Illustration 3.17: IP00 enclosure power connections positions of disconnect switch
Note that the power cables are heavy and difficult to bend. Consider the optimum position of the frequency converter for ensuring easy installation of
the cables.
Each terminal allows use of up to 4 cables with cable lugs or use of standard box lug. Earth is connected to relevant termination point in the drive.
Illustration 3.18: Terminal in details
NB!
Power connections can be made to positions A or B
Frame size UNIT TYPE
IPOO/CHASSIS
250/315 kW (400V) AND 355/450-500/630 KW
E2
(690 V)
315/355-400/450 kW (400V)
DIMENSION FOR DISCONNECT TERMINAL
A B
381 (15.0) 245 (9.6)
383 (15.1) 244 (9.6)
®
MG.20.P3.02 - VLT is a registered Danfoss trademark
C D E
334 (13.1) 423 (16.7) 256 (10.1)
334 (13.1) 424 (16.7) 109 (4.3)
3 How to Install
3
F
N/A
149 (5.8)
