3 How to Install
3

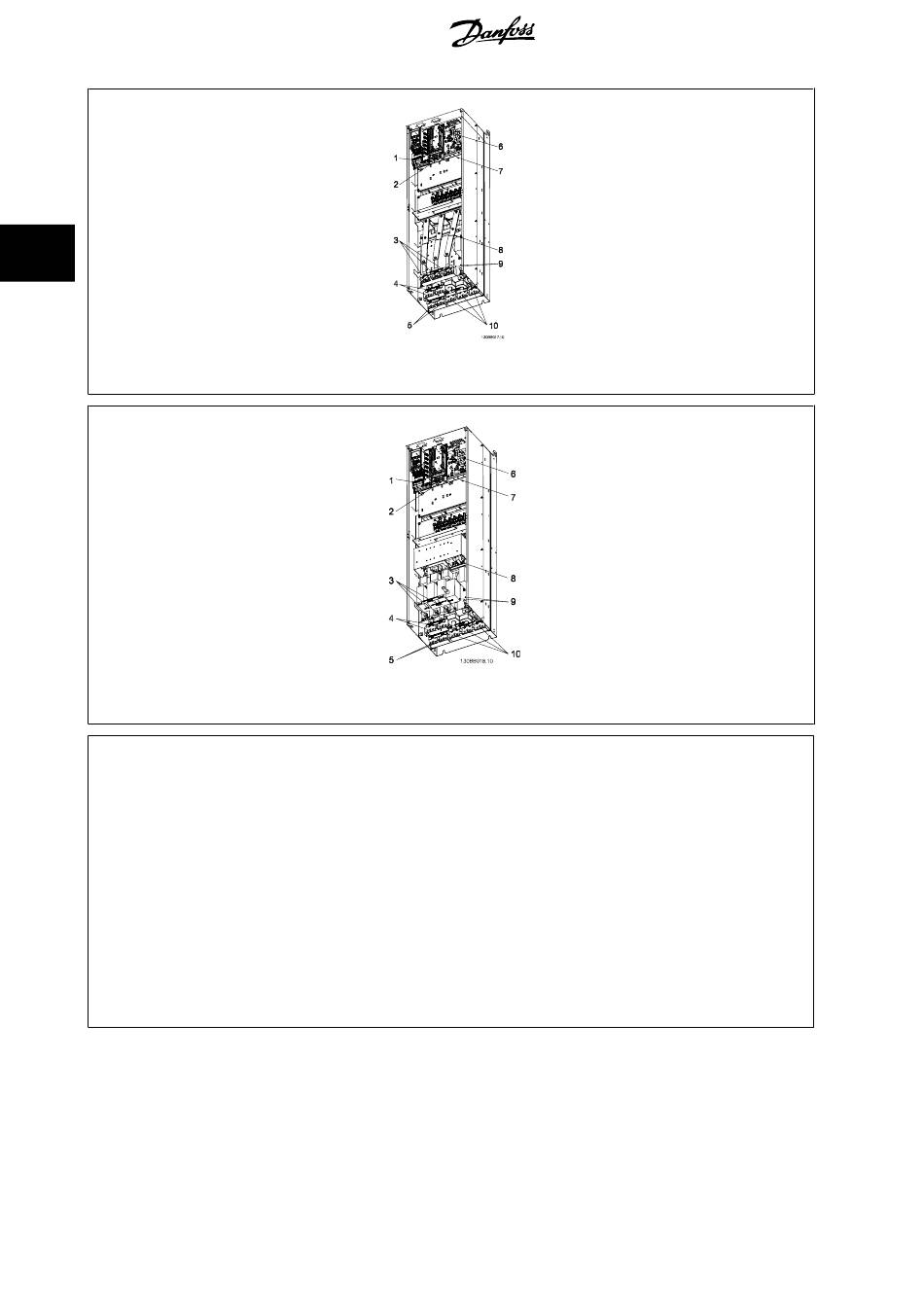

Illustration 3.38: Compact IP 00 (Chassis), frame size D3
Illustration 3.39: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size D4
1) AUX Relay
01 02
04 05
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Load sharing
-DC +DC
88 89
52
03
06
MG.20.P3.02 - VLT
VLT AQUA High Power Operation Instructions
5) Brake
-R +R
81 82
6) SMPS Fuse (see fuse tables for part number)
7) AUX Fan
100 101 102 103
L1 L2 L1 L2
8) Fan Fuse (see fuse tables for part number)
9) Mains ground
10) Motor
U V W
96 97 98
T1 T2 T3
®
