3 How to Install
3

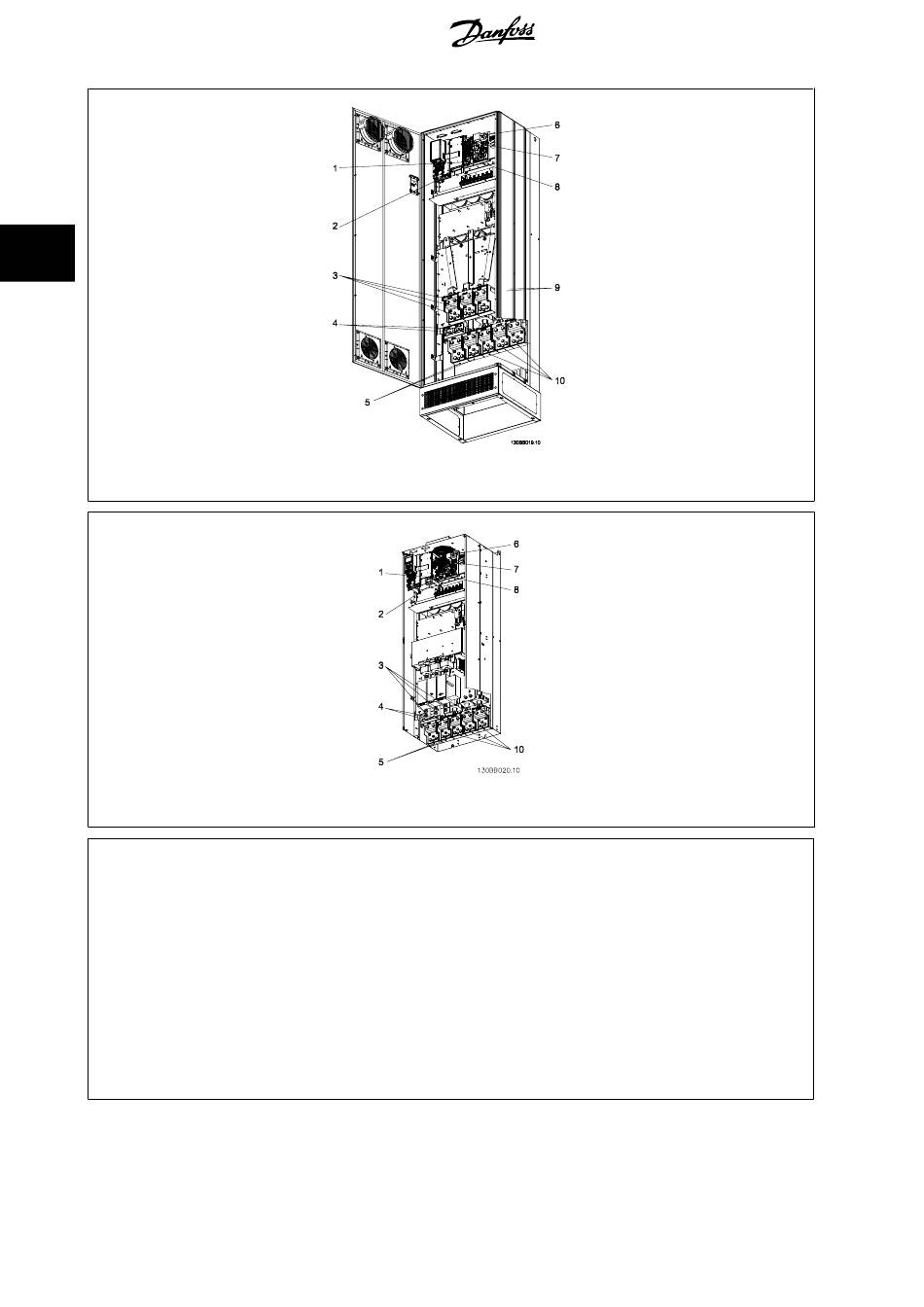

Illustration 3.42: Compact IP 21 (NEMA 1) and IP 54 (NEMA 12) frame size E1
Illustration 3.43: Compact IP 00 (Chassis) with disconnect, fuse and RFI filter, frame size E2
1) AUX Relay
01 02
04 05
2) Temp Switch
106 104 105
3) Line
R S T
91 92 93
L1 L2 L3
4) Brake
-R +R
81 82
54
03
06
MG.20.P3.02 - VLT
VLT AQUA High Power Operation Instructions
5) Load sharing
-DC +DC
88 89
6) SMPS Fuse (see fuse tables for part number)
7) Fan Fuse (see fuse tables for part number)
8) AUX Fan
100 101 102 103
L1 L2 L1 L2
9) Mains ground
10) Motor
U V W
96 97 98
T1 T2 T3
®
