Call Button And Indicator Light; Dialing From The Keypad - CyberData 011214 Operation Manual

2.2.1 Call Button and Indicator Light

2.2.1.1 Indicator Light Function
•
•
•
•
•
•

2.2.2 Dialing from the Keypad

•
Operations Guide
Upon initial power or reset, the Call Button LED will illuminate.
During network setup the Call Button LED will blink 10 times per second until the device can find
a network address. This can take from 5 to 60 seconds.
When the software has finished initialization, the Call Button LED will blink twice.
When a call is established (not just ringing), the Call Button LED will blink.
On the Device Configuration Page, there is an option called Button and Keypad Lit when
Idle. This option sets the normal state for the indicator light. The indicator light will still blink
during initialization and calls.
The indicator light flashes briefly at the beginning of RTFM mode.

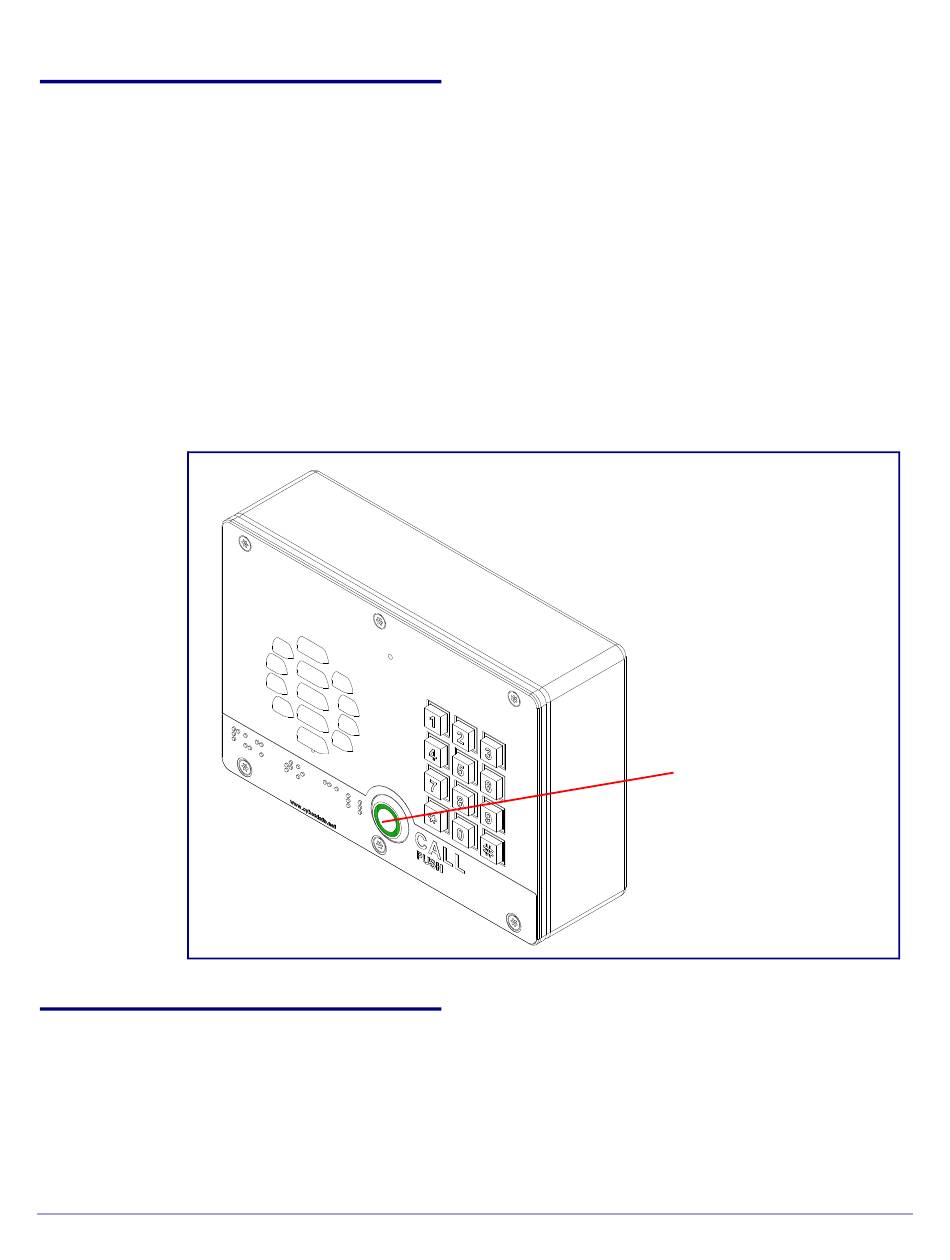

Figure 2-2. Call Button and Indicator Light
See the Enable Telephone Operation
Parameters".
Installing the SIP Outdoor Intercom with Keypad
setting in Section 2.4.6, "Configure the Button
931562B
Intercom Components
Call button and indicator light
