CyberData 11214 Installation Quick Reference

Rear Conduit Network Cable Entry Restrictions
With Shroud
Spacer
1/2" Conduit
Shroud
Connector
(Optional)
(Not Provided)
1/2" Conduit
(Not Provided)
Network Cable
(Not Provided)
Service Loop Cable Routing
Ground Cable
Route Cable(s) inside Gang Box to
Creates Service Loop
Ground Lug
Ground Cable
(Not Provided)
Nut
(to Ground Lug
Inside 3-Gang Box
Contacting CyberData
Corporate Headquarters Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
CyberData Corporation
Web: http://www.cyberdata.net/support/contactsupportvoip.html
3 Justin Court
RMA Dept: (831) 373-2601 ext. 136
Monterey, CA 93940, USA
Email: RMA@CyberData.net
RMA Status: http://www.cyberdata.net/support/rmastatus.html
Phone: 831-373-2601
Fax: 831-373-4193
Warranty and RMA information is available at the following website:
www.CyberData.net
http://www.cyberdata.net/support/warranty/index.html
© 2012, CyberData Corporation, ALL RIGHTS RESERVED 930520A
Without Shroud
1/2" Conduit
Spacer
Connector
(Not Provided)
1/2" Conduit
(Not Provided)
Network Cable
(Not Provided)
Network Cable
Route Cable(s) inside Gang Box to
Creates Service Loop
Network Cable
(Not Provided)
Quick Reference
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
Installation Quick Reference
The IP Endpoint Company

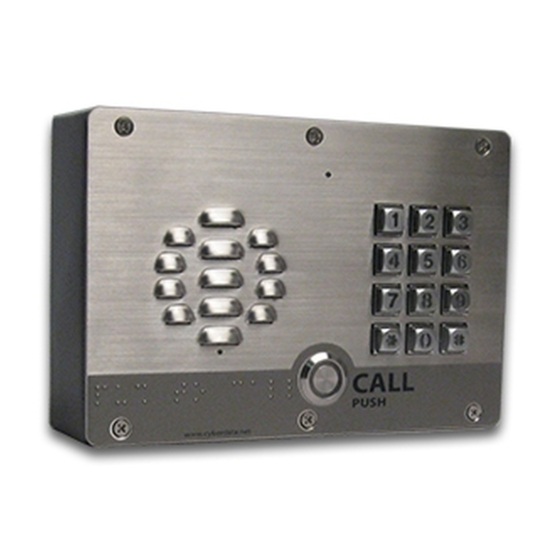

VoIP V3 Outdoor Keypad Intercom
SIP Compliant
011214
The CyberData SIP-enabled VoIP V3 Outdoor Keypad Intercom is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP
(VoIP) two-way communications device that easily connects into existing local area networks (LANs) with a single cable
connection.
Parameter
IP Addressing
a
IP Address
Web Access Username
Web Access Password
a
Subnet Mask
a
Default Gateway
a. Default if there is not a DHCP server present.
Getting Started
• Download the VoIP V3 Outdoor Keypad Intercom Operations Guide PDF file from the Documents page at:
http://www.cyberdata.net/products/voip/digitalanalog/intercomkeypadv3/index.html
• Create a plan for the locations of your Intercoms.
• Prior to installation, consult local building and electrical code requirements.
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
(1) Intercom Assembly
Mounting Component Security Torx Key
Quick Reference
Factory Default Setting
DHCP
10.10.10.10
admin
admin
255.0.0.0
10.0.0.1
Accessories
Carriage Bolt Bolts
531085B Hole Plug Assembly
Spacer for Half-inch Set Screw Connector
Carriage Bolt Nuts
Accessory Kit
Carriage Bolt Washers
Accessory Kit Security Torx MS
