2.3.3 Wiring the Circuit

2.3.3.1 Devices Less than 1A at 30 VDC
If the power for the device is less than 1A at 30 VDC and is not an inductive load, then see
Figure 2-5
When configuring with an inductive load, please use an intermediary relay with a High PIV Ultrafast
Switching Diode. We recommend using the Network Dual Door Strike Relay (CD# 011375) (see
Section 2.3.3.2, "Network Dual Door Strike Relay Wiring Diagram with External Power
Pin 3 - Relay Common
Pin 4 - Relay Normally Open Contact
Pin 5 - Sense Input
Pin 6 - Sense Ground
8
Terminal Block of the CyberData Device
Operations Guide
for the wiring diagram.

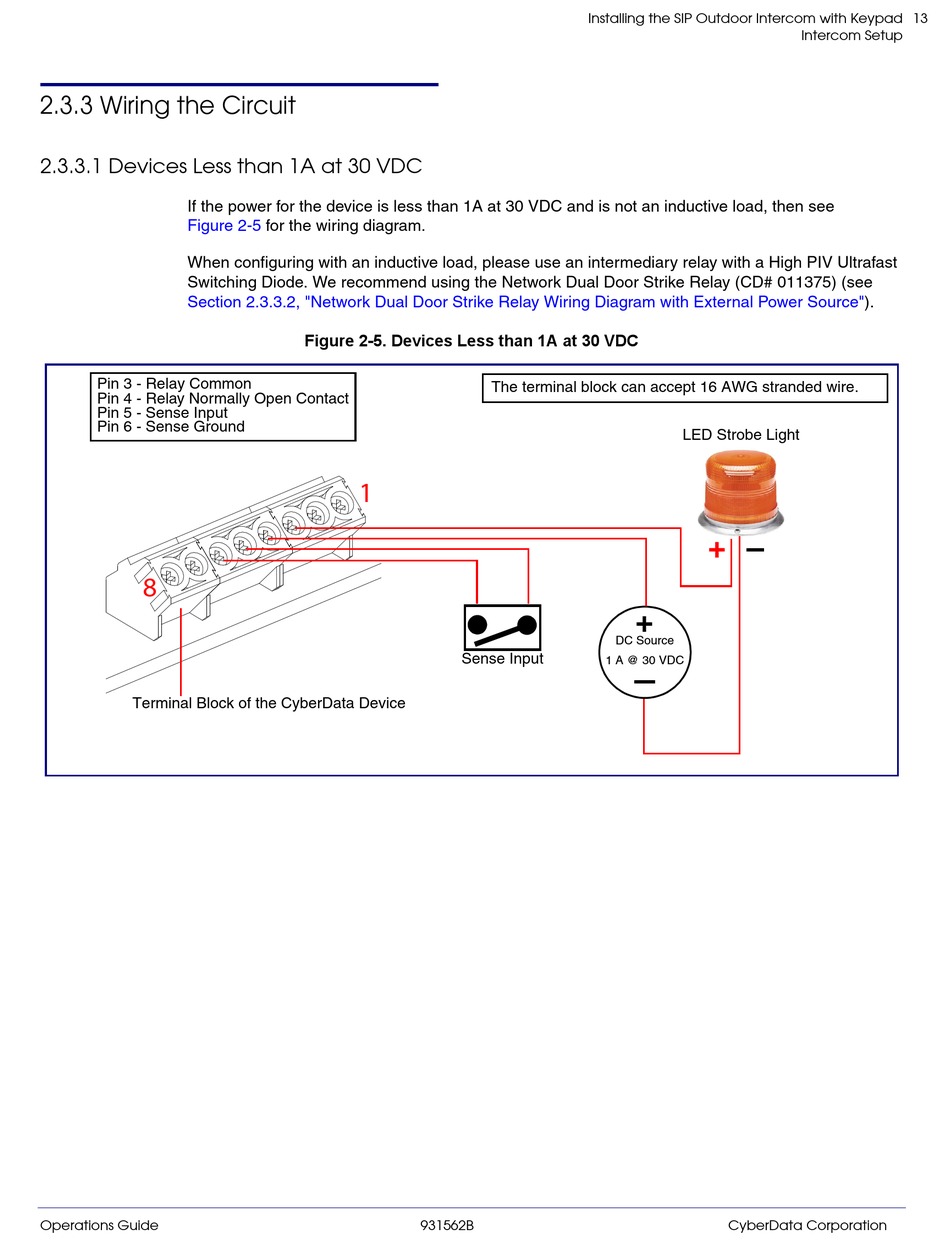

Figure 2-5. Devices Less than 1A at 30 VDC
1
931562B
Installing the SIP Outdoor Intercom with Keypad
The terminal block can accept 16 AWG stranded wire.
+
DC Source
Sense Input
1 A @ 30 VDC
Intercom Setup
Source").
