2.4.16 Configure the Door Strike Relay

The Door Strike Relay (DSR) is a network device designed to control an electronic door strike. The
DSR is meant to be used as a replacement for (or an addition to) the on-board relay. In addition to
being a drop-in 12 Amp relay, the DSR can monitor and record when the door is open or closed.
The DSR can be configured to trigger in the following ways: on the entry of a DTMF code, manually
through the web interface, or by using a Windows application.
The DSR must be running firmware version 4.8 or later to work with this CyberData device. If you
have an older version of the firmware, then please contact CyberData Technical Support. The
version number appears in the
1. Click on the DSR menu button to open the DSR page
Operations Guide
Discovered Remote Relays

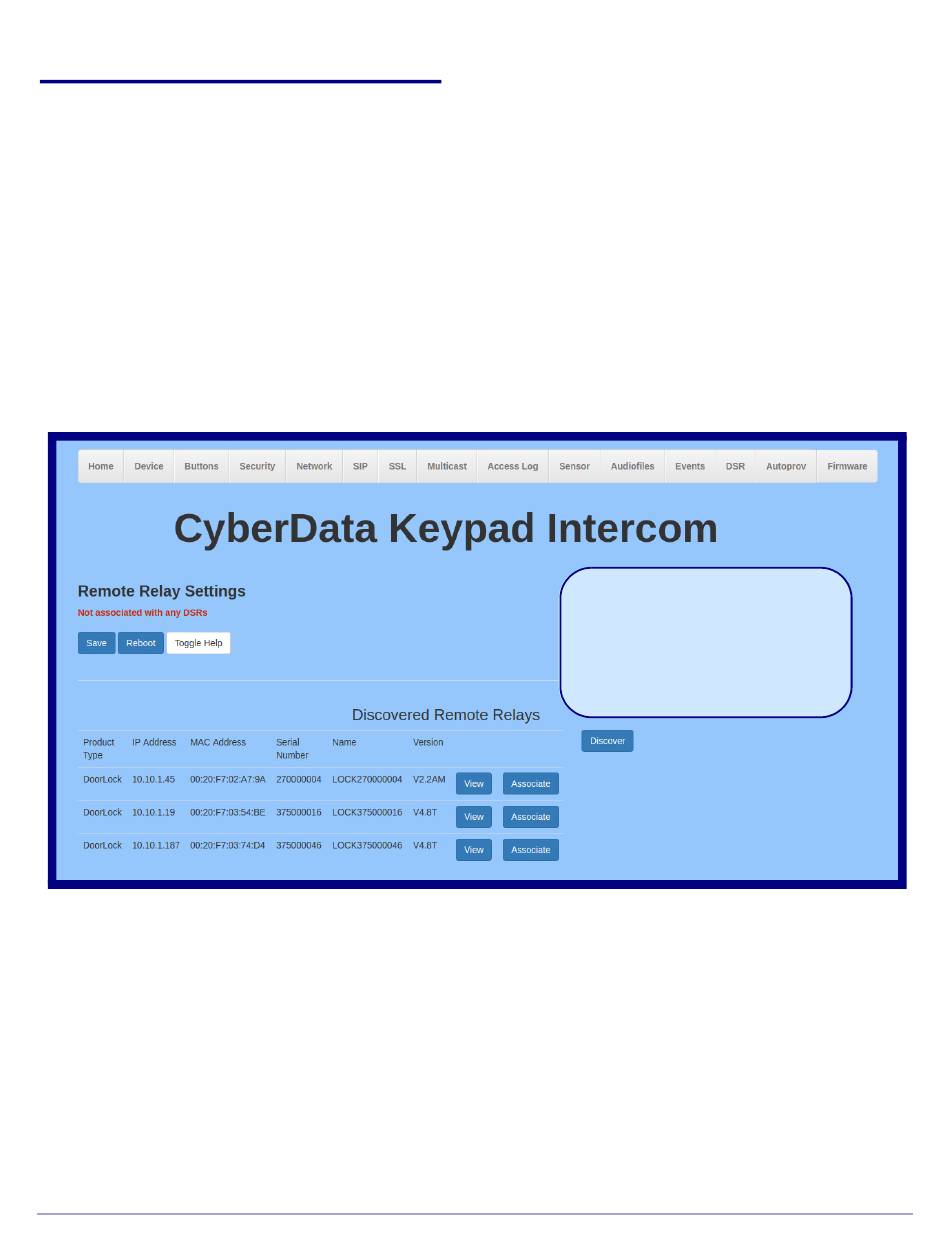

Figure 2-40. DSR Page (not associated with any DSRs)
931562B
Installing the SIP Outdoor Intercom with Keypad
section on the DSR page
(Figure 2-40).
This is the default page when the
device is not associated with any
.
DSRs Please see the Dual Door
Strike Relay Operations Guide for
more settings and options on the
DSR page when the device is
associated with a DSR.
CyberData Corporation
81
Intercom Setup
(Figure 2-40).
