CyberData 011209 Installation Quick Reference

Wall Mounting Options
Mounting Screw &
Plastic Ribbed Anchor
Cable
Entry
Slot
Mounting
Screw (3x)
Gang Box Mounting Options
Backplate
Screw Accessory Kit
Two Gang Box use four
Single Gang Box use two
Cable
Entry
Slot
Ground
Wire
Mounting
Screw (3x)
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
Network
Cable
to J1
Pre Drill Holes
on Wall
Slots
Closed
Wall Cutout
Ground
Wire
Backplate
Remove Screw & Nut
Slots
Before Installation
Opening
Loop Wire
Clockwise
Ground
Wire
Wall Cutout
Wall Cutout
Cable
Slots
Closed
Backplate accept
Single Gang Box
or Two Gang Box
Remove Screw & Nut
Before Install to Gang Box
In Two Gang Box Mounting
Move Ground Cable to Center Hole
Loop Wire
Clockwise
930810M Quick Reference
The IP Endpoint Company
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011209/
• Create a plan for the locations of your Intercoms.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
Network
instructions.
Cable
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Ground
Wire
Parts
(1) Intercom Assembly
Contacting CyberData
Corporate Headquarters
CyberData Corporation
3 Justin Court
Monterey, CA 93940, USA
Phone: 831-373-2601
Fax: 831-373-4193
http://www.cyberdata.net/
Quick Reference
Installation Quick Reference

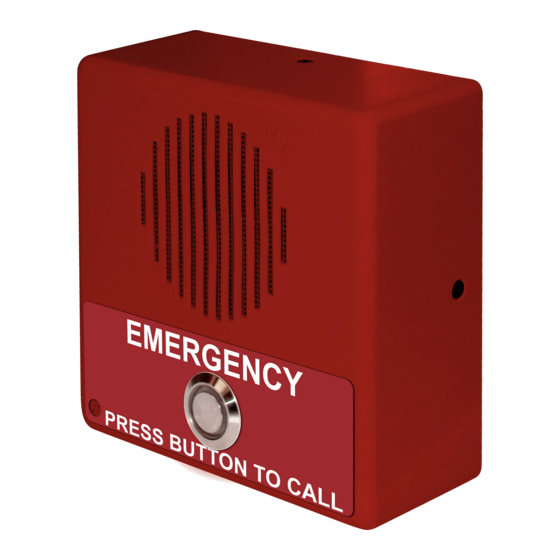

SIP Emergency Intercom
SIP Compliant
011209*
*Replaces the 011035 number.
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
(1) Wall Mounting Kit
(4) Sheet Metal Screw (4) Plastic Ribbed Anchor
Sales: (831) 373-2601 ext. 334
Support: 831-373-2601 ext. 333
Support Website: http://support.cyberdata.net/
RMA Department: (831) 373-2601 ext. 136
RMA Email: RMA@CyberData.net
RMA Status: http://support.cyberdata.net/
Warranty Information: http://support.cyberdata.net/
930810M © 2017, CyberData Corporation, ALL RIGHTS RESERVED
(1) Gang Box Mounting Kit
(4) #6-32 FlatHead Countersunk
Machine Screw
