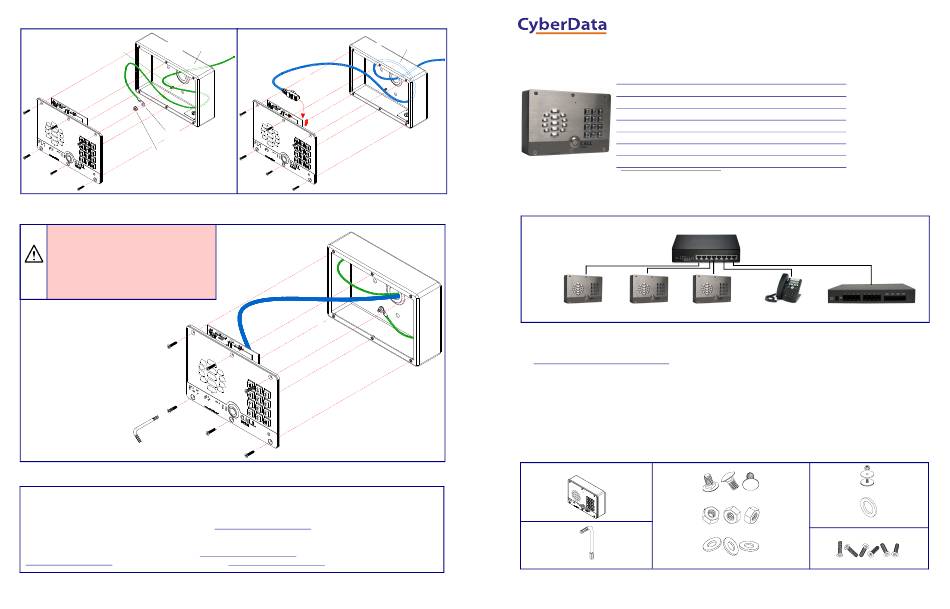

CyberData 011214 Installation Quick Reference

Connecting the Intercom (Service Loop Routing)
Ground Cable Installation
Route Cable(s) inside Gang Box to
Creates Service Loop
Ground Lug
Ground Cable
(Not Provided)
Faceplate &
#8 Nut
PCB Assembly
(to Ground Lug)
Inside Gang Box
Faceplate Mounting
Screw (6x)
Securing the Intercom
Caution
Equipment Hazard: Do not use an electric
or power screwdriver to fasten the face plate
and PCB assembly to the gang box. To prevent
over-torque damage to the gasket, do not apply
GENERAL ALERT
more than 10 inch-pounds force. Over-torquing
will cause the gasket to tear, risk moisture intrusion,
and effectively void the manufacturer's warranty.
Note: To mount the intercom, use methods
compliant with local electrical codes.
Torx Screws
Torx Key
Faceplate Mounting
Screw (6x)
Note: More installation and mounting
information is illustrated in the Operations Guide.
Contacting CyberData
Corporate Headquarters
Sales: (831) 373-2601 ext. 334
CyberData Corporation
Support: 831-373-2601 ext. 333
3 Justin Court
Support Website:
Monterey, CA 93940, USA
RMA Department: (831) 373-2601 ext. 136
Phone: 831-373-2601 RMA Email: RMA@CyberData.net
Fax: 831-373-4193 RMA Status:
http://www.cyberdata.net/ Warranty Information:
© 2017, CyberData Corporation, ALL RIGHTS RESERVED
Network Cable Installation
Route Cable(s) inside Gang Box to
Network Cable
(Not Provided)
J1
Faceplate &
PCB Assembly
Faceplate Mounting
Screw (6x)
Custom Enclosure
Network cable
and ground wire
(Not Provided)
Faceplate &
PCB Assembly
http://support.cyberdata.net/
http://support.cyberdata.net/
http://support.cyberdata.net/
930806J Quick Reference
The IP Endpoint Company
Creates Service Loop
Typical System Installation
*More installation and mounting
options are available in the
Operations Guide.
Intercom
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/voip/011214/
3-Gang Box
• Create a plan for the locations of your devices.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Intercom Parts
(1) Intercom Assembly
Mounting Component Security Torx Key
Quick Reference
Installation Quick Reference

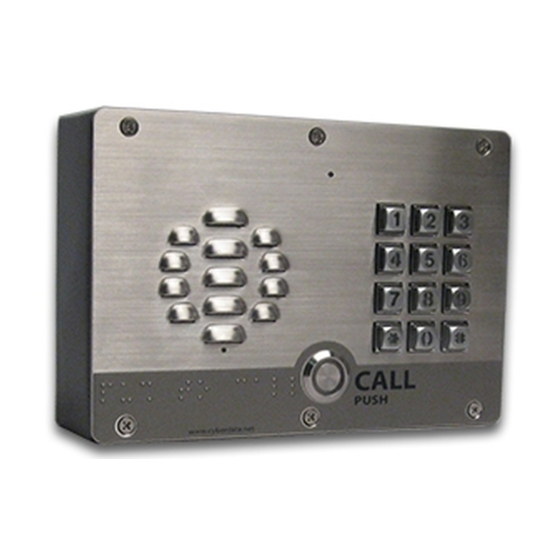

SIP Outdoor Intercom with Keypad
SIP Compliant
011214
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af Compliant Ethernet Switch
Intercom Intercom IP Phone
Carriage Bolt Bolts
Carriage Bolt Nuts
Carriage Bolt Washers
930806J © 2017, CyberData Corporation, ALL RIGHTS RESERVED
IP PBX Server
Accessories
531085B Hole Plug Assembly
Spacer for Half-inch Set Screw Connector
Accessory Kit
Accessory Kit Security Torx MS
